2009 Suzuki SFV650 Frame Body Cover Diagram

← All diagrams

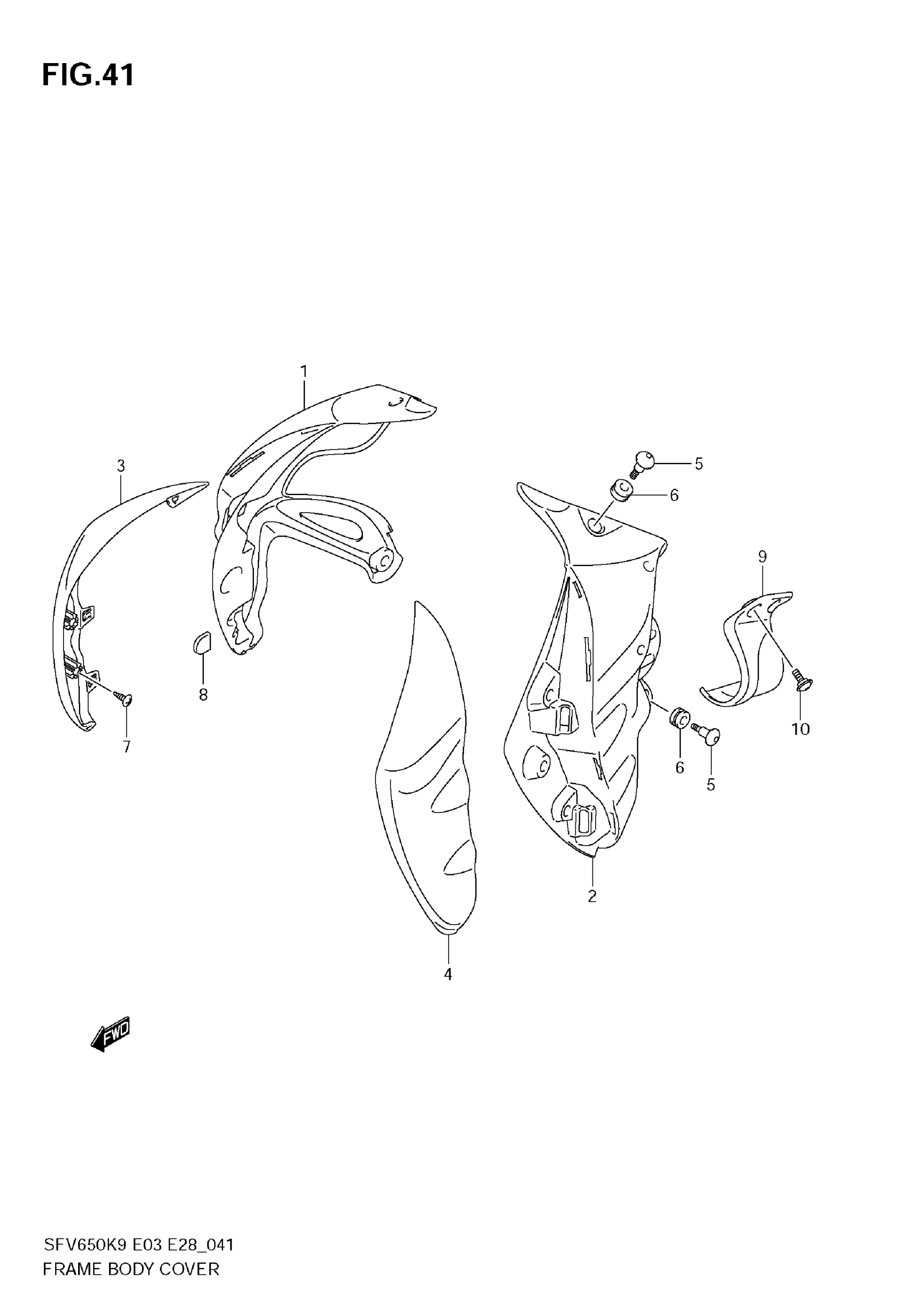

Find the part on the Frame Body Cover diagram for your 2009 Suzuki SFV650, then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

2009 Suzuki SFV650 Frame Body Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, FRAME BODY RH This part replaces 47531-44H00-291.

47531-44H00

1
Out of stock

2

COVER, FRAME BODY LH This part replaces 47541-44H00-291.

47541-44H00

1
Out of stock

3

COVER, BODY INNER RH (BLACK) | FOR YAY

47532-44H00-YAY

1
Out of stock

3

COVER, BODY INNER RH (WHITE) | FOR GDW

47532-44H00-YPA

—
Out of stock

3

COVER, BODY INNER RH (WHITE) | FOR GLR

47532-44H00-YBD

1
Out of stock

4

COVER, BODY INNER LH (BLACK) | FOR YAY

47542-44H00-YAY

1
Out of stock

4

COVER, BODY INNER LH (WHITE) | FOR GDW

47542-44H00-YPA

1
Out of stock

4

COVER, BODY INNER LH (WHITE) | FOR GLR

47542-44H00-YBD

1
Out of stock

5

SCREW, BODY COVER

09139-06126

4
Out of stock

6

CUSHION

09320-09016

4
Out of stock

7

SCREW

03541-0512B

6
Out of stock

8

CUSHION

09329-18001

4
Out of stock

9

COVER,FRAME BODY RR LH

47543-44H00

1
Out of stock

10

SCREW

09139-05064

2
Out of stock
← Frame Frame Cover →
