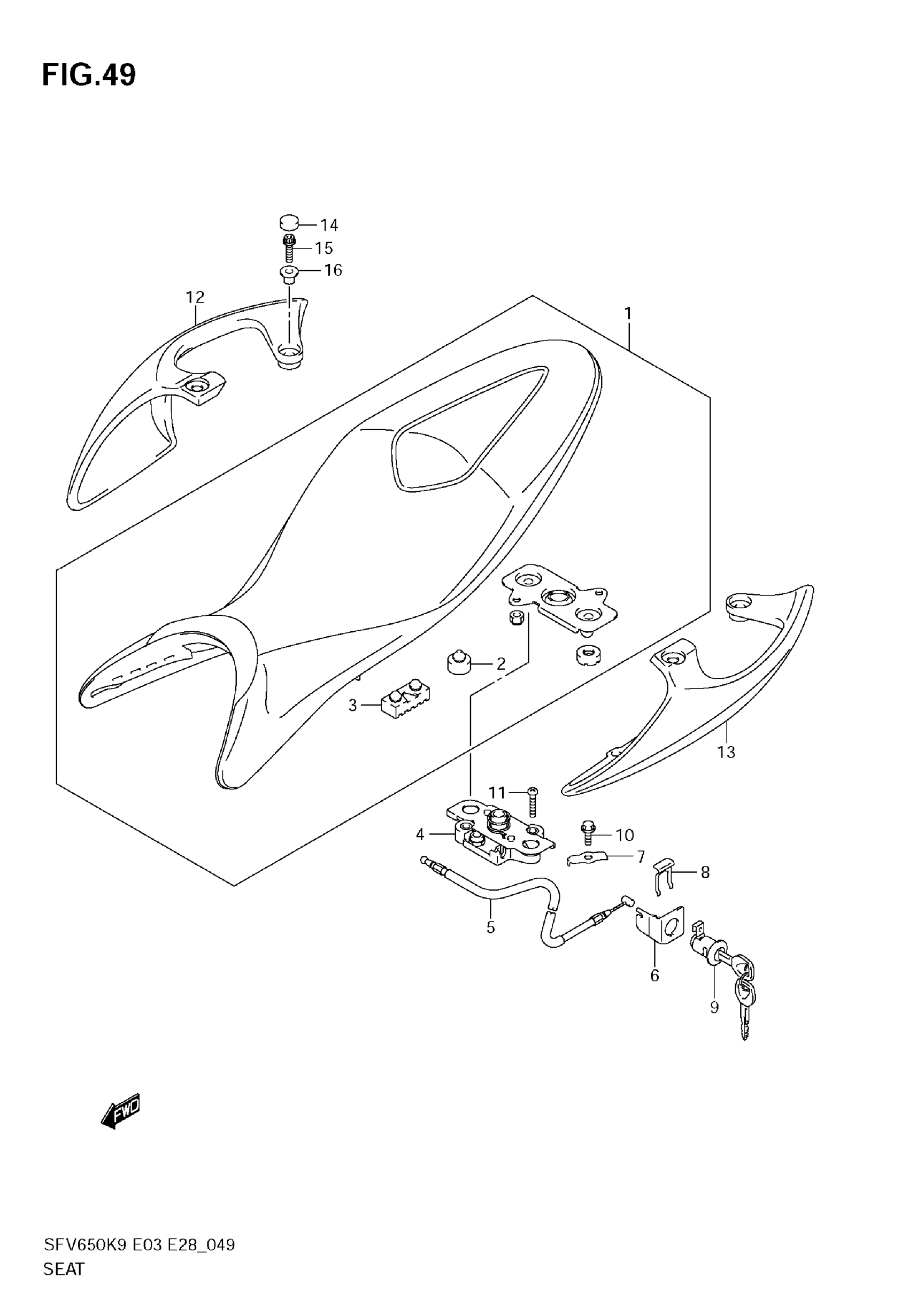

Suzuki SFV650 (2009) SEAT Diagram

#

Description
Price

1

SEAT ASSY | Includes Item(s) 2 - 3 This part replaces 45100-44H00-GZJ.

45100-44H31-GZJ

$473.55

2

CUSHION

09321-10011

$2.80

3

CUSHION

45149-42F00

$9.50

4

BRACKET, SEAT SUPPORT

45220-15H00

$161.37

5

CABLE, SEAT LOCK

45280-44H00

Unavailable

6

GUIDE, SEAT LOCK CABLE

45288-14F00

$5.14

7

GUIDE, SEAT LOCK CABLE

45288-44H00

Unavailable

8

PLATE, SEAT LOCK ASSY

45289-11F00

$5.93

9

LOCK ASSY, SEAT

95700-14810

$102.14

10

BOLT, SEAT LOCK CABLE

01547-0612A

$2.09

11

SCREW, SEAT SUPPORT BRK

02112-0630A

$1.86

12

HANDLE, PILLION RIDER RH (SILVER)

46211-44H00-YD8

$265.07

13

HANDLE, PILLION RIDER LH (SILVER) | E3,E28

46231-44H00-YD8

Unavailable

13

HANDLE, PILLION RIDER LH (SILVER) | E33

46231-44H10-YD8

Unavailable

14

CAP, PILLION RIDER HANDLE

46271-14G00

$8.52

15

BOLT, PILLION RIDER HANDLE FR

09106-08151

$4.02

16

WASHER, PILLION RIDER HANDLE

09169-08049

$3.90
