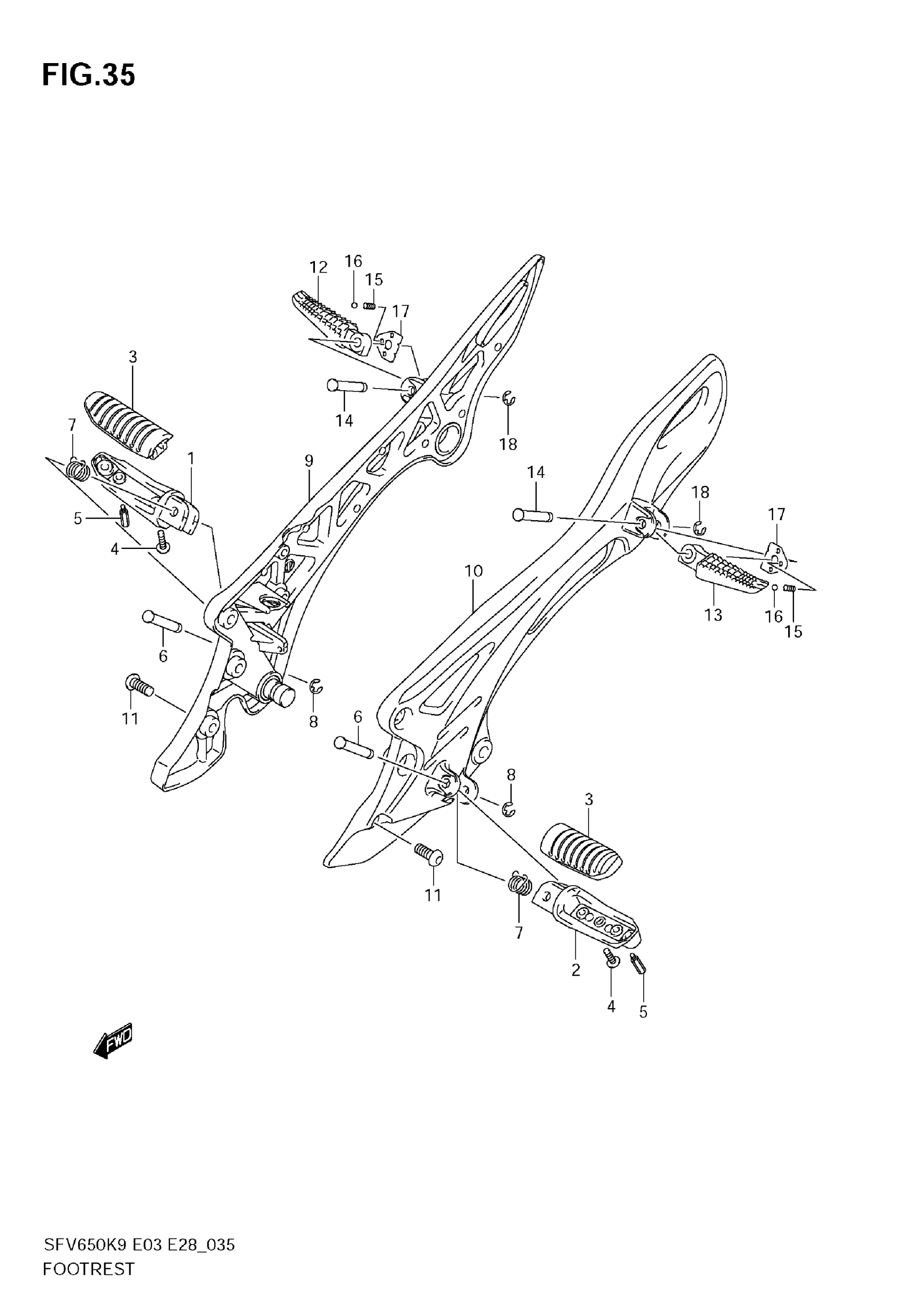

Suzuki SFV650 (2009) FOOTREST Diagram

#

Description
Price

1

BAR,FR FOOTREST,R

43511-44G10

$47.20

2

BAR,FR FOOTREST,L

43521-44G10

$47.20

3

RUBBER

43550-44G10

$29.22

4

SCREW

02142-0512A

$1.49

5

BOLT, BANK SENSOR

43576-48B30

$12.77

6

PIN

09208-08019

$2.79

7

SPRING

09448-14046

$4.17

8

E RING

08332-1106A

$1.49

9

BRACKET,FOOTRES This part replaces 43510-44H00.

43510-44H00-13L

Unavailable

10

BRACKET,FOOTRES This part replaces 43521-44H00.

43521-44H00-13L

Unavailable

11

BOLT

09106-08161

$3.70

12

BAR,PILLION FOOTREST,R This part replaces 43611-37H00.

43611-37H20

$44.65

13

BAR,PILLION FOOTREST,L This part replaces 43621-37H00.

43621-37H20

$43.18

14

PIN

09208-08020

$3.23

15

SPRING

09440-05003

$1.49

16

BALL

06111-07004

$1.49

17

PLATE,PILLION FOOTREST

43816-01H10

$7.85

18

E RING

08332-1106A

$1.49
