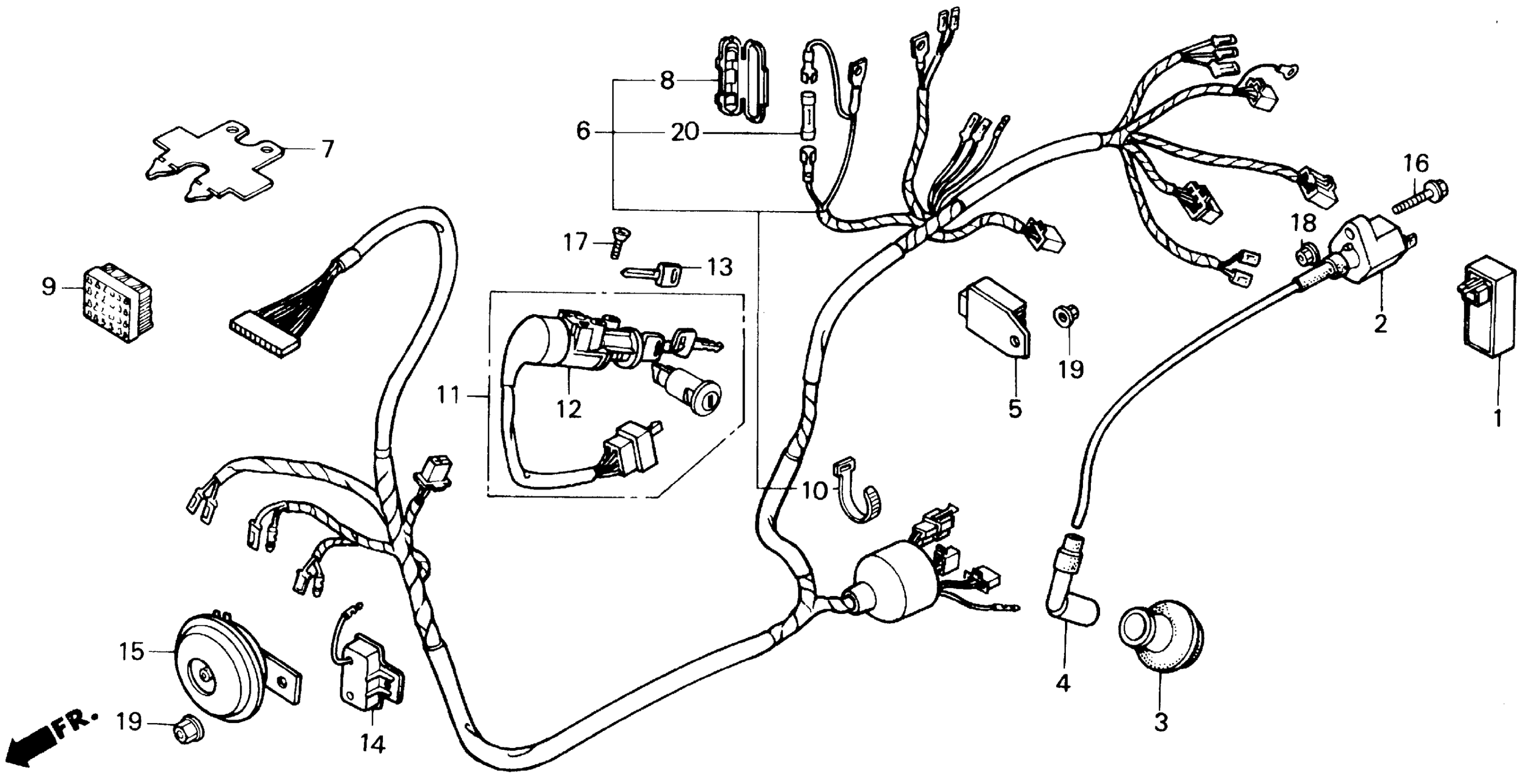

Honda SE50PAA (87) ELITE 50, JPN, VIN# JH2AF122-HS000001 TO JH2AF122-HS002000 WIRE HARNESS Diagram

#

Description
Price

1

MODULE, IGNITION CONTROL (CDI) (SHINDENGEN) | Use up to Frame SN HS002000 This part replaces 30410-GK8-781.

30410-GK8-784

Unavailable

1

MODULE, IGNITION CONTROL (CDI) (SHINDENGEN) This part replaces 30410-GK8-782.

30410-GK8-784

Unavailable

1

MODULE, IGNITION CONTROL (CDI) (SHINDENGEN) This part replaces 30410-GK8-783.

30410-GK8-784

Unavailable

1

MODULE, IGNITION CONTROL (CDI) (SHINDENGEN)

30410-GK8-784

Unavailable

2

COIL, IGNITION This part replaces 30510-GR1-000.

30510-GR2-405

$74.70

2

COIL, IGNITION

30510-GR2-405

$74.70

3

SEAL, IGNITION

30605-GR1-010

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-GN0-601.

30700-KE6-702

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR This part replaces 30700-GN0-602.

30700-KE6-702

Unavailable

4

CAP ASSY., NOISE SUPPRESSOR

30700-KE6-702

Unavailable

5

RECTIFIER, REGULATOR (SHINDENGEN) | Use up to Frame SN HS002000 This part replaces 31600-GN2-003.

31600-GW0-004

Unavailable

5

RECTIFIER, REGULATOR (SHINDENGEN)

31600-GW0-004

Unavailable

6

WIRE HARNESS

32100-GR1-670

Unavailable

7

PROTECTOR, HARNESS

32106-GR2-000

Unavailable

8

CASE, FUSE (10A)

32120-383-830

Unavailable

9

MULTI-CONNECTOR (10X3)

32150-MG2-003

Unavailable

10

BAND B1, CABLE

32161-404-610

$2.23

11

LOCK SET This part replaces 35010-GR1-670.

35010-GR1-671

Unavailable

11

LOCK SET

35010-GR1-671

Unavailable

12

SWITCH ASSY., COMBINATION & LOCK This part replaces 35100-GR1-670.

35100-GR1-671

Unavailable

12

SWITCH ASSY., COMBINATION & LOCK

35100-GR1-671

Unavailable

13

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-MM8-811.

35121-MR1-770

$9.74

13

KEY, BLANK (TYPE1) | (Optional).

35121-MR1-770

$9.74

13

KEY, BLANK (TYPE1) (KEY NO. AXX / BXX) | (Optional). This part replaces 35121-402-811.

35121-MR1-770

$9.74

13

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-MM8-811.

35122-MR1-770

$9.74

13

KEY, BLANK (TYPE2) | (Optional).

35122-MR1-770

$9.74

13

KEY, BLANK (TYPE2) (KEY NO. CXX / DXX) | (Optional). This part replaces 35122-402-811.

35122-MR1-770

$9.74

14

RESISTOR (5W)

35400-GR1-000

Unavailable

15

HORN

38110-GR1-670

Unavailable

16

BOLT, FLANGE (5X22) This part replaces 90112-GK8-000.

90112-GK8-010

$2.84

16

BOLT, FLANGE (5X22)

90112-GK8-010

$2.84

17

SCREW, U-LOCK FLAT (6X12)

90164-028-000

$1.80

18

NUT, FLANGE (5MM)

94050-05000

$1.49

19

NUT, FLANGE (6MM)

94050-06000

$1.49

20

FUSE A (10A)

98200-11000

$1.80
