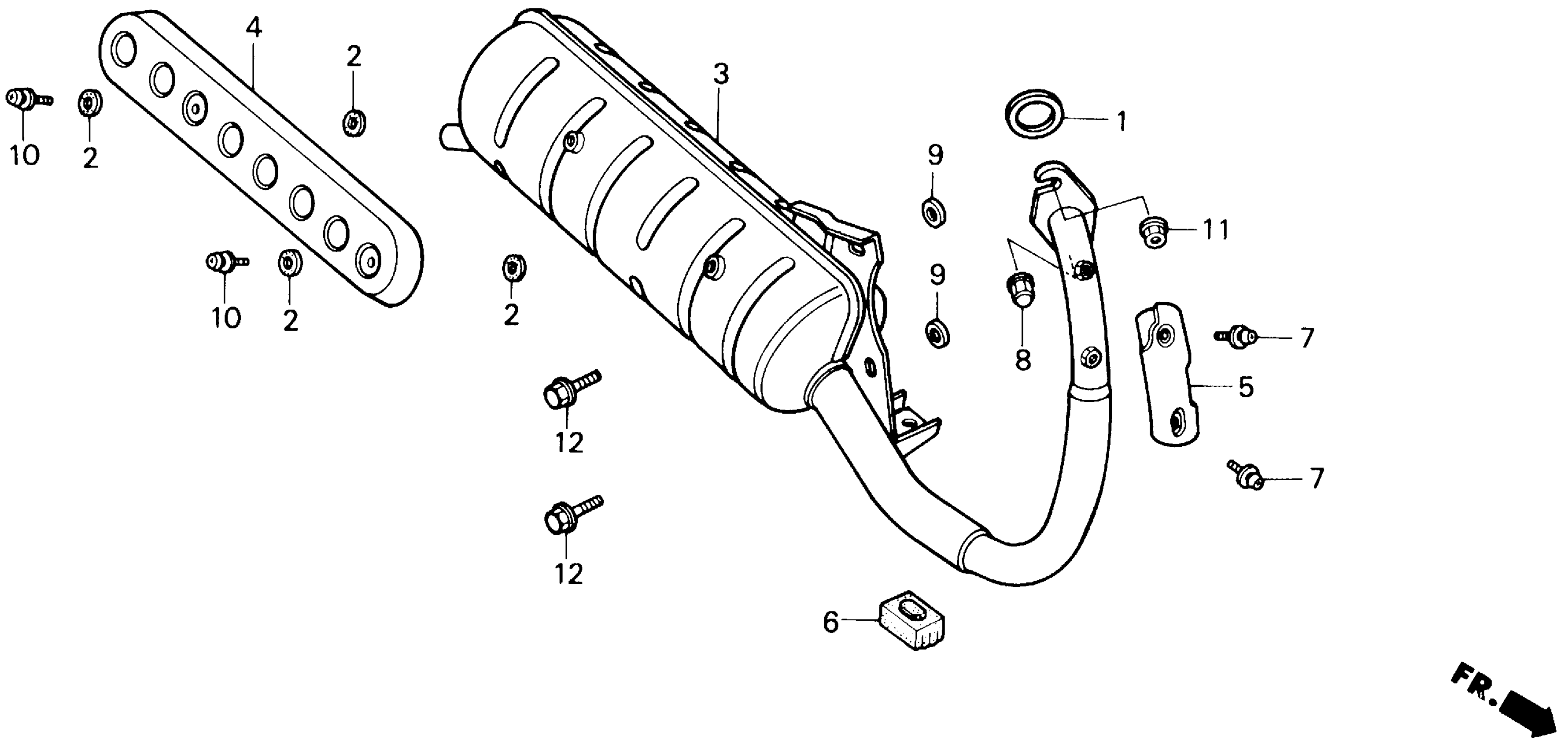

Honda SE50PAA (87) ELITE 50, JPN, VIN# JH2AF122-HS000001 TO JH2AF122-HS002000 MUFFLER Diagram

GASKET, EX. PIPE This part replaces 18291-GA7-000.

18292-GY1-610

$6.34

GASKET, EX. PIPE This part replaces 18291-147-000.

18292-GY1-610

$6.34

GASKET, EX. PIPE This part replaces 18291-147-306.

18292-GY1-610

$6.34

GASKET, EX. PIPE

18292-GY1-610

$6.34

GASKET, MUFFLER PROTECTOR

18292-GY1-860

$2.94

GASKET, MUFFLER PROTECTOR This part replaces 18292-KS3-920.

18292-GY1-860

$2.94

GASKET, MUFFLER PROTECTOR This part replaces 18292-147-000.

18292-GY1-860

$2.94

MUFFLER, EX. (NOT AVAILABLE)

18300-GR1-670

Unavailable

PROTECTOR, MUFFLER *NH105* (MAT BLACK)

18318-GK8-003ZE

Unavailable

PROTECTOR, EX. PIPE

18325-GR1-003

Unavailable

RUBBER, STAND STOPPER

50505-GR1-000

$4.78

SCREW-WASHER (5X6)

90049-GR1-000

Unavailable

NUT, CAP (6MM)

90308-SB0-000

Unavailable

COLLAR, MUFFLER MOUNTING

90501-GK8-870

$3.42

SCREW-WASHER (5X10)

93891-05010-07

$1.49

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (8X28) This part replaces 95700-08028-07.

95701-08028-07

$1.49

BOLT, FLANGE (8X28)

95701-08028-07

$1.49
