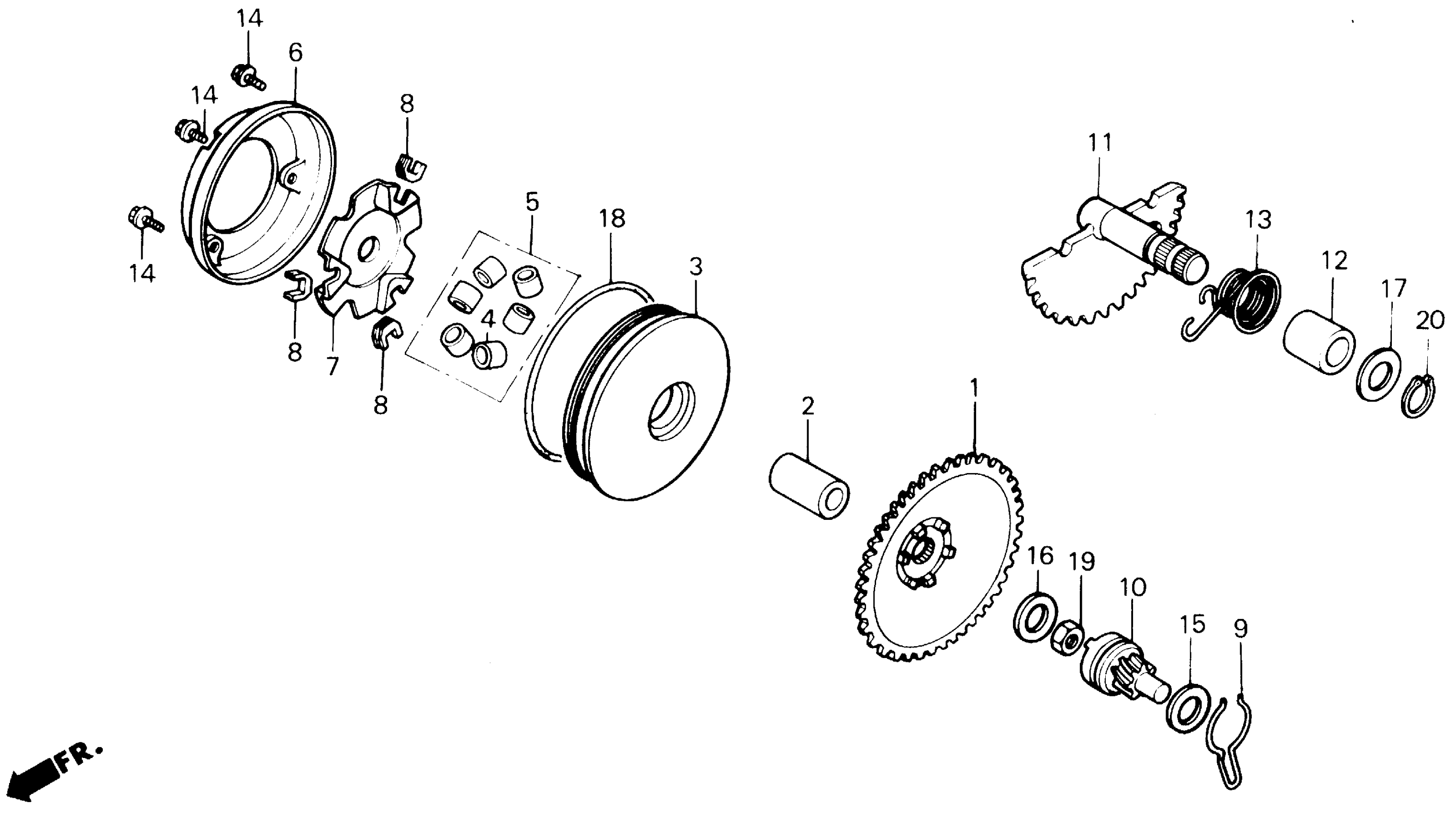

Honda SE50PAA (87) ELITE 50, JPN, VIN# JH2AF122-HS000001 TO JH2AF122-HS002000 DRIVE FACE Diagram

#

Description
Price

1

FACE, DRIVE (64T)

22102-GR1-000

Unavailable

2

BOSS, DRIVE FACE

22105-GR1-000

Unavailable

3

FACE, MOVABLE DRIVE This part replaces 22110-GR1-000.

22110-GW0-000

Unavailable

3

FACE, MOVABLE DRIVE

22110-GW0-000

Unavailable

4

ROLLER, WEIGHT

22121-GN2-621

Unavailable

6

SEAL, MOVABLE FACE This part replaces 22126-GR1-000.

22126-GR1-010

Unavailable

6

SEAL, MOVABLE FACE

22126-GR1-010

Unavailable

7

PLATE, RAMP (TYPE11)

22131-GN2-620

Unavailable

8

PIECE, SLIDE

22132-GN2-000

$4.00

9

SPRING, STARTER GEAR FRICTION

28223-GM9-010

Unavailable

10

GEAR, KICK DRIVEN (7T)

28230-GN2-600

Unavailable

11

SPINDLE, KICK STARTER (42T)

28250-GN2-601

Unavailable

12

BUSH, KICK SPINDLE

28253-GN2-601

$9.13

13

SPRING, KICK RETURN (CHUO HATSUJO)

28281-GN2-602

Unavailable

14

BOLT-WASHER (4X10) This part replaces 90005-187-000.

90005-GAH-600

$1.62

15

WASHER, THRUST (10MM) This part replaces 90412-329-000.

90412-KZL-840

$1.49

16

WASHER, SPECIAL (10X18)

90426-GW0-730

$3.49

16

WASHER, SPECIAL (10X18) This part replaces 90426-001-000.

90426-GW0-730

$3.49

17

WASHER (14MM) This part replaces 90451-GN2-600.

90451-GBL-870

$2.92

18

O-RING (78X2.5)

91302-187-000

Unavailable

19

NUT, FLANGE (10MM) (NOT AVAILABLE) | Use from Engine SN HS002001

90308-GW0-000

Unavailable

19

NUT, HEX. (10MM) | Use up to Engine SN HS002000

94002-10200-0S

$1.49

20

CIRCLIP (OUTER) (14MM)

94511-14000

$1.49
