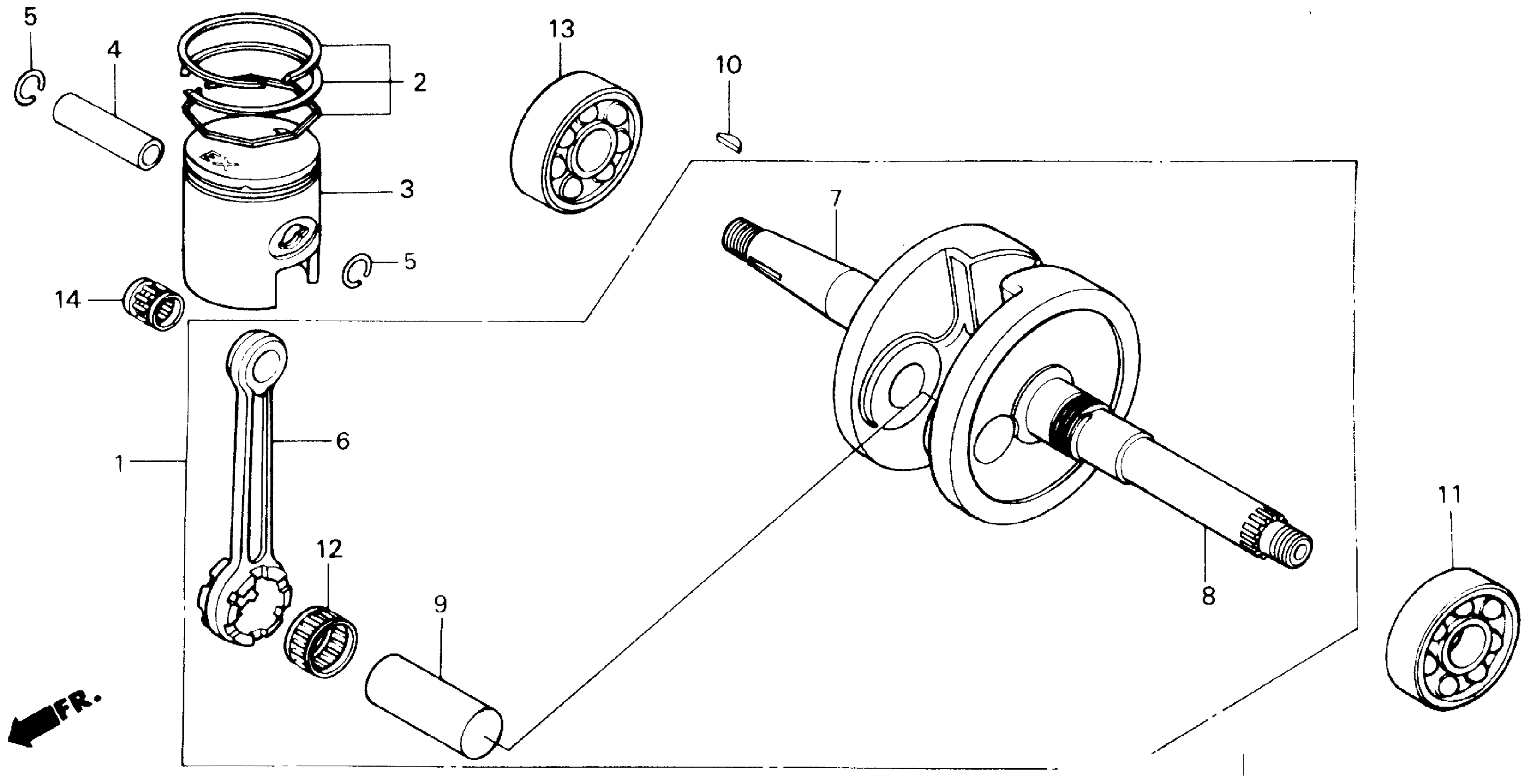

Honda SE50PAA (87) ELITE 50, JPN, VIN# JH2AF122-HS000001 TO JH2AF122-HS002000 CRANKSHAFT Diagram

#

Description
Price

1

CRANKSHAFT

13000-GR1-000

Unavailable

2

RING SET, PISTON

13011-GS7-305

Unavailable

2

RING SET, PISTON (OS 0.25) (NIPPON) | (Optional).

13012-GR1-306

Unavailable

2

RING SET, PISTON (OS 0.50) (NIPPON) | (Optional).

13013-GR1-306

Unavailable

3

PISTON B This part replaces 13101-GS7-000.

13101-GS7-505

Unavailable

3

PISTON

13101-GS7-505

Unavailable

3

PISTON (OS 0.25) | (Optional).

13106-GN2-306

Unavailable

3

PISTON (OS 0.50) | (Optional).

13107-GN2-306

Unavailable

4

PIN, PISTON This part replaces 13111-GK8-000.

13111-GS7-000

$9.55

4

PIN, PISTON

13111-GS7-000

$9.55

5

CLIP, PISTON PIN (10MM)

13115-147-000

$2.11

6

ROD, CONNECTING

13201-GS7-300

Unavailable

7

CRANKSHAFT, R.

13311-GR1-300

Unavailable

8

CRANKSHAFT, L.

13321-GN2-600

Unavailable

9

PIN, CRANK | Use from Engine SN HS002001 This part replaces 13381-GR1-300.

13381-GR1-702

Unavailable

9

PIN, CRANK | Use up to Engine SN HS002000 This part replaces 13381-GN2-600.

13381-GN2-601

Unavailable

9

PIN, CRANK | Use up to Engine SN HS002000

13381-GN2-601

Unavailable

10

KEY, WOODRUFF (3MM)

90741-035-000

$4.19

11

BEARING, SPECIAL RADIAL BALL (6204) (NTN) This part replaces 91001-GM4-013.

91001-GM4-033

$27.94

11

BEARING, SPECIAL RADIAL BALL (6204) (NTN) This part replaces 91001-GM4-023.

91001-GM4-033

$27.94

11

BEARING, RADIAL BALL (6204)

91001-GM4-033

$27.94

12

BEARING, CONNECTING ROD BIG END (RED) (TOYO) This part replaces 91001-122-004.

91001-122-008

Unavailable

12

BEARING, CONNECTING ROD BIG END (RED) (TOYO)

91001-122-008

Unavailable

12

BEARING, CONNECTING ROD BIG END (BLUE) (TOYO) This part replaces 91002-122-004.

91002-122-008

Unavailable

12

BEARING, CONNECTING ROD BIG END (BLUE) (TOYO)

91002-122-008

Unavailable

12

BEARING, CONNECTING ROD BIG END (WHITE) (TOYO) This part replaces 91003-122-004.

91003-122-008

Unavailable

12

BEARING, CONNECTING ROD BIG END (WHITE) (TOYO)

91003-122-008

Unavailable

13

BEARING, RADIAL BALL | Use up to Engine SN HS002000 This part replaces 91004-GJ5-003.

91004-GJ5-023

$23.99

13

BEARING, RADIAL BALL This part replaces 91004-GJ5-013.

91004-GJ5-023

$23.99

13

BEARING, RADIAL BALL

91004-GJ5-023

$23.99

14

BEARING, CONNECTING ROD SMALL END (TOYO)

91102-GC7-013

$14.00
