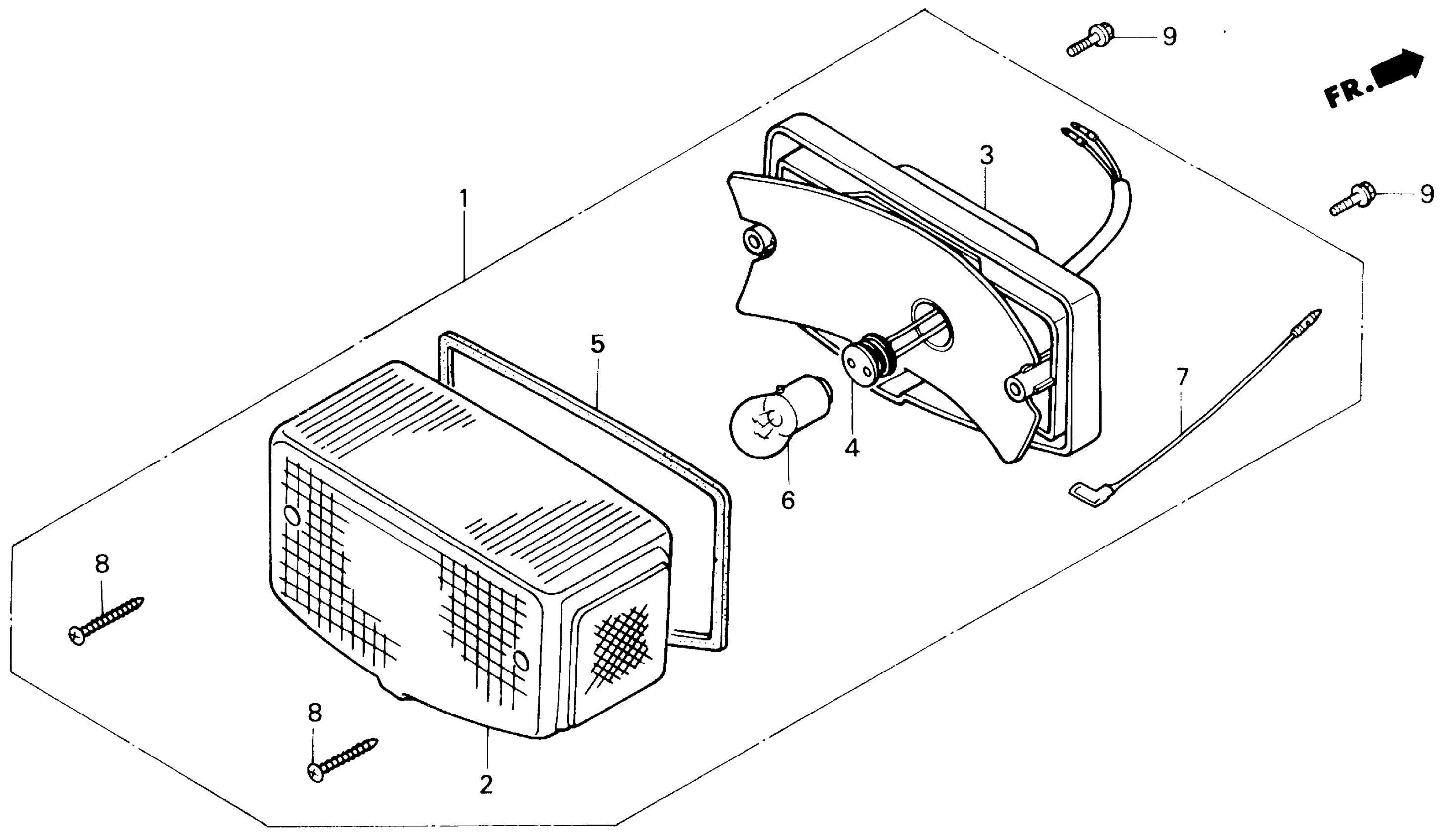

Honda SE50PA (87) ELITE 50, JPN, VIN# JH2AF121-HS000001 TO JH2AF121-HS012411 TAILLIGHT Diagram

#

Description

Price

1

TAILLIGHT UNIT This part replaces 33701-GR1-670.

33701-MF8-770

$102.50

1

TAILLIGHT UNIT

33701-MF8-770

$102.50

2

LENS, TAILLIGHT

33702-MF8-671

Unavailable

3

BASE, TAILLIGHT

33703-MC4-671

Unavailable

4

WIRE, TAILLIGHT

33708-MF8-770

Unavailable

5

GASKET, TAILLIGHT LENS

33709-KB7-003

$4.02

6

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY)

34906-MG9-771

$3.95

6

BULB, TAILLIGHT (12V27/7W) (2057HD) (STANLEY) This part replaces 34906-341-671.

34906-MG9-771

$3.95

7

CABLE, GROUND

32102-MF8-770

Unavailable

7

CABLE, GROUND This part replaces 38307-353-000.

32102-MF8-770

Unavailable

8

SCREW, TAPPING (4X40)

90105-GA7-003

$2.62

9

BOLT, FLANGE (5X9)

90508-GC8-000

$4.16
