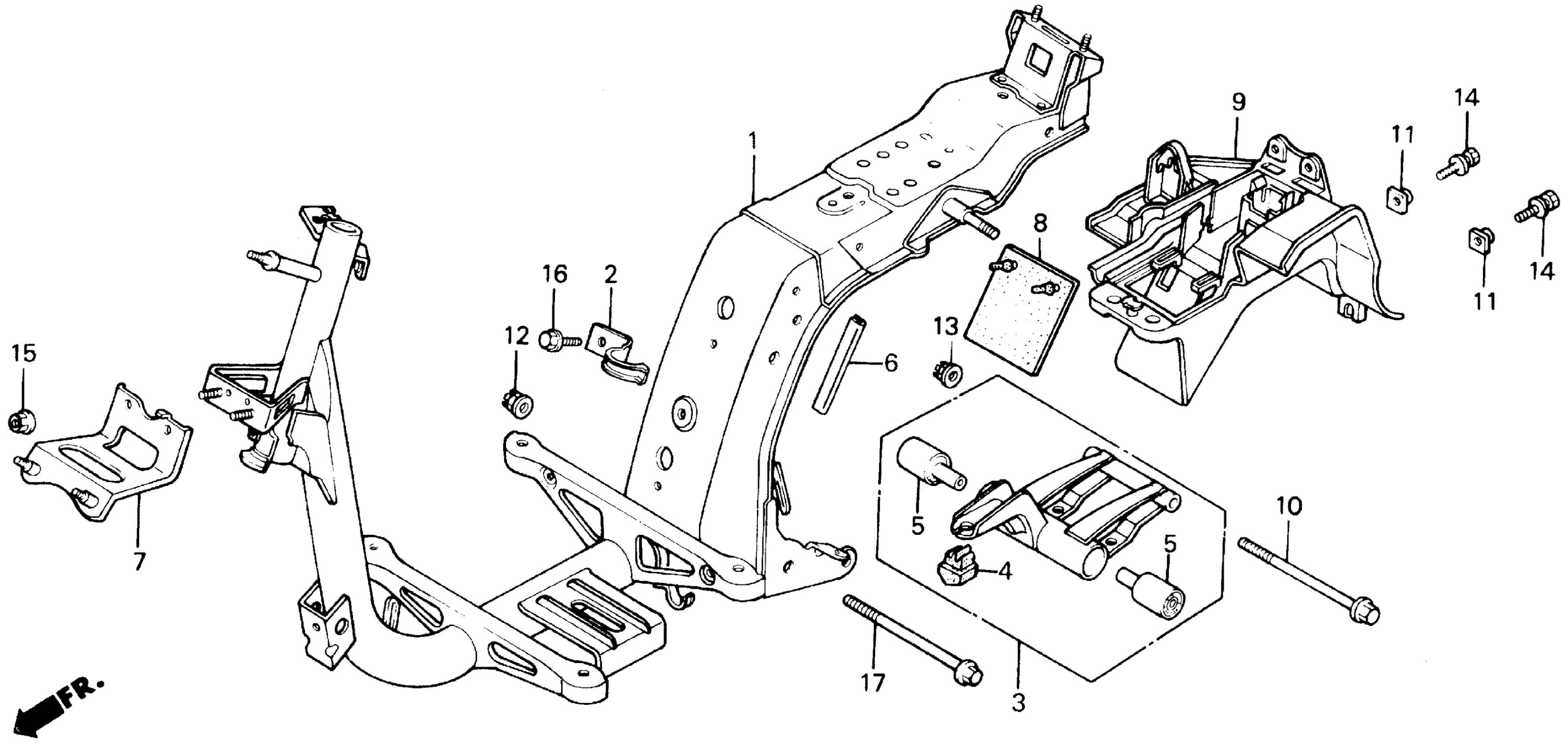

Honda SE50PA (87) ELITE 50, JPN, VIN# JH2AF121-HS000001 TO JH2AF121-HS012411 FRAME Diagram

FRAME *NH1* (BLACK)

50100-GR1-671ZA

Unavailable

HOLDER, JUNCTION

50134-GR1-000

Unavailable

LINK ASSY., ENGINE HANGER (NOT AVAILABLE)

50350-GR1-010

Unavailable

RUBBER, LINK STOPPER (NOT AVAILABLE)

50352-GR1-000

Unavailable

BUSH, ENGINE HANGER RUBBER

50353-GE8-000

Unavailable

TRIM, OPENING

50358-GF0-000

Unavailable

STAY, FR. COVER SETTING

64315-GR1-671

Unavailable

FENDER, RR. (INNER) This part replaces 80105-GR1-711.

80105-GR1-712

Unavailable

FENDER, RR. (INNER)

80105-GR1-712

Unavailable

BOLT, FLANGE (8X145)

90021-ZB0-000

Unavailable

NUT, SPECIAL (6X7)

61304-958-003

$3.24

NUT, SPECIAL (6X7) This part replaces 90301-471-000.

61304-958-003

$3.24

NUT, AXLE (10MM)

90304-GA6-003

$2.89

NUT, FLANGE (8MM)

90309-428-731

$3.35

BOLT-WASHER (6X16)

93404-06016-00

$1.55

BOLT-WASHER (6X16) This part replaces 93494-06016-00.

93404-06016-00

$1.55

NUT, FLANGE (6MM)

94050-06000

$1.49

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

BOLT, FLANGE (6X12)

95701-06012-00

$1.62

BOLT, FLANGE (10X140)

95800-10140-00

Unavailable
