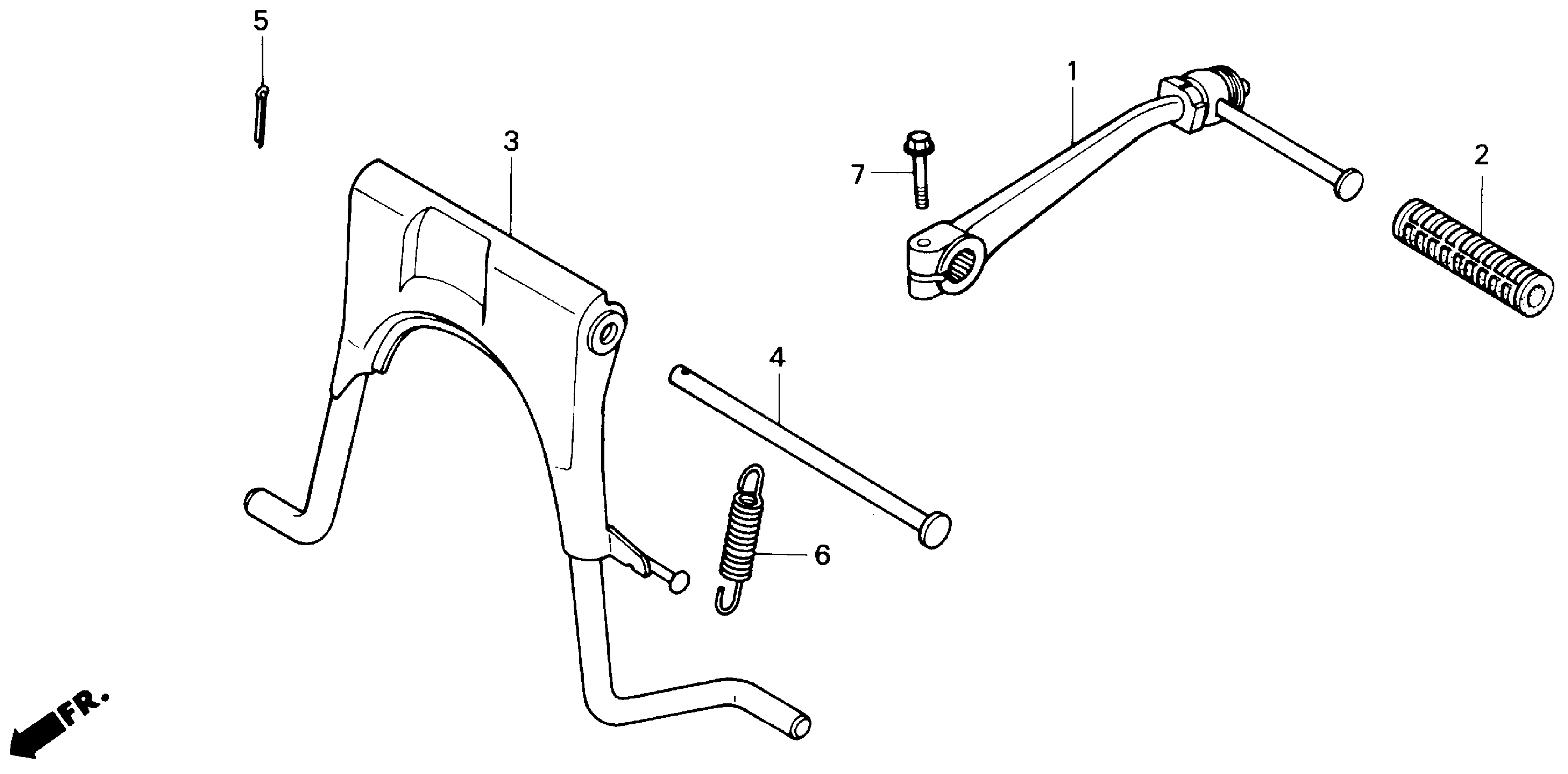

Honda SE50A (87) ELITE 50 S, JPN, VIN# JH2AF120-HS000001 TO JH2AF120-HS017850 STAND Diagram

#

Description

Price

1

ARM, KICK STARTER This part replaces 28300-GN2-930.

28300-GR1-750

Unavailable

2

RUBBER, KICK STARTER

28311-GN2-930

Unavailable

3

STAND, MAIN

50500-GR1-710

Unavailable

4

SHAFT, MAIN STAND

50503-GR1-000

Unavailable

5

PIN, SPLIT (2.5X30) This part replaces 94201-25200.

94201-25300

$0.94

5

PIN, SPLIT (2.5X30) This part replaces 94201-25250.

94201-25300

$0.94

5

PIN, COTTER (2.5MM)

94201-25300

$0.94

6

SPRING D, MAIN STAND

95014-71402

$2.26

7

BOLT, FLANGE (6X22) This part replaces 95700-06022-07.

95701-06022-07

$0.86

7

BOLT, FLANGE (6X22)

95701-06022-07

$0.86
