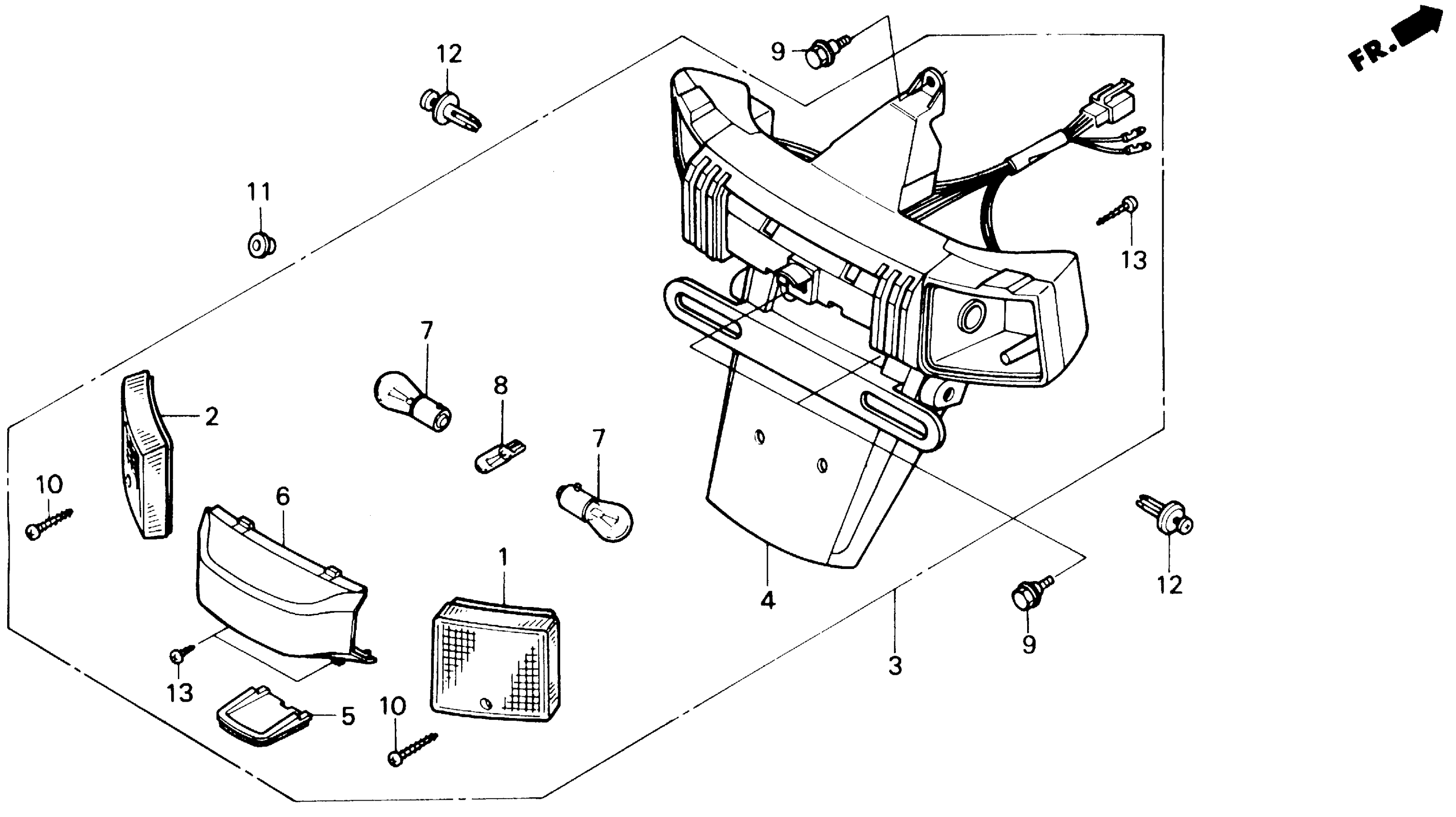

Honda SE50A (87) ELITE 50 S, JPN, VIN# JH2AF120-HS000001 TO JH2AF120-HS017850 REAR COMBINATION LIGHT Diagram

LENS, R. FR. TURN SIGNAL

33402-GN2-672

$11.20

LENS, L. FR. TURN SIGNAL

33452-GN2-672

$11.20

LIGHT ASSY., RR. COMBINATION (NOT AVAILABLE)

33700-GR1-672

Unavailable

BASE, RR. COMBINATION (NOT AVAILABLE)

33702-GR1-672

Unavailable

LENS, LICENSE (NOT AVAILABLE)

33705-GR1-671

Unavailable

COVER, RR. COMBINATION BASE

33706-GR1-672

Unavailable

BULB, TURN SIGNAL (12V23W32CP) (1073) (STANLEY)

34905-268-671

$2.79

BULB (14V 3.4W) (NS) This part replaces 34908-GA7-701.

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS) This part replaces 37102-567-009.

37237-SA5-003

$4.17

BULB (12V3.4W2CP) (158) (NS)

37237-SA5-003

$4.17

BULB (14V 3.4W) (NS) This part replaces 37237-SA5-004.

37237-SA5-003

$4.17

BOLT, FLANGE (6MM)

90111-162-000

$2.89

SCREW, TAPPING (3X28)

90156-GB0-900

Unavailable

WASHER, CHAIN CASE SETTING

90522-028-000

$2.75

CLIP, BODY COVER

90683-GR1-003

$2.92

SCREW, TAPPING (4X16)

93901-34420

$1.49
