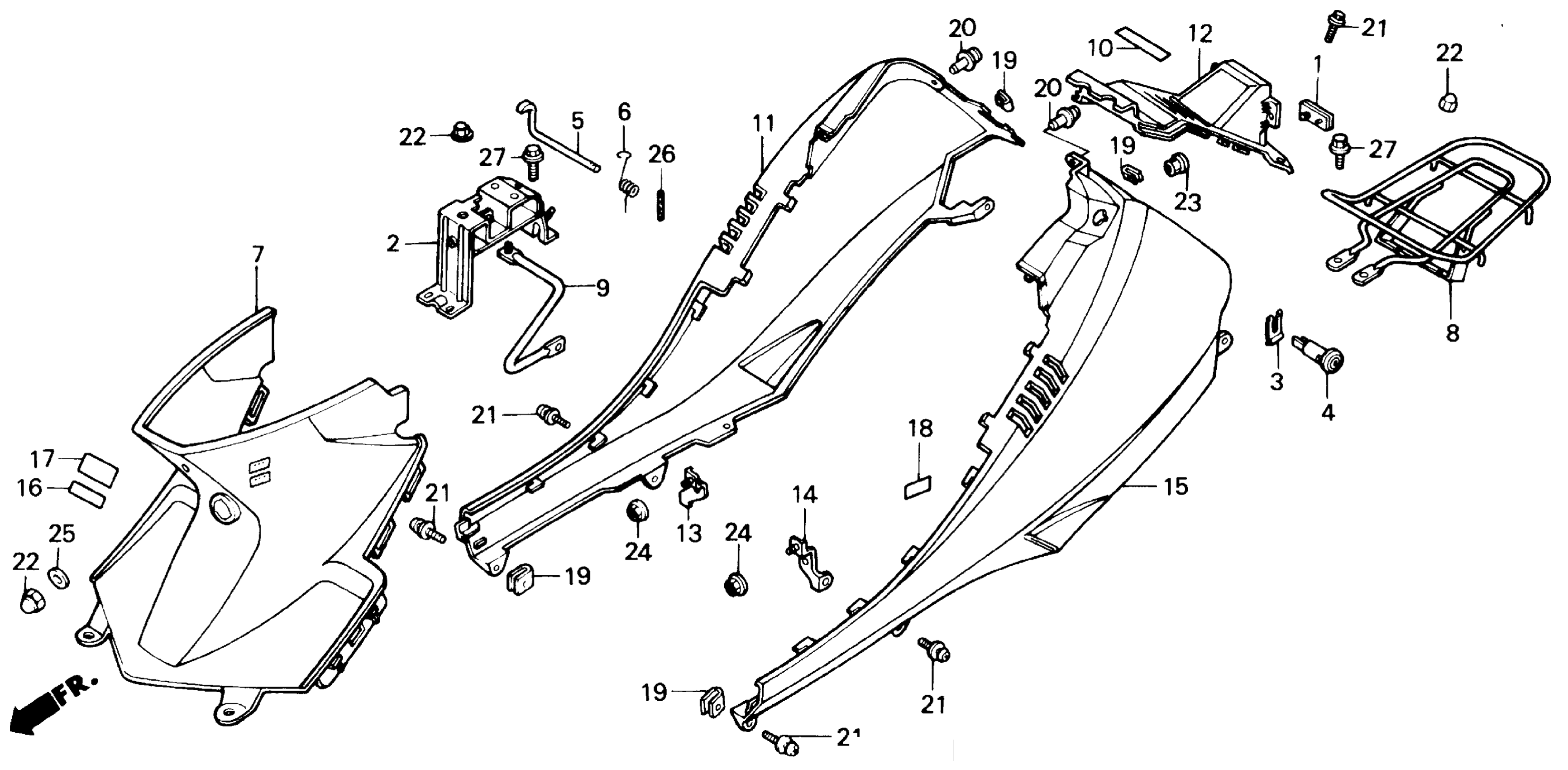

Honda SE50A (87) ELITE 50 S, JPN, VIN# JH2AF120-HS000001 TO JH2AF120-HS017850 LUGGAGE CARRIER Diagram

#

Description
Price

1

REFLECTOR, RR. REFLEX

33742-MB2-672

$22.05

2

BRACKET, CARRIER | Use up to Frame SN HS010546 This part replaces 50355-GR1-020.

50355-GR1-030

Unavailable

2

BRACKET, CARRIER

50355-GR1-030

Unavailable

3

SPRING, LOCK KEY SETTING

75581-673-000

$5.13

4

LOCK ASSY., SEAT

77230-GR1-000

Unavailable

5

ARM, SEAT LOCK

77231-GR1-000

Unavailable

6

SPRING, SEAT CATCH

77232-GR1-010

Unavailable

7

COVER, CENTER BODY *RP112* (IRIS PURPLE) (NOT AVAILABLE)

80150-GR1-670ZA

Unavailable

7

COVER, CENTER BODY *NH154* (TASMAN GRAY)

80150-GR1-670ZB

Unavailable

8

CARRIER, LUGGAGE (NOT AVAILABLE)

81200-GR1-010

Unavailable

9

GRIP, SIDE

81205-GR1-000

Unavailable

10

LABEL, RR. CARRIER WARNING *NH0* (CHAMPIONSHIP WHITE)

81220-GN2-660ZA

Unavailable

11

COVER, R. BODY *NH1* This part replaces 83500-GR1-670ZA.

83500-GR1-506ZA

Unavailable

11

CVR, R. BODY *R110* This part replaces 83500-GR1-670ZB.

83500-GR1-506ZB

Unavailable

12

COVER, RR. *NH154* (TASMAN GRAY)

83502-GR1-670ZA

Unavailable

13

STAY, R. BODY COVER

83505-GR1-000

Unavailable

14

STAY, L. BODY COVER

83506-GR1-000

Unavailable

15

COVER, L. BODY *NH1* (WOL) (BLACK) (NOT AVAILABLE)

83600-GR1-670ZA

Unavailable

15

COVER, L. BODY *R110* (WOL) (MONZA RED)

83600-GR1-670ZB

Unavailable

16

LABEL B, CAUTION *NH1* (BLACK)

87509-GK8-670ZA

Unavailable

16

LABEL B, CAUTION *NH0* (CHAMPIONSHIP WHITE)

87509-GK8-670ZB

Unavailable

17

LABEL, ACCESSORIES & LOADING (TYPE1)

87512-GR1-670ZA

Unavailable

18

MARK, MAINTENANCE CAUTION *NH0* (CHAMPIONSHIP WHITE) (NOT AVAILABLE)

87542-GN2-600ZA

Unavailable

18

MARK, MAINTENANCE CAUTION *NH1* (BLACK)

87542-GN2-600ZB

Unavailable

19

NUT, CLIP (5MM)

90677-GR1-003

$4.27

20

CLIP, BODY COVER

90683-GR1-003

$2.92

21

SCREW-WASHER (5X16)

93891-05016-07

$1.49

22

NUT, CAP (6MM) This part replaces 94021-06000-0S.

94021-06020

$1.73

22

NUT, CAP (6MM)

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

22

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

23

NUT, FLANGE (5MM)

94050-05000

$1.49

24

NUT, FLANGE (6MM)

94050-06000

$1.49

25

WASHER, PLAIN (6MM)

94103-06000

$1.49

26

PIN, SPRING (2.5X30) | Use from Frame SN HS012067

90751-GR1-750

Unavailable

26

PIN, SPRING (2X18) | Use up to Frame SN HS012066

94305-25251

Unavailable

27

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

27

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
