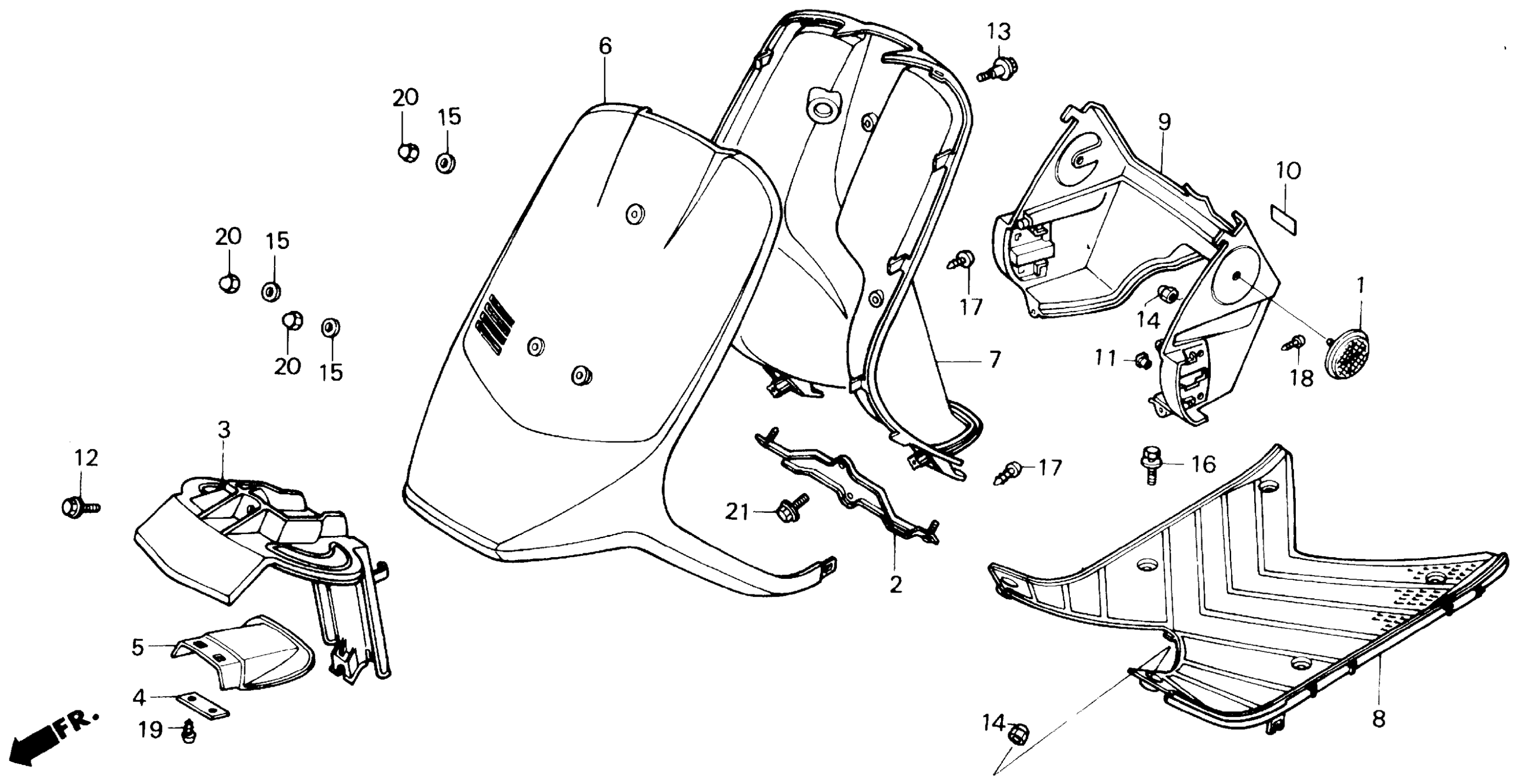

Honda SE50A (87) ELITE 50 S, JPN, VIN# JH2AF120-HS000001 TO JH2AF120-HS017850 FRONT COVER Diagram

#

Description
Price

1

REFLECTOR, FR. REFLEX This part replaces 33741-413-013.

33742-HB9-641

$13.14

1

REFLECTOR, FR. REFLEX

33742-HB9-641

$13.14

2

BAR, FR. COVER SETTING

50365-GR1-000

Unavailable

3

SPLASH GUARD, FR.

61100-GR1-010

Unavailable

4

STAY, SPLASH GUARD

61104-GM4-000

Unavailable

5

SPLASH GUARD, FR.

61105-187-000

Unavailable

6

COVER, FR. *NH1* (WOL) (BLACK) (NOT AVAILABLE)

64310-GR1-710ZD

Unavailable

6

COVER, FR. *R110* (WOL) (MONZA RED) (NOT AVAILABLE)

64310-GR1-710ZL

Unavailable

7

COVER, FR. (INNER) *RP112* (IRIS PURPLE)

64311-GR1-670ZA

Unavailable

7

COVER, FR. (INNER) *NH154* (TASMAN GRAY)

64311-GR1-670ZB

Unavailable

8

PANEL, FLOOR *NH154* (TASMAN GRAY) (NOT AVAILABLE) | Use up to Frame SN HS011226 This part replaces 64312-GR1-000ZA.

64312-GR1-010ZA

Unavailable

8

PANEL, FLOOR *RP112* (IRIS PURPLE) | Use up to Frame SN HS011226 This part replaces 64312-GR1-000ZH.

64312-GR1-010ZC

Unavailable

8

PANEL, FLOOR *NH154* (TASMAN GRAY) (NOT AVAILABLE) | Use from Frame SN HS011227

64312-GR1-010ZA

Unavailable

8

PANEL, FLOOR *RP112* (IRIS PURPLE)

64312-GR1-010ZC

Unavailable

9

RACK, FR. (INNER) *RP112* (IRIS PURPLE) (NOT AVAILABLE)

81130-GR1-670ZA

Unavailable

9

RACK, FR. (INNER) *NH154* (TASMAN GRAY) (NOT AVAILABLE)

81130-GR1-670ZB

Unavailable

10

LABEL, GLOVE BOX CAPACITY *NH0* (CHAMPIONSHIP WHITE)

81219-GN2-660ZA

Unavailable

10

LABEL, GLOVE BOX CAPACITY *NH1* (BLACK)

81219-GN2-660ZB

Unavailable

11

NUT, SPECIAL (5MM)

90016-ZA5-000

$3.80

12

BOLT, FLANGE (6MM)

90111-162-000

$2.89

13

BOLT, SPECIAL (5MM)

90112-GC3-000

$2.97

14

NUT, OPEN STAY (6MM)

90301-693-000

$6.36

15

WASHER (6X17)

90474-704-000

$1.49

16

BOLT-WASHER (6X22) This part replaces 93494-06022-00.

93404-06022-00

$1.49

16

BOLT-WASHER (6X22) This part replaces 93494-06022-07.

93404-06022-00

$1.49

17

SCREW, TAPPING (4X12)

93903-34380

$2.18

18

SCREW, TAPPING (4X25)

93903-34680

$1.49

19

SCREW, TAPPING (5X16)

93904-25320

$1.49

20

NUT, CAP (6MM)

94021-06020

$1.73

20

NUT, CAP (6MM) This part replaces 94021-06020-0S.

94021-06020

$1.73

20

NUT, CAP (6MM) This part replaces 94022-06020.

94021-06020

$1.73

21

BOLT, FLANGE (6X12) This part replaces 95700-06012-00.

95701-06012-00

$1.62

21

BOLT, FLANGE (6X12)

95701-06012-00

$1.62
