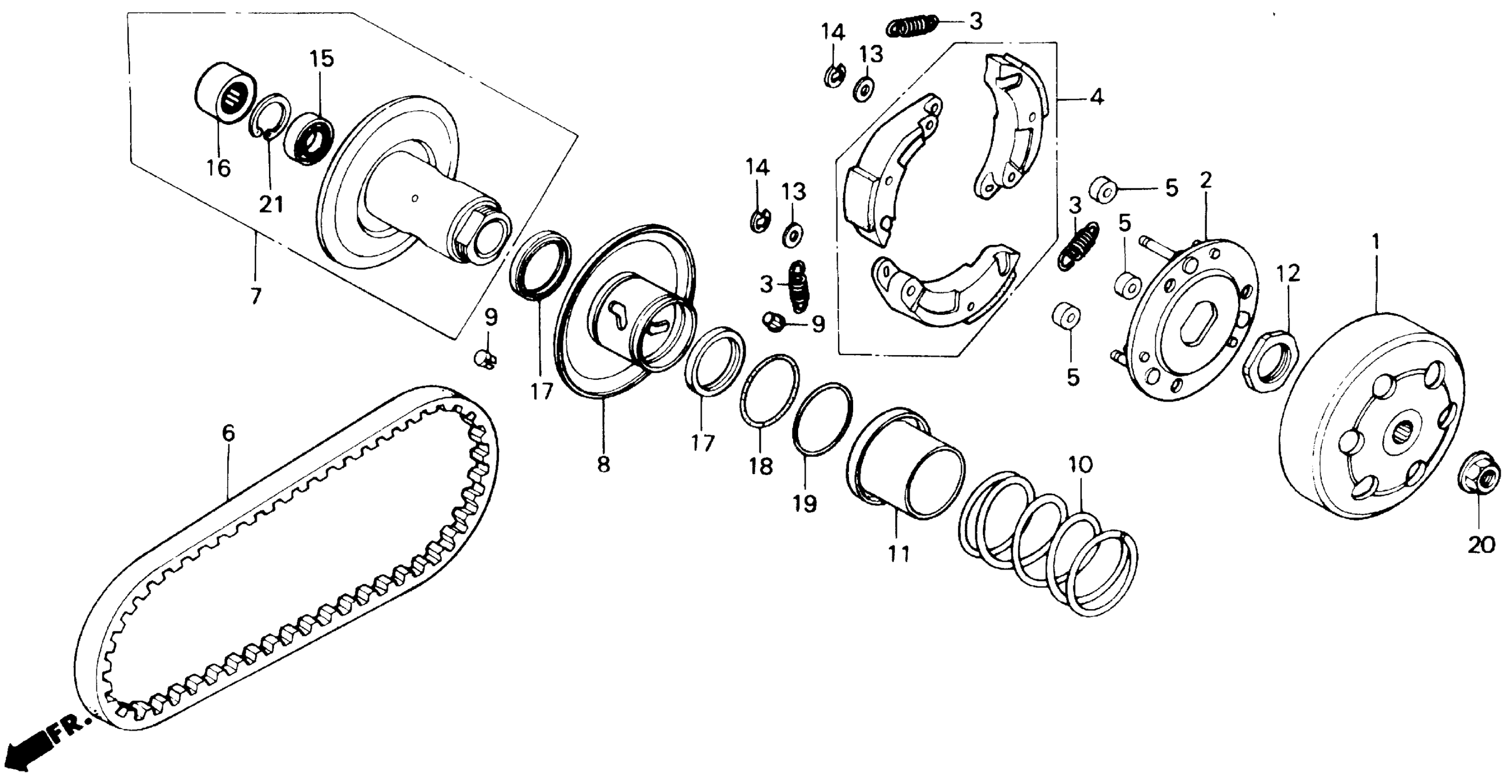

Honda SE50A (87) ELITE 50 S, JPN, VIN# JH2AF120-HS000001 TO JH2AF120-HS017850 DRIVEN FACE Diagram

#

Description
Price

1

CLUTCH (OUTER)

22100-GN2-000

Unavailable

2

PLATE, DRIVE

22350-GN2-000

Unavailable

3

SPRING, CLUTCH

22401-GC2-000

Unavailable

4

PLATE ASSY. SET, DRIVE

22300-GN2-305

Unavailable

4

PLATE ASSY. SET, DRIVE This part replaces 22535-GN2-305.

22300-GN2-305

Unavailable

4

PLATE ASSY. SET, DRIVE This part replaces 22535-GN2-315.

22300-GN2-305

Unavailable

5

RUBBER, CLUTCH DAMPER

22804-148-000

$2.97

6

BELT, DRIVE

23100-GG2-751

$52.02

6

BELT, DRIVE This part replaces 23100-GR1-003.

23100-GG2-751

$52.02

6

BELT, DRIVE This part replaces 23100-GZ5-003.

23100-GG2-751

$52.02

6

BELT, DRIVE This part replaces 23100-GZ5-013.

23100-GG2-751

$52.02

7

FACE SET, DRIVEN This part replaces 23205-GR1-305.

23205-GBL-305

Unavailable

7

FACE SET, DRIVEN This part replaces 23205-GR1-315.

23205-GBL-305

Unavailable

7

FACE SET, DRIVEN This part replaces 23205-GR1-325.

23205-GBL-305

Unavailable

8

FACE, MOVABLE DRIVEN This part replaces 23220-GR1-000.

23220-GCW-000

$40.13

9

PIN, GUIDE

23225-GN2-010

$4.08

10

SPRING, DRIVEN FACE

23233-GC2-000

Unavailable

11

COLLAR, SEAL

23237-GN2-000

$15.84

12

NUT, SPECIAL (28MM)

90202-187-000

$7.32

13

WASHER, THRUST (6MM)

90442-044-000

$2.21

14

CIRCLIP (6MM) This part replaces 90603-044-000.

90454-GB2-000

$1.79

15

BEARING, RADIAL BALL (6901U) (TOYO)

91001-GA7-701

$24.49

16

BEARING, NEEDLE (17X25X18)

91103-GR1-003

Unavailable

17

OIL SEAL (34X39X3) This part replaces 91211-GK8-003.

91211-GK8-013

$5.20

17

OIL SEAL (34X39X3)

91211-GK8-013

$5.20

18

O-RING (38.5X2)

91351-GR1-000

$2.92

19

O-RING, PINION CAP (36.7X1.9)

91351-642-000

$4.22

20

NUT, FLANGE (10MM)

94050-10000

$1.59

21

CIRCLIP (INNER) (24MM)

94520-24000

$1.49
