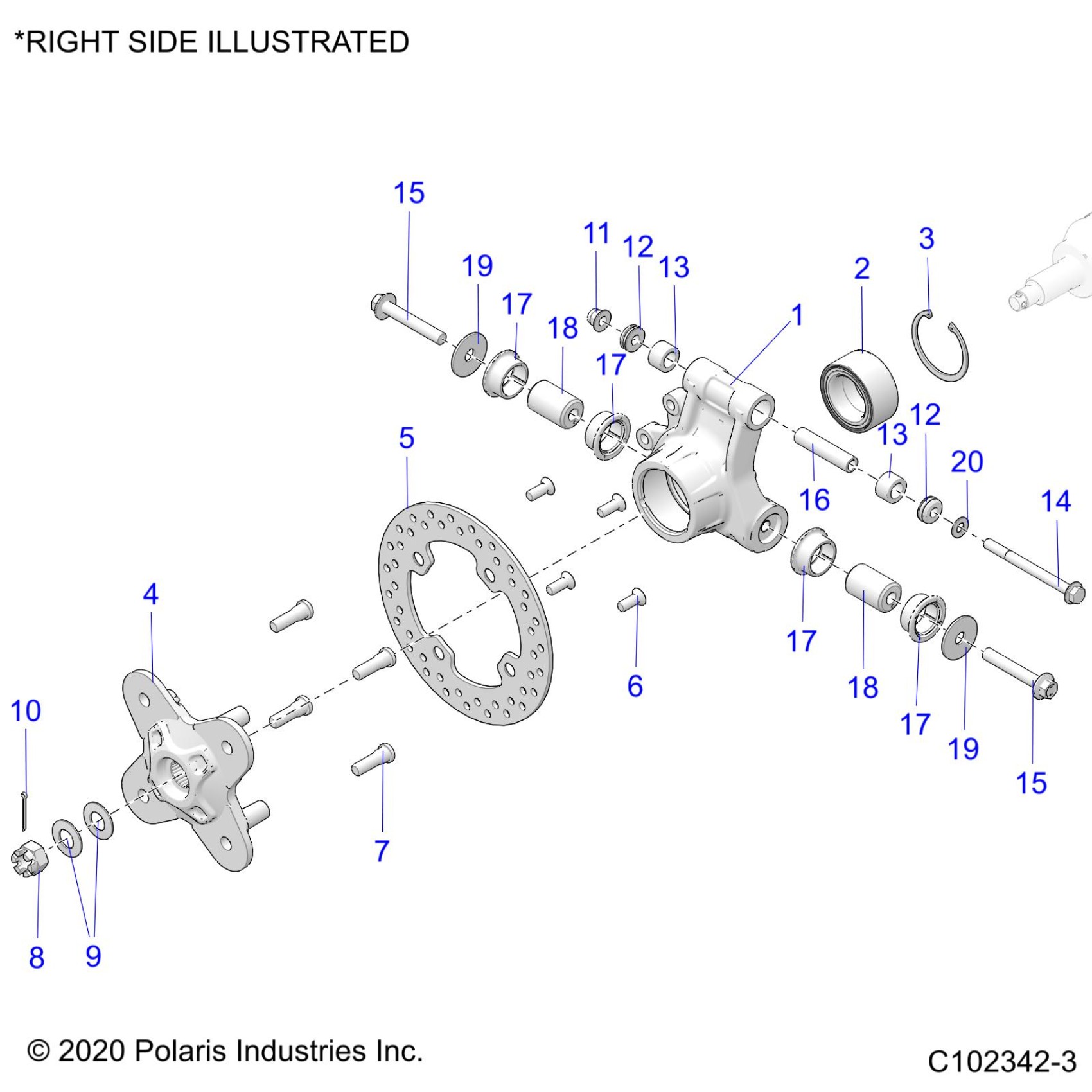

Polaris SCRAMBLER XP 1000 S 55" 49S (R01) - A23SGE95AN SUSPENSION, REAR HUB, CARRIER and BRAKE DISC - A23SGE95AN (C102342-3) Diagram

#

Description
Price

1

CARRIER-BEARING,MACH,LH

5142695

Unavailable

1

CARRIER-BEARING,MACH,RH

5142696

Unavailable

2

BEARING-BALL,SEALED,44X72X33.1

3514924

$39.99

2

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

3

RING-RETAINING,2.875,INTERNAL

7710440

$10.39

4

HUB-WHEEL,MACH,BLK

5143633-458

$87.99

5

DISC, BRAKE, FRONT

5254999

$67.99

6

SCR-M10X1.5X20 8.8 TXCS FL ZOD

7518978

$3.99

7

STUD-WHEEL,M12-1.5

7519753

$4.79

8

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

9

WASHER-CONE.755X1.5X.072-.107P

7555796

$7.99

10

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

11

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

12

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

12

ASM-PIVOT CAP, SEALED, M10

1543611

$5.59

13

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

13

BUSHING-STANDARD, SUSP, M10

5452233

$2.39

14

SCR-HXFL-M10X1.25X115 10.9 ZOD

7519365

$13.59

15

SCR-HXFL-M12X1.5X75 10.9 ZOD

7521073

$4.39

15

SCR-HXFL-M12X1.5X75 10.9 ZOD

7521073

$4.39

16

SHAFT-PIVOT, SHORT, M10

5139990

$5.59

17

BUSHING, CONTROL, LOWER, BLACK

5438902

$4.79

17

BUSHING, CONTROL, LOWER, BLACK

5438902

$4.79

17

BUSHING, CONTROL, LOWER, BLACK

5438902

$4.79

17

BUSHING, CONTROL, LOWER, BLACK

5438902

$4.79

18

BUSHING-BRNG,CARRIER,PM,12MM

5634262

$8.79

18

BUSHING-BRNG,CARRIER,PM,12MM

5634262

$8.79

19

WASHER-13.00X45.0X2.5 ZPC

7557177

$4.79

19

WASHER-13.00X45.0X2.5 ZPC

7557177

$4.79

20

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99
