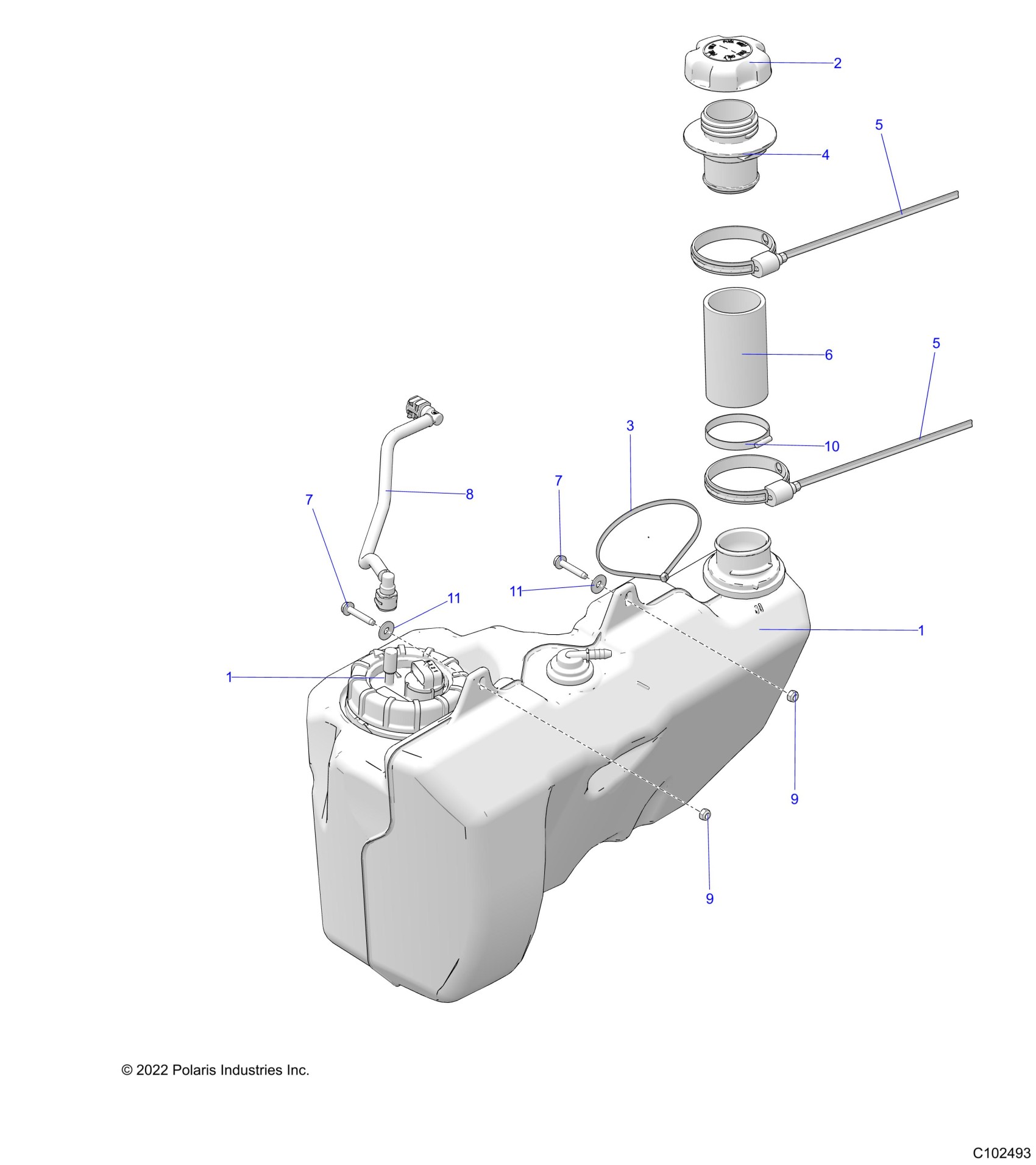

Polaris SCRAMBLER XP 1000 S 55" 49S (R01) - A23SGE95AN FUEL SYSTEM, FUEL TANK - A23SGE95AN (C102493) Diagram

#

Description
Price

1

FUEL PUMP,SERVICE KIT,ATV TWIN [INCL. PUMP, GASKET, NUT, INSTRUCTIONS]

2208596

Unavailable

1

ASM-FUEL TANK W/PUMP,4 BAR [INCL. PUMP]

2522379

Unavailable

1

FUEL PUMP,SERVICE KIT,ATV TWIN [INCL. PUMP, GASKET, NUT, INSTRUCTIONS]

2208596

Unavailable

1

ASM-FUEL TANK W/PUMP,4 BAR [INCL. PUMP]

2522379

Unavailable

2

CAP-GAS TANK

5439075

$23.99

3

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

4

INLET, FUEL

5436898

$79.99

5

CLAMP, BAND, NARROW [TO 12/12/2022]

7080413

$3.19

5

CLAMP-HOSE,25-77 DIA,PLASTIC [FRM 12/12/2022]

7083059

$6.15

5

CLAMP, BAND, NARROW [TO 12/12/2022]

7080413

$3.19

5

CLAMP-HOSE,25-77 DIA,PLASTIC [FRM 12/12/2022]

7083059

$6.15

6

HOSE, FUEL FILL

5414459

$39.99

7

SCR-HXFL-M6X1.0X30,RIE,DGPNT

7519202

$3.99

7

SCR-HXFL-M6X1.0X30,RIE,DGPNT

7519202

$3.99

8

ASM., FUEL LINE

2521315

$43.99

9

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

9

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

10

CLAMP, CONSTANT TENSION [TO 12/12/2022]

7081413

$11.19

11

WASHER-FL .281X.750X.062-Y

7555859

$1.49

11

WASHER-FL .281X.750X.062-Y

7555859

$1.49
