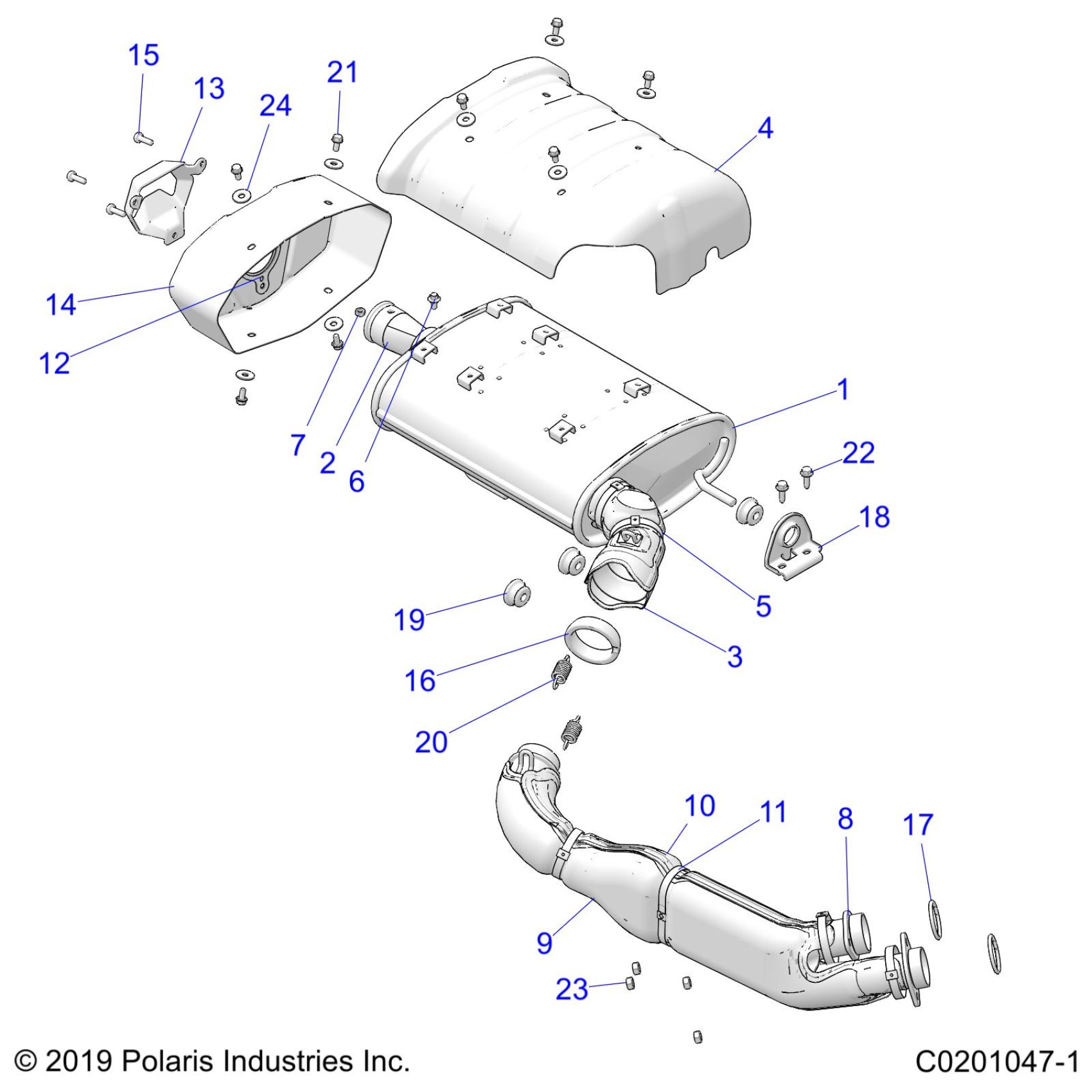

Polaris SCRAMBLER XP 1000 S 55" 49S (R01) - A23SGE95AN ENGINE, EXHAUST - A23SGE95AN (C0201047-1) Diagram

ASM-SILENCER [INCL. 2-7]

1263194

$729.99

WELD-SPARK ARRESTOR,AVA875

1262123

$52.60

SHIELD-SILENCER,INLET,LOWER

5265771

$28.32

SHIELD-HEAT,SILENCER,UPPER

5267710

$101.65

CLAMP, HEAT SHIELD,EXHAUST

7081579

$7.14

SCREW-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.52

NUT-HEX-M6X1.0 8 SPC

7547120

$5.22

ASM-EXHAUST,PIPE,1000 [INCL. 5,9-11]

1263197

$559.99

SHIELD-EXHAUST,PRIMARY,OUTER

5265259

$56.65

SHIELD-EXHAUST,PRIMARY,INNER

5265260

$52.60

CLAMP-HEAT SHIELD,EXHAUST

7081915

$7.14

ASM-END CAP SCR, HT BLK [INCL. 7, 13-15]

1263386

$239.99

SILENCER DEFLECTOR,MACH,PRD,HT

5142971-489

$169.99

CAP-SILENCER,SCR,BLK

5268244-489

$106.49

SCR-M6X1.0X20MM,TX,PH,8.8-B

7518546

$3.17

SEAL-EXHAUST

3610204

$36.41

GASKET-EXHAUST SEALING,46.50

5257995

$11.32

BRKT-EXHAUST,FRONT,BLK

5267424-067

$28.32

ISOLATOR-EXHAUST,HANGER,HD

5417363

$8.54

SPRING-EXHAUST S.S. SHOTPEENED

7043727

$4.84

SCR-1/4-20X1/2,TFM HW-M

7518490

$1.19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

NUT-HXFL-M8X1.25 A493 EM6340

7547803

$3.97

WASHER-.28 X .81 X .06, ST-M

7555935

$2.38
