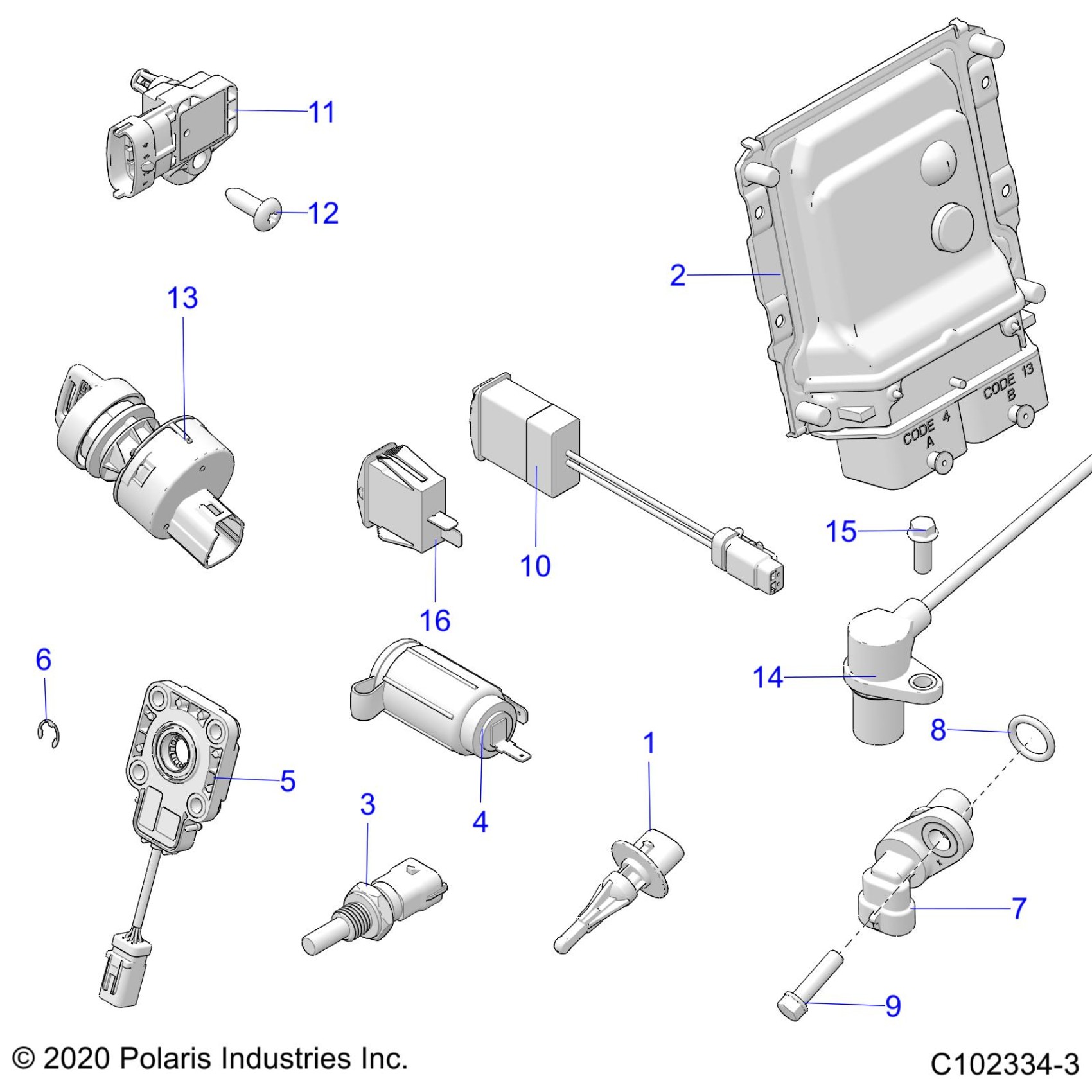

Polaris SCRAMBLER XP 1000 S 55" 49S (R01) - A23SGE95AN ELECTRICAL, SWITCHES, SENSORS, ECU and CONTROL MODULES - A23SGE95AN (C102334-3) Diagram

Sensor, Air Temperature

2410687

$143.99

ECM-HARD,ME17,2CYL,250K

4014125

$694.99

SENSOR-THERMISTER

4010644

$87.13

Receptacle, Pod Mount, 12 Volt

4010638

$24.27

SWITCH, ROTARY, 2 PIN RESISTIVE [GEAR POSITION]

7662383

$111.99

RING, RETAINING BASIC EXTERNAL

3233834

$10.39

SENSOR-SPEED,TRANS

4013908

Unavailable

O-RING

3234302

$7.19

SCREW. TORX, PAN HEAD

3234329

Unavailable

SWITCH-DRIVEMODE,2MODE,ATV

4017953

$131.99

SENSOR-TMAP DSS3-TF

2411528

$93.08

SCR-SENSOR TMAP

3131753

$3.99

SWITCH-KEY,3 POS,SEALED [INCL. COVER, IGNITION NUT]

4080413

$51.99

KEY COVER-KEYSWITCH

5458344

$12.79

NUT-IGNITION SWITCH,HOBBS

5433733

$23.99

Sensor, Crank Position

2411589

$79.99

SCREW-HXFL-M6X1.0X16 8.8 ZY3 [USED WITH CRANK POSITION SENSOR]

7518548

$1.59

SWITCH, WORK LIGHT, ON/OFF

4011074

$49.99
