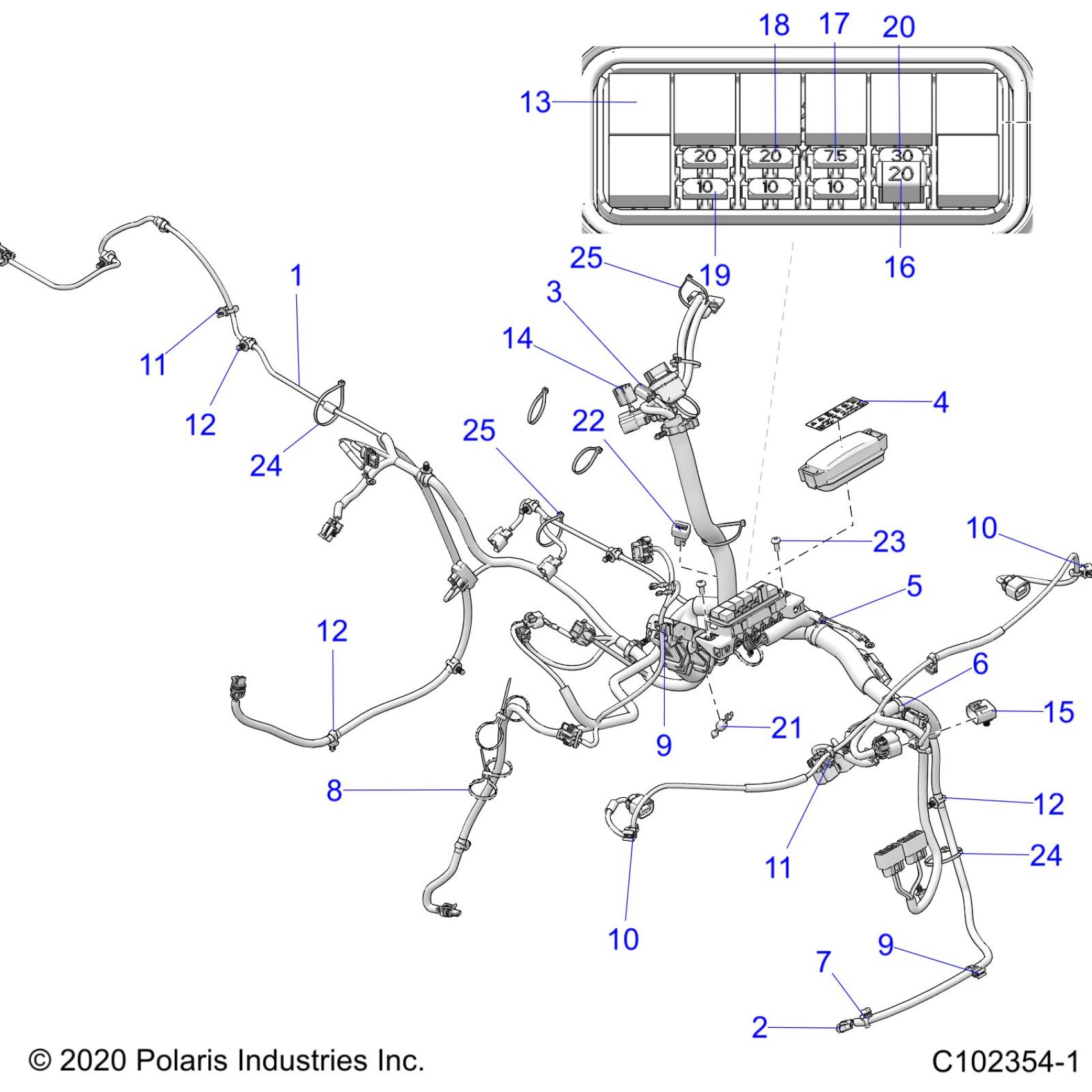

Polaris SCRAMBLER XP 1000 S 55" 49S (R01) - A23SGE95AN ELECTRICAL, HARNESS - A23SGE95AN (C102354-1) Diagram

#

Description
Price

1

HARNESS-MAIN,SCR 850/1000 ETC [INCL. 1-22]

2415160

$1,149.99

2

CONNECTOR-CAP, WINCH CONTACTOR

4014891

$9.76

3

CONNECTOR-CAP, WINCH SWITCH

4014890

$10.65

4

LABEL-FUSE BOX

7300363

Unavailable

5

CLIP-FIR TREE,12.5MM OFF,90DEG

7082406

$3.17

6

CLIP-EDGE, 1-3mm THICKNESS

7082403

$4.76

7

CLIP-EDGE, 1-3mm THICKNESS

7082402

$7.14

8

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.84

9

CLIP, EDGE, HARNESS

7081890

$10.32

9

CLIP, EDGE, HARNESS

7081890

$10.32

10

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.94

10

CLIP-EDGE,DIA5-50MM,OUT-SER

7081824

$12.94

11

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

11

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.65

12

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

12

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

12

CLIP FIR-TREE,DIA6-33MM

7081496

Unavailable

13

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$36.41

14

CONNECTOR-SW, OTTO K1, 5 WIRE

4016237

$5.99

15

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.89

16

BREAKER-CIRCUIT,20 AMP

4011372

$44.51

17

FUSE - 7.5, MINI BLADE (BROWN)

4011068

$11.32

18

FUSE-PARK,20 AMP

2434017

$8.08

19

FUSE-IGNITION,10 AMP

2434016

$5.65

20

FUSE-MAIN,30 AMP

2434015

$8.87

21

DIODE - 6 AMP, 1/4, 3/16 TERM

2411035

$56.65

22

DIODE - 6 AMP, 1/4, 3/16 TERM

2410000

$40.46

23

SCREW-M6X1X14,PN/TX,TRI-LOB

7518914

$3.17

24

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

24

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

25

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

25

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41
