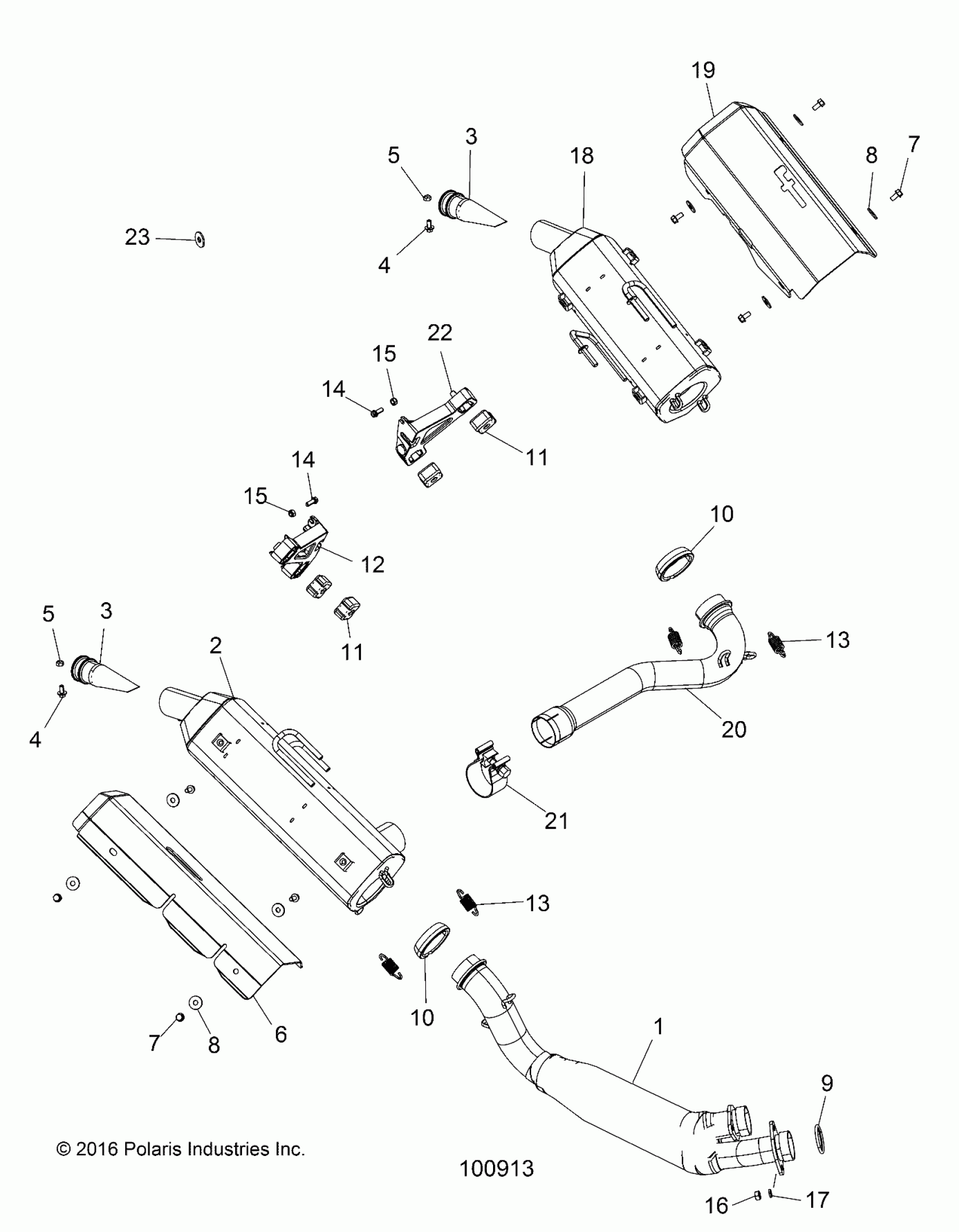

Polaris SCRAMBLER XP 1000 (R13) - A18SVE95BR ENGINE, EXHAUST - A18SVE95BR Diagram

#

Description
Price

1

CLAMP-HEAT SHIELD,EXHAUST [SMALL, FRONT]

7081156

$7.19

1

CLAMP, HEAT SHIELD,EXHAUST [REAR, LARGE]

7081579

$7.19

1

ASM-EXHAUST PIPE,TWIN [INCL. PIPE, SHIELDS, CLAMPS]

1263019

$203.99

1

SHIELD-EXHAUST,PRIMARY,FRNT,ML [OUTER]

5263605

$35.99

1

SHIELD-EXHAUST,PRIMARY,BACK,ML [INNER]

5263606

$35.99

2

SILENCER, EXHAUST

1262436

$505.99

3

WELD-SPARK ARRESTOR,QT

1262239

$43.99

3

WELD-SPARK ARRESTOR,QT

1262239

$43.99

4

SCREW

7517257

$9.59

4

SCREW

7517257

$9.59

5

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

5

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

6

SHIELD, HEAT, EXHAUST, SILENCER

5257670

$91.99

7

SCREW

7518490

$1.49

7

SCREW

7518490

$1.49

8

Washer

7555935

$2.39

8

Washer

7555935

$2.39

9

GASKET, EXHAUST, SEALING

5257995

$11.19

10

SEAL-EXHAUST

3610204

$35.99

10

SEAL-EXHAUST

3610204

$35.99

11

GROMMET, SILENCER MOUNT

5413383

$4.79

11

GROMMET, SILENCER MOUNT

5413383

$4.79

12

BRACKET, EXHAUST, SUPPORT, RH

5632668

$35.99

13

SPRING-EXHAUST

7041789

$7.99

13

SPRING-EXHAUST

7041789

$7.99

14

SCREW

7518548

$1.59

14

SCREW

7518548

$1.59

15

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

15

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

16

NUT

7547076

$2.60

17

Washer, Lock

7556111

$1.59

18

SILENCER, EXHAUST, SHORT

1262458

$492.79

19

SHIELD, HEAT, EXHAUST, SILENCER

5257708

$63.99

20

CROSS TUBE

1262478

$131.99

21

CLAMP, EXHAUST

7081382

$31.99

22

BRACKET, EXHAUST, SUPPORT, LH

5633022

$35.99

23

WASHER

7555954

$4.79
