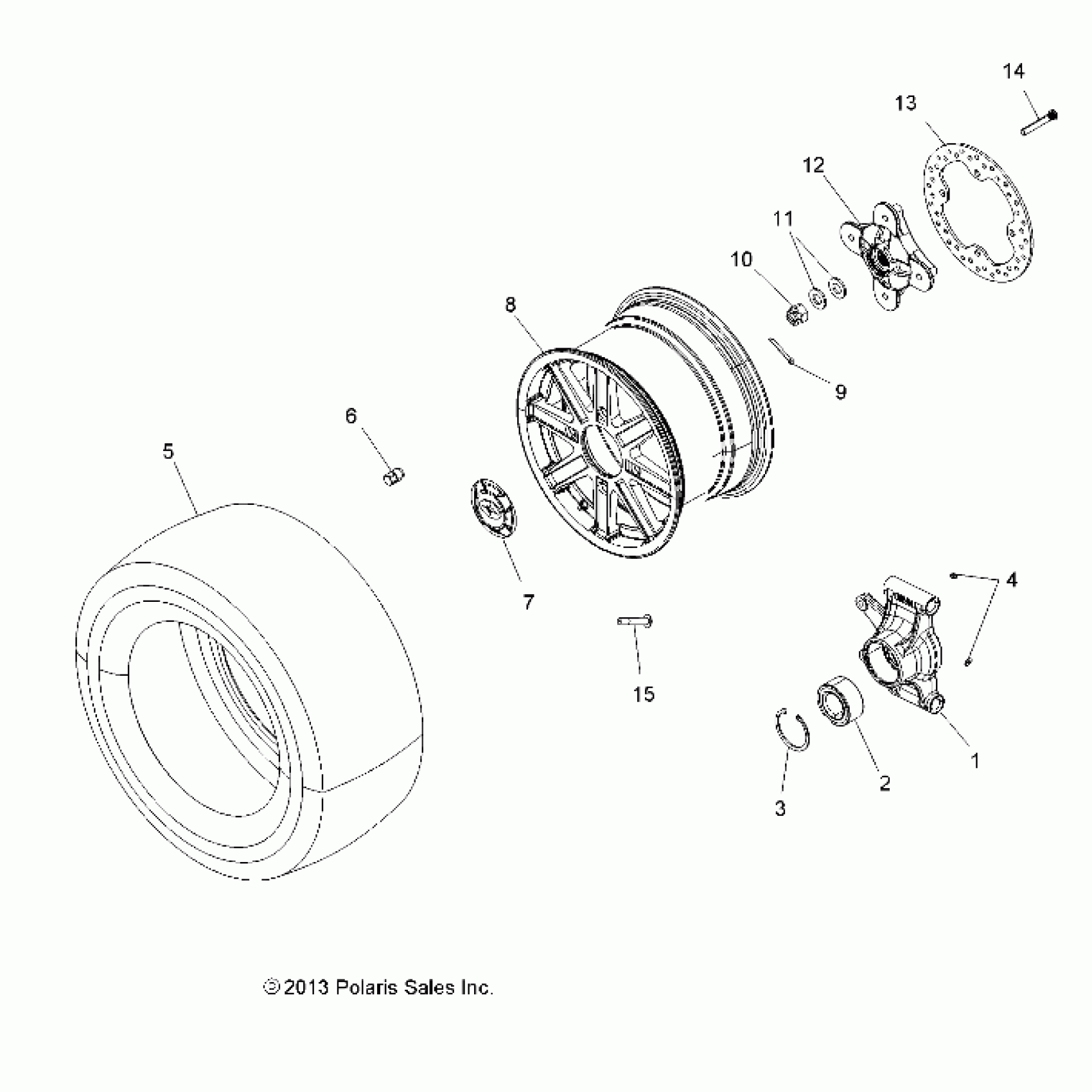

Polaris SCRAMBLER XP 1000 (R10) - A16SVE95AA/AM WHEELS, REAR and HUB - A16SVE95AA/AM Diagram

#

Description
Price

1

CARRIER, BEARING, RH

5136690

Unavailable

1

CARRIER, BEARING, LH

5136689

Unavailable

2

BEARING, BALL, SEALED

3514699

$39.99

3

RING, RETAINING

7710440

$10.39

4

FITTING-LUBRICATION 1/4-28

7080424

$4.79

5

TIRE, REAR, 26X10-14

5414074

Unavailable

6

NUT, WHEEL, REAR

7547361

$2.39

7

COVER, HUB, FLASH BLACK

5450161-655

Unavailable

8

RIM, REAR, CAST, FLASH BLACK [INCL. COVER, DECAL]

1521485-655

$182.39

9

PIN, COTTER

7661404

$4.79

10

NUT, CASTLE

7547406

$4.79

11

WASHER, CONE

7555796

$7.99

12

HUB, WHEEL

5136946

$93.08

13

DISC, BRAKE

5250205

$75.99

14

STUD, WHEEL

7518671

$1.59

15

VALVE-RIM

1525017

$5.59
