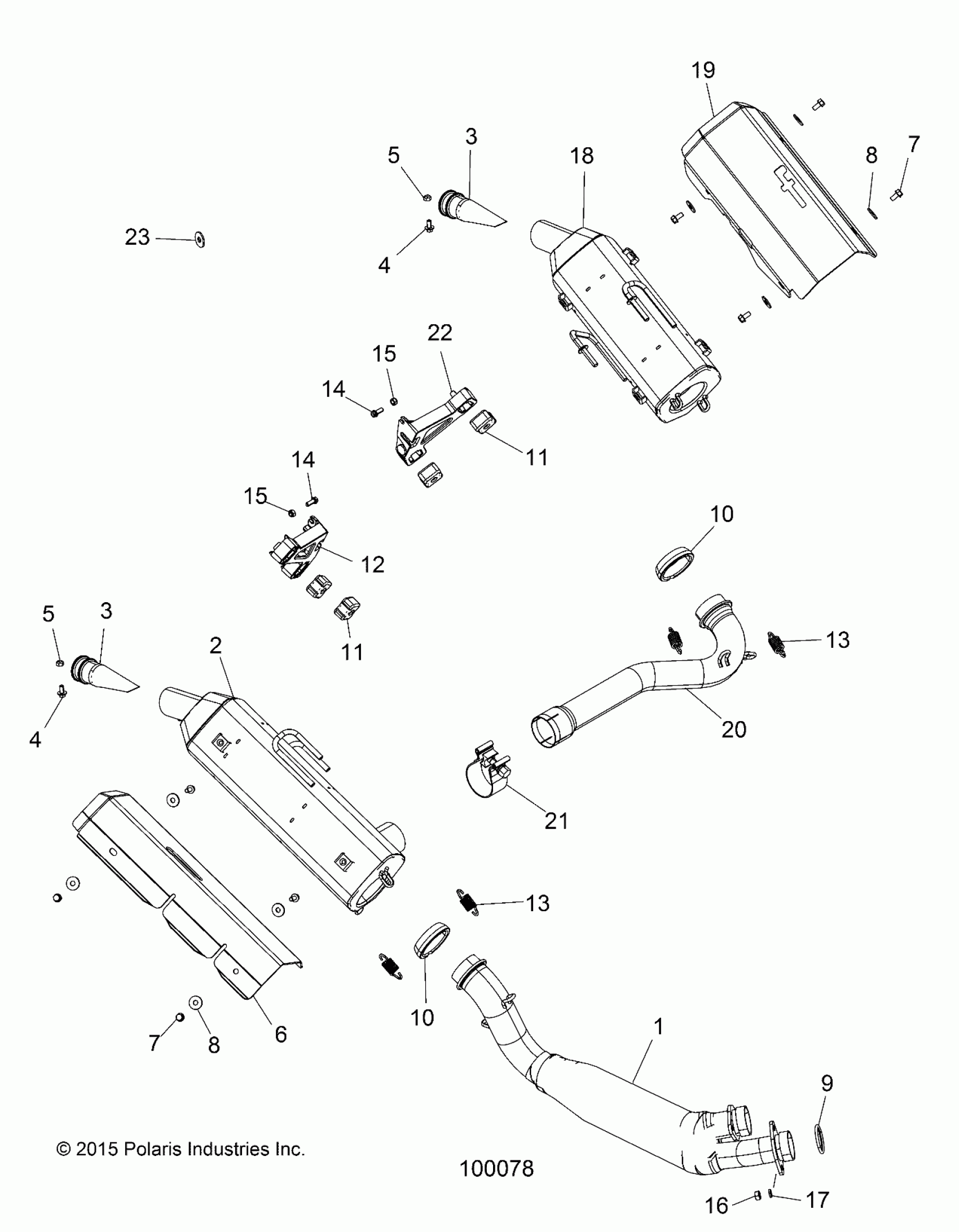

Polaris SCRAMBLER XP 1000 (R10) - A16SVE95AA/AM ENGINE, EXHAUST - A16SVE95AA/AM Diagram

#

Description
Price

1

CLAMP-HEAT SHIELD,EXHAUST [SMALL, FRONT]

7081156

$7.14

1

ASM., EXHAUST PIPE, TWIN [INCL. PIPE, SHIELDS, CLAMPS]

1262642

Unavailable

1

CLAMP, HEAT SHIELD,EXHAUST [REAR, LARGE]

7081579

$7.14

1

SHIELD-EXHAUST,PRIMARY,FRNT,ML [OUTER]

5259369

Unavailable

1

SHIELD-EXHAUST,PRIMARY,BACK,ML [INNER]

5259370

Unavailable

2

SILENCER, EXHAUST

1262436

$609.99

3

WELD-SPARK ARRESTOR,QT

1262239

$48.56

3

WELD-SPARK ARRESTOR,QT

1262239

$48.56

4

SCREW

7517257

$9.52

4

SCREW

7517257

$9.52

5

NUT-HEX-M6X1.0 8 SPC

7547120

$5.22

5

NUT-HEX-M6X1.0 8 SPC

7547120

$5.22

6

SHIELD, HEAT, EXHAUST, SILENCER

5257670

$97.13

7

SCREW

7518490

$1.19

7

SCREW

7518490

$1.19

8

Washer

7555935

$2.38

8

Washer

7555935

$2.38

9

GASKET, EXHAUST, SEALING

5257995

$11.32

10

SEAL-EXHAUST

3610204

$36.41

10

SEAL-EXHAUST

3610204

$36.41

11

GROMMET, SILENCER MOUNT

5413383

$4.76

11

GROMMET, SILENCER MOUNT

5413383

$4.76

12

BRACKET, EXHAUST, SUPPORT, RH

5632668

$36.41

13

SPRING-EXHAUST

7041789

$8.89

13

SPRING-EXHAUST

7041789

$8.89

14

SCREW

7518548

$1.59

14

SCREW

7518548

$1.59

15

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

15

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

16

NUT

7547076

$2.60

17

Washer, Lock

7556111

$1.59

18

SILENCER, EXHAUST, SHORT

1262458

$589.99

19

SHIELD, HEAT, EXHAUST, SILENCER

5257708

$68.79

20

CROSS TUBE

1262478

$159.99

21

CLAMP, EXHAUST

7081382

$31.75

22

BRACKET, EXHAUST, SUPPORT, LH

5633022

$36.41

23

WASHER

7555954

$4.76
