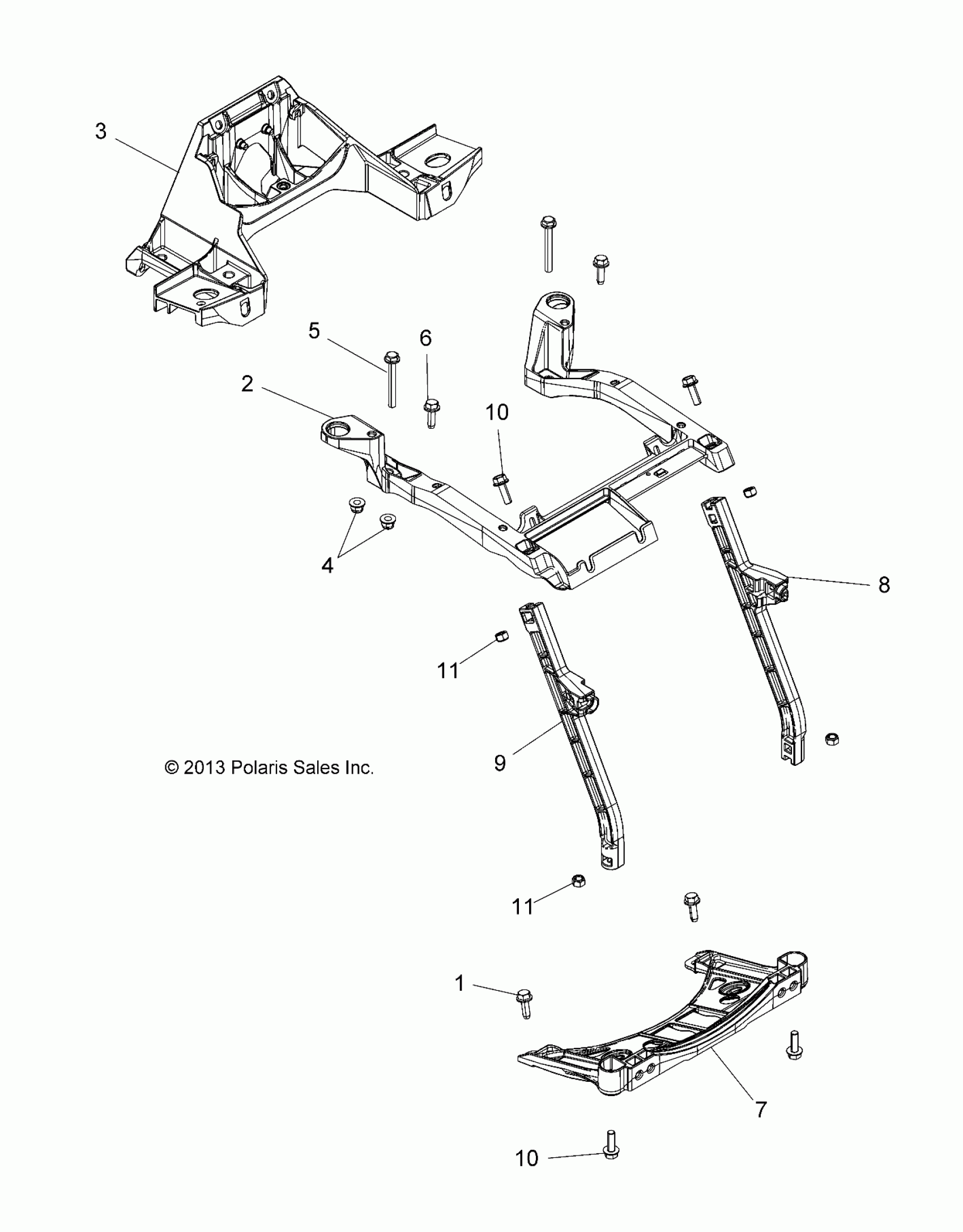

Polaris SCRAMBLER XP 1000 (R10) - A16SVE95AA/AM BODY, FRONT RACK SUPPORT - A16SVE95AA/AM Diagram

#

Description
Price

1

BOLT, FLANGE

7518555

$2.39

2

SUPPORT, RACK

5632712

Unavailable

3

BULKHEAD

5633041

$179.99

4

Nut, Flange

7547317

Unavailable

5

BOLT

7518816

$3.99

6

BOLT

7518450

$1.59

7

Support, Radiator

5632356

$47.99

8

SUPPORT, RACK, FRONT, LH

5632713

$43.99

9

SUPPORT, RACK, FRONT, LH

5632714

$43.99

10

BOLT, FLANGE

7518576

$3.19

10

BOLT, FLANGE

7518576

$3.19

11

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

11

NUT-NYLOCK M8X1.25-Y

7547144

$3.19
