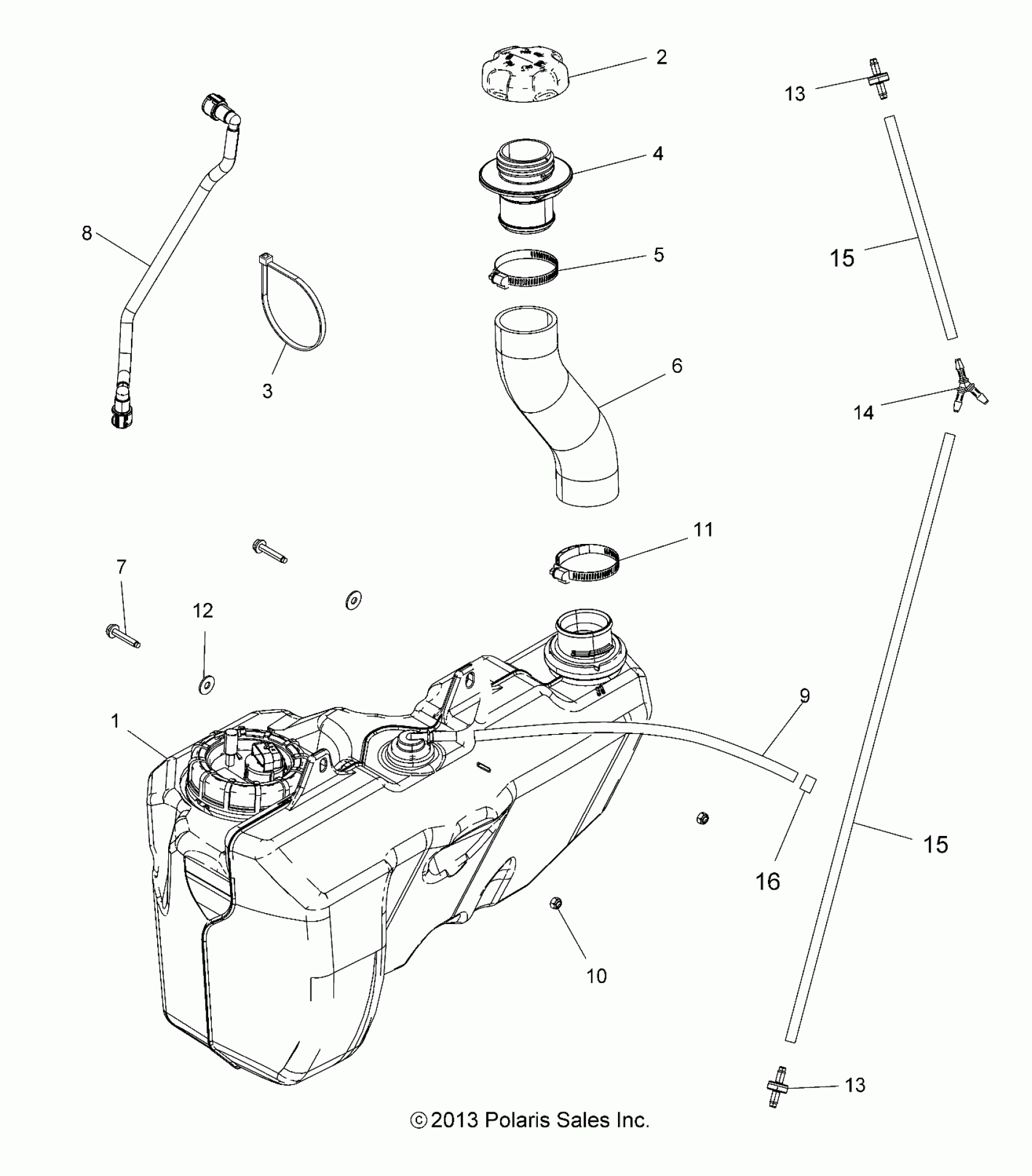

Polaris SCRAMBLER XP 1000 HO EPS - A14GH9EAW BODY, FUEL TANK - A14GH9EAW (49ATVFUEL14SCRAM) Diagram

#

Description
Price

1

KIT, FUEL PUMP [INCL. PUMP ASM., GASKET, NUT, INSTRUCTIONS]

2205525

$227.99

1

ASM., FUEL TANK W/PUMP [INCL. PUMP]

2521415

$679.03

2

CAP-GAS TANK [INCL. GASKET]

5439075

$24.27

3

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

4

INLET, FUEL

5436898

$99.74

5

Clamp, Narrow Band

7080413

$3.17

6

HOSE, FUEL FILL

5414459

$48.87

7

SCREW, FLANGE

7519202

$3.97

8

ASM., FUEL LINE

2521315

$48.56

9

LINE, VENT

8450126-27

Unavailable

10

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

11

CLAMP, CONSTANT TENSION

7081413

$11.11

12

Washer, Flat

7555859

$1.19

13

VALVE, CHECK, VACUUM

7052390

$8.08

13

VALVE, CHECK, VACUUM

7052390

$8.08

14

FITTING, Y

7052589

$2.99

15

Line, Fuel

8450003-1525

Unavailable

15

Line, Fuel

8450003-1525

Unavailable

16

CLAMP, HOSE

7080236

$1.59
