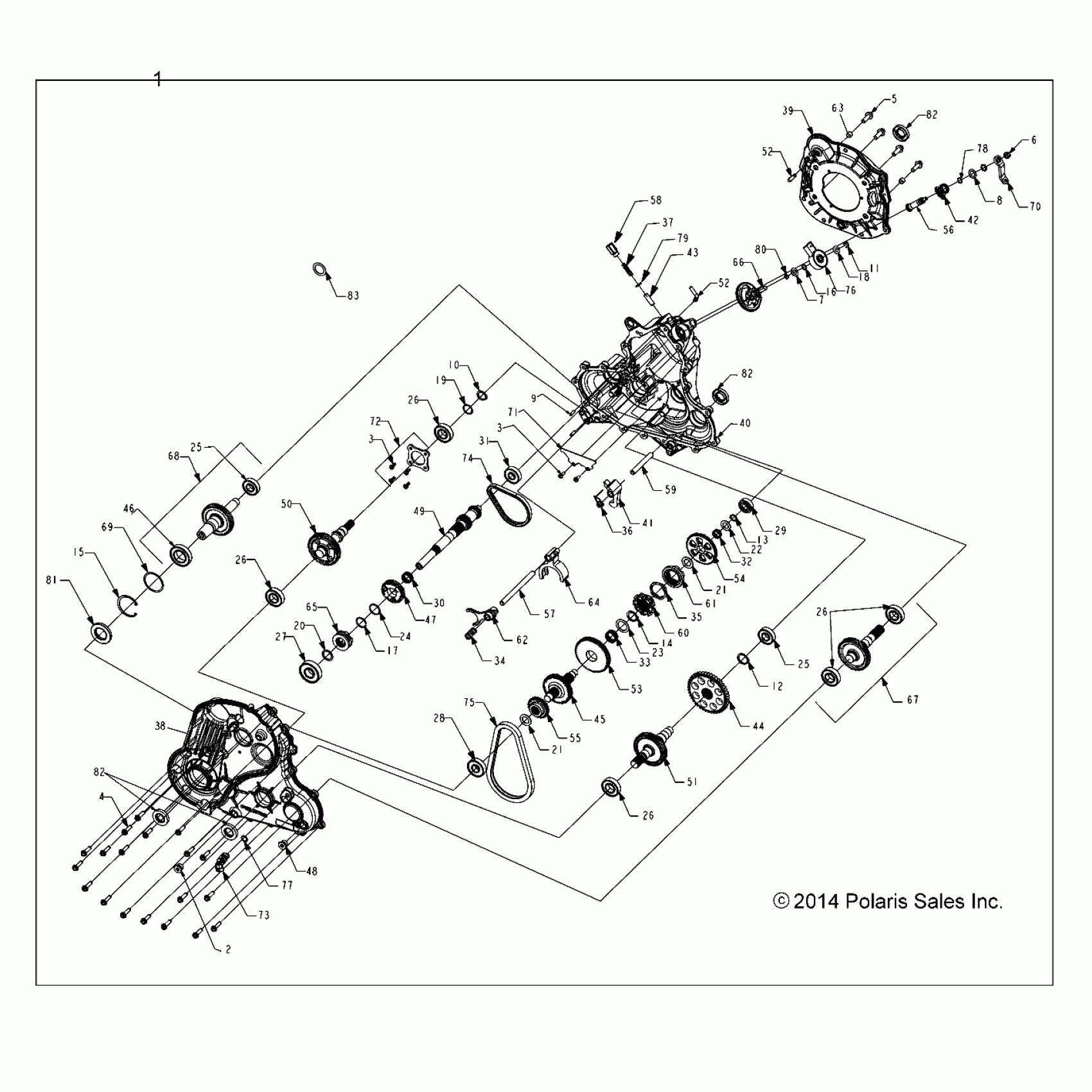

Polaris SCRAMBLER XP 1000 - A15SVE95AW DRIVE TRAIN, MAIN GEARCASE - A15SVE95AW (49ATVGEARCASE1333180) Diagram

#

Description
Price

1

ASM., TRANSMISSION [INCL. ALL LESS 7,19]

1333180

$3,299.99

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.75

3

SCREW, TORX

3234309

$7.14

3

SCREW, TORX

3234309

$7.14

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.52

5

SCREW, HEX

3234634

$13.49

6

NUT

3233961

$3.32

7

WASHER, THRUST

3234636

$7.94

8

WASHER, THRUST

3234637

$11.11

9

PIN, DOWEL 6 X 20

3234330

$7.14

10

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

11

RING, SNAP

3233834

$10.32

12

RING, RETAINING

3233699

$7.27

13

RING, RETAINING, EXTERNAL

3234318

$3.17

14

RING, RETAINING BASIC, EXTERNA

3234327

$7.14

15

RING, RETAINING, INTERNAL

3234741

$9.52

16

RING, RETAINING,EXTERNAL

3234639

$10.32

17

RING, RETAINING, EXTERNAL

3234641

$13.75

18

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.32

19

KIT, LUK INPUT SHAFT PACK

2204343

$38.08

20

WASHER THRUST

3234248

$9.52

21

SHIM

3234643

$36.41

21

SHIM

3234643

$36.41

22

SHIM

3234644

$13.75

23

WASHER, THRUST

3234646

$23.81

24

WASHER, THRUST

3234757

$11.11

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

27

BEARING

3233020

$47.62

28

BEARING BALL,6304STD 20X52X15

3234651

$15.87

29

BEARING, BALL

3234274

$27.78

30

BEARING, NEEDLE, SPLIT CAGE

3234759

$15.87

31

BEARING, BALL

3234652

$15.87

32

BEARING, NEEDLE, CAGE ASSY

3234655

$15.87

33

BEARING, NEEDLE

3234656

$15.87

34

SPRING, COMPRESSION

3234687

$8.89

35

SPRING, WAVE

3234688

$10.32

36

SPRING, PARK PAWL, TORSION

3234787

$28.32

37

SPRING, COMPRESSION

3234790

$24.27

38

GEARCASE GTO , COVER, MACH.

3235507

$755.22

39

BELLHOUSING, MACH

3235196

$49.99

40

GEARCASE, MAIN, GTO MACH

3235428

$399.99

41

PAWL, PARK

3234692

$52.60

42

GEAR, SECTOR, 38T

3234694

$35.54

43

BULLET DETENT

3234695

$44.99

44

SPROCKET, 44 TOOTH

3234998

$68.79

45

SHAFT, REVERSE 53T

3234774

$232.74

46

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.68

47

GEAR, HELICAL, 42T

3235133

$80.94

48

PLUG, M18 X 1.5

3234755

$27.78

49

SHAFT, INPUT 25T REM

3235063

$399.99

50

SHAFT, INPUT

3235194

$234.75

51

SHAFT, OUTPUT REAR

3235505

$462.21

52

TUBE, VENT

3234230

$10.51

52

TUBE, VENT

3234230

$10.51

53

GEAR, 67T

3234706

$93.08

54

SPROCKET 48T

3234707

$36.41

55

SPROCKET, 23T

3234708

$40.46

56

SHAFT, SHIFT, BELLCRANK

3234712

$75.99

57

RAIL, SHIFT SHAFT

3234714

$28.32

58

PLUG, DETENT

3234715

$35.71

59

RAIL, PARK SHAFT

3234716

$28.32

60

DOG, ENGAGEMENT, GTO, LOW

3234718

$186.17

61

DOG, ENGAGEMENT, GTO, REV/LOW

3235341

$182.13

62

FORK, SHIFT

3235342

$89.03

63

KNOCK PIPE

3234765

$13.75

64

FORK, SHIFT

3234766

$97.76

65

DOG, ENGAGEMENT, GTO, HIGH

3235190

$87.13

66

SUBASM., SWITCH SHAFT

3234767

$125.46

67

SUBASM., OUTPUT, FRONT W/BEARINGS

3235506

$351.49

68

SUBASM., PRIMARY SHAFT W/BEARINGS

3235191

$365.74

69

KIT, GTO, PRIMARY SHIM PACK

2204268

$39.68

70

BELLCRANK, 15T SPLINE

3234724

$28.32

71

Deflector, Oil

3234725

$13.75

72

SUBASM., BEARING COVER W/SCREWS

3235198

$26.17

73

SENSOR, SPEED

4012167

$109.27

74

CHAIN,SIL 101,.25P X .40W X58L

3234737

$169.98

75

CHAIN SILENT

3234738

$246.89

76

SWITCH, ROTARY

3233835

$142.49

77

O-RING

3234302

$7.27

78

O-RING

3233828

$6.87

79

O-RING

3234729

$13.75

80

O-RING

3234730

$8.08

81

SEAL

3234769

$44.51

82

SEAL, TRIPLE LIP

3234892

$36.41

82

SEAL, TRIPLE LIP

3234892

$36.41

82

SEAL, TRIPLE LIP

3234892

$36.41

83

WASHER, RIBBED

3235508

$3.97
