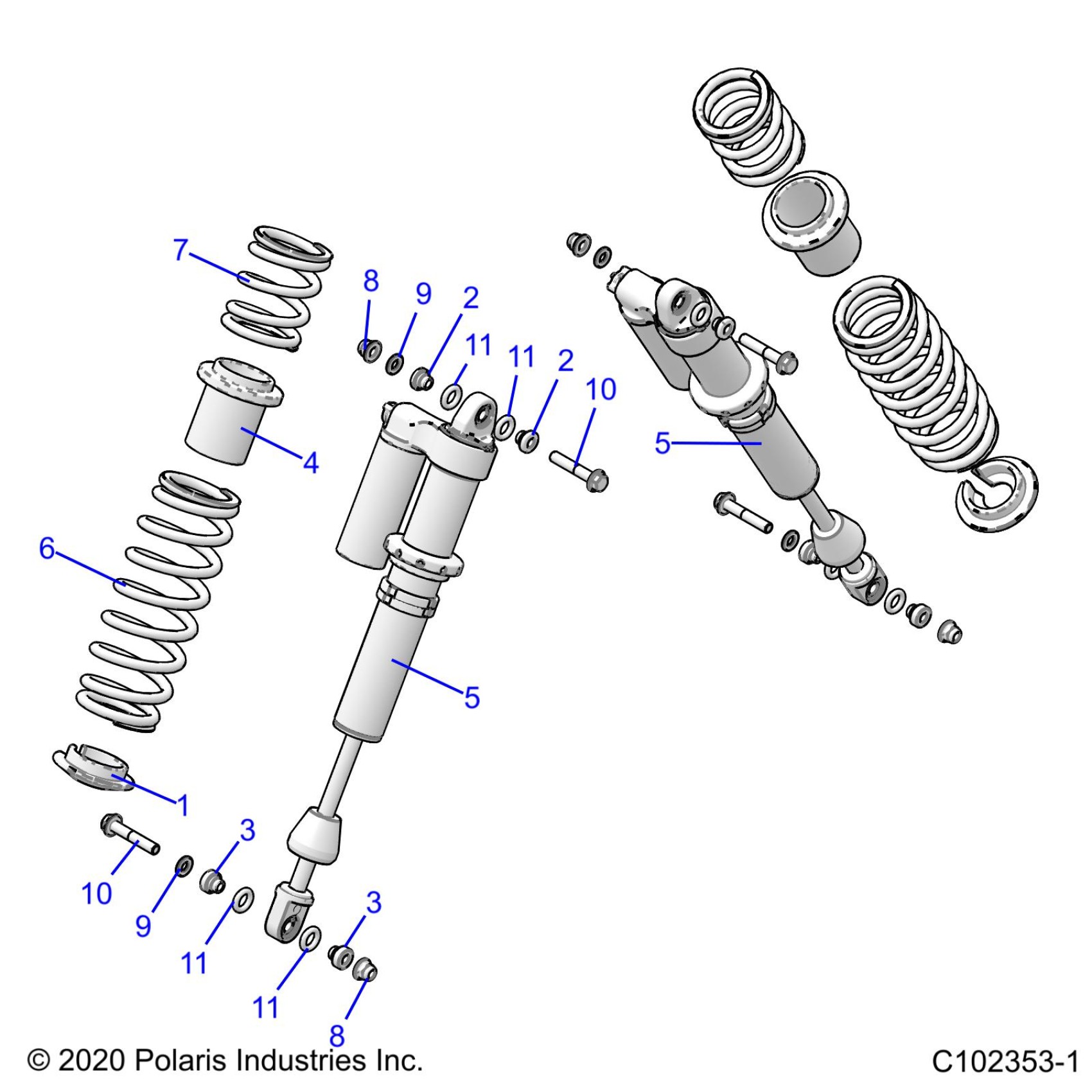

Polaris SCRAMBLER XP 1000 55" (R05) - A20SGE95AK SUSPENSION, SHOCK, REAR - A20SGE95AK (C102353-1) Diagram

RETAINER-SPRING,2.5�

5267152

$70.11

BUSHING-REDUCER,.500X.398,ZYW

5137876

$7.19

BUSHING-REDUCER,.500X.398,ZYW

5137876

$7.19

BUSHING-REDUCER,10MM WIDE,ZYW

5137877

$7.19

BUSHING-REDUCER,10MM WIDE,ZYW

5137877

$7.19

SPACER-SPRING,2.5

5455821

$53.61

SHK-RR,WE2.0,WL55,TRIPLE-ADJ

7045179

$748.21

SHK-RR,WE2.0,WL55,TRIPLE-ADJ

7045179

$748.21

SPRING-RR,55,PRM TRPL ADJ,T,RD

7045173-293

$83.99

SPRING-RR,55,PRM TRPL ADJ,S,RD

7045172-293

$47.99

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.59

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.59

O-RING,0.600IDX.210

5412290

$2.02

O-RING,0.600IDX.210

5412290

$2.02

O-RING,0.600IDX.210

5412290

$2.02

O-RING,0.600IDX.210

5412290

$2.02
