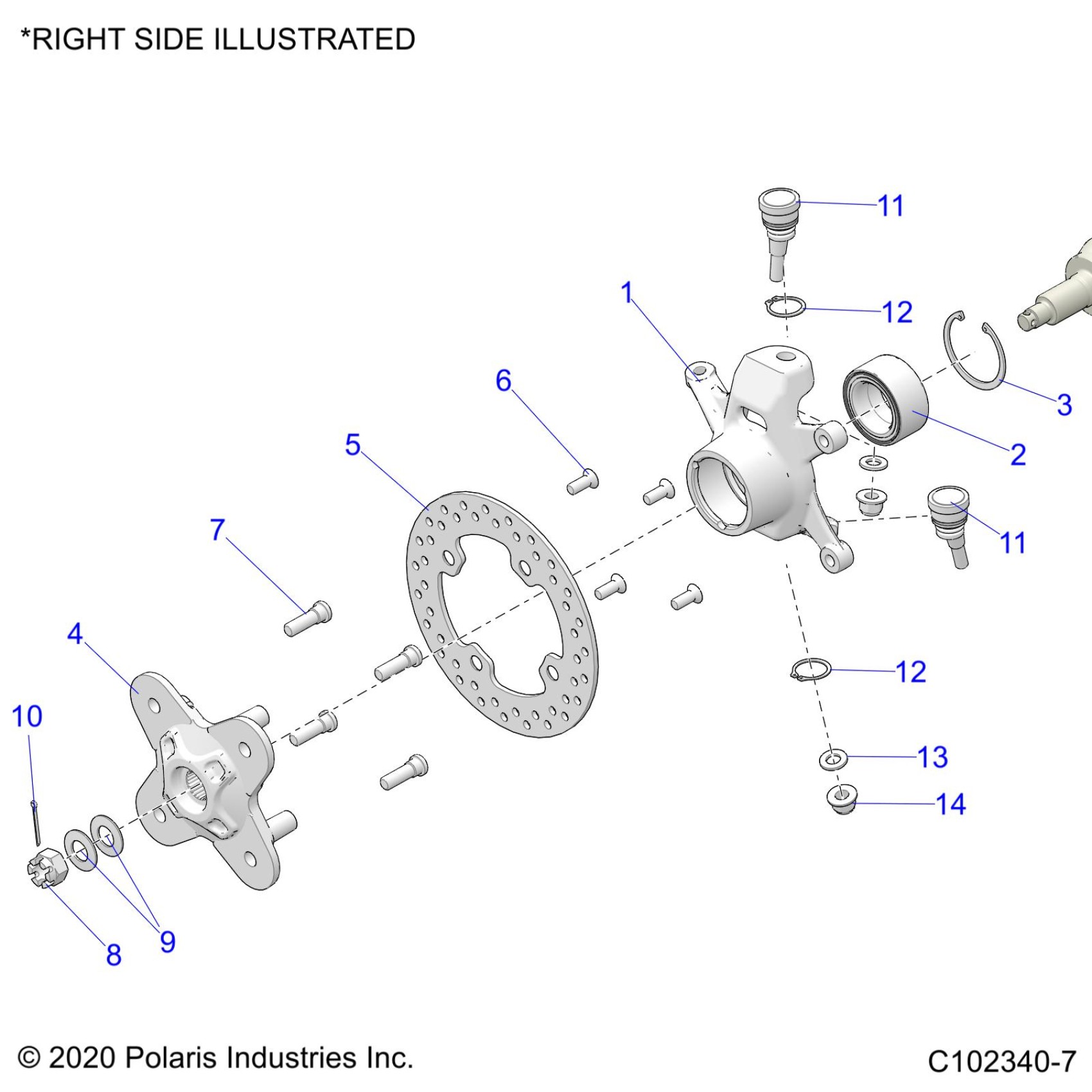

Polaris SCRAMBLER XP 1000 55" (R05) - A20SGE95AK SUSPENSION, FRONT HUB, KNUCKLE and BRAKE DISC - A20SGE95AK (C102340-7) Diagram

KNUCKLE-STEERING,MACH,LH �

5142903

Unavailable

KNUCKLE-STEERING,MACH,RH �

5142904

Unavailable

BEARING-BALL,SEALED,44X72X33.1 �

3514924

$39.99

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

RING-RETAINING,2.875,INTERNAL �

7710440

$10.39

HUB-WHEEL,MACH,BLK �

5139978-458

Unavailable

DISC-BRAKE �

5254999

$67.99

SCR-M10X1.5X20 8.8 TXCS FL ZOD �

7518978

$3.99

STUD-WHEEL,M12-1.5 �

7519753

$4.79

NUT-M18X1.5,CASTLE �

7547337

$1.99

WASHER-CONE �

7555796

$7.99

PIN-COTTER 1/8X1 1/2-Y �

7661404

$4.79

BALL-JOINT,M12X1.50,TAPERED �

7061270

$39.99

BALL-JOINT,M12X1.50,TAPERED �

7061270

$39.99

RING-RETAINER,EXTERNAL,1.188 �

7710533

$2.39

RING-RETAINER,EXTERNAL,1.188 �

7710533

$2.39

WSHR-13.0X24.0X2.5 ZPC �

7556287

$7.19

NUT-M12X1.5, FLG, NYLOC-OLIVE D �

7547334

$4.79
