- SCRAMBLER XP 1000 55" (R05) - A20SGE95AK
ENGINE, TRANSMISSION MOUNTING & LONG BLOCK - A20SGE95AK (C101431-18)

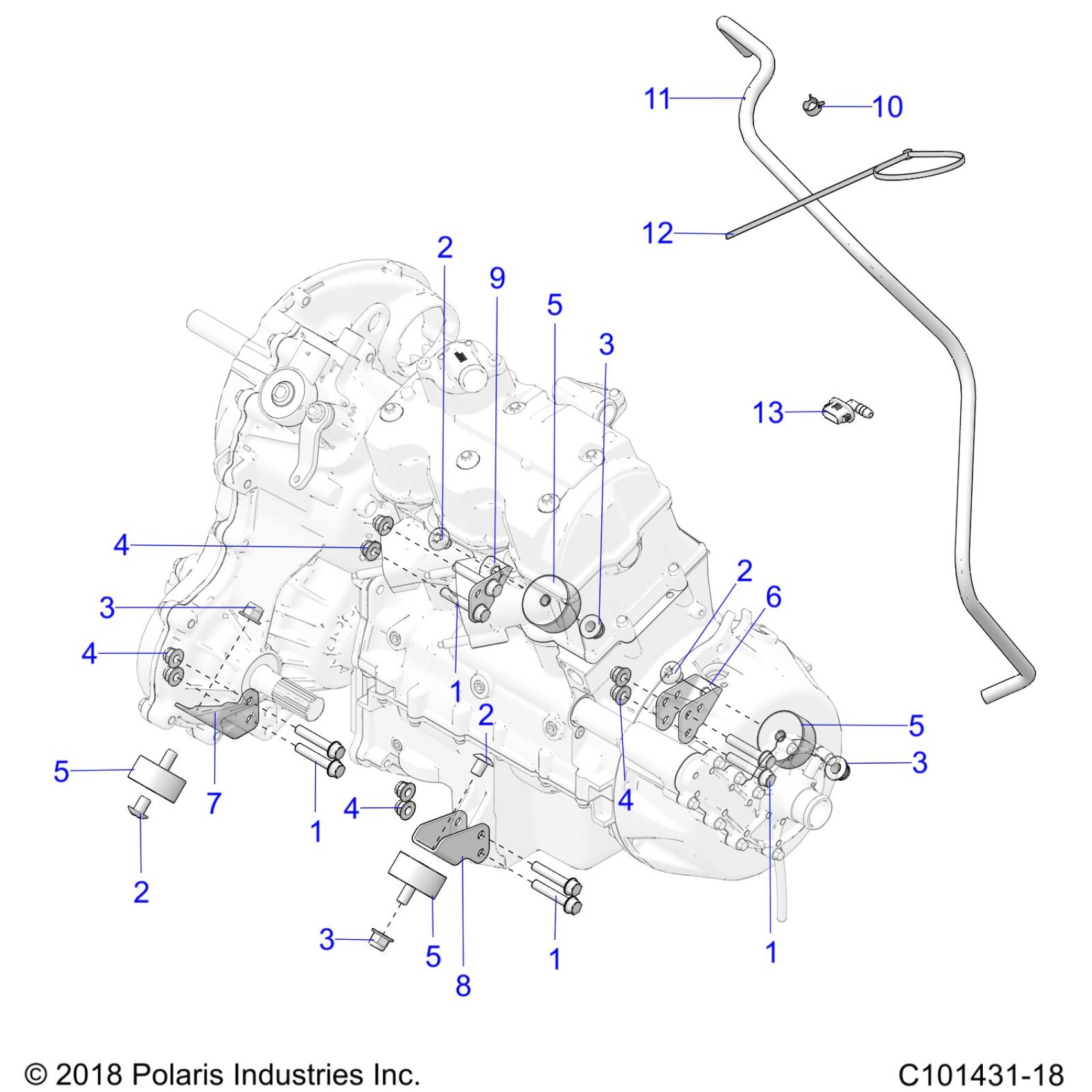

Polaris SCRAMBLER XP 1000 55" (R05) - A20SGE95AK ENGINE, TRANSMISSION MOUNTING & LONG BLOCK - A20SGE95AK (C101431-18) Diagram
#
Description
Price
-
KIT, LONG BLOCK, 1000
2205142
$6,063.19
1
SCREW, FLANGE
7516732
$1.59
1
SCREW, FLANGE
7516732
$1.59
1
SCREW, FLANGE
7516732
$1.59
1
SCREW, FLANGE
7516732
$1.59
2
SCREW
7519032
$4.79
2
SCREW
7519032
$4.79
2
SCREW
7519032
$4.79
2
SCREW
7519032
$4.79
3
Nut, Flange
7547313
$1.49
3
Nut, Flange
7547313
$1.49
3
Nut, Flange
7547313
$1.49
3
Nut, Flange
7547313
$1.49
4
Nut, Flange
7547317
Unavailable
4
Nut, Flange
7547317
Unavailable
4
Nut, Flange
7547317
Unavailable
4
Nut, Flange
7547317
Unavailable
5
ISOLATOR-M10X1.5,M/F,65 DURO
3023594
$30.88
5
ISOLATOR-M10X1.5,M/F,65 DURO
3023594
$30.88
5
ISOLATOR-M10X1.5,M/F,65 DURO
3023594
$30.88
5
ISOLATOR-M10X1.5,M/F,65 DURO
3023594
$30.88
6
BRACKET, ENGINE MOUNT, LH
5251716
$43.99
7
BRACKET, TRANSMISSION, RH
5252091
$43.99
8
BRACKET, ENGINE, MOUNT, RH
5251717
$47.99
9
BRKT-TRANS,LH
5267453
$8.79
10
CLAMP-HOSE, 17/32, GREEN [TRANSMISSION VENTING]
7081432
$3.99
11
LINE, FUEL [TRANSMISSION VENTING]
8450040-600
Unavailable
12
CABLE-TIE,10-102MM,WEATH.-RES.
7080761
$2.39
13
FITTING-VENT LINE,90 [TRANSMISSION VENTING]
5453464
$5.59
