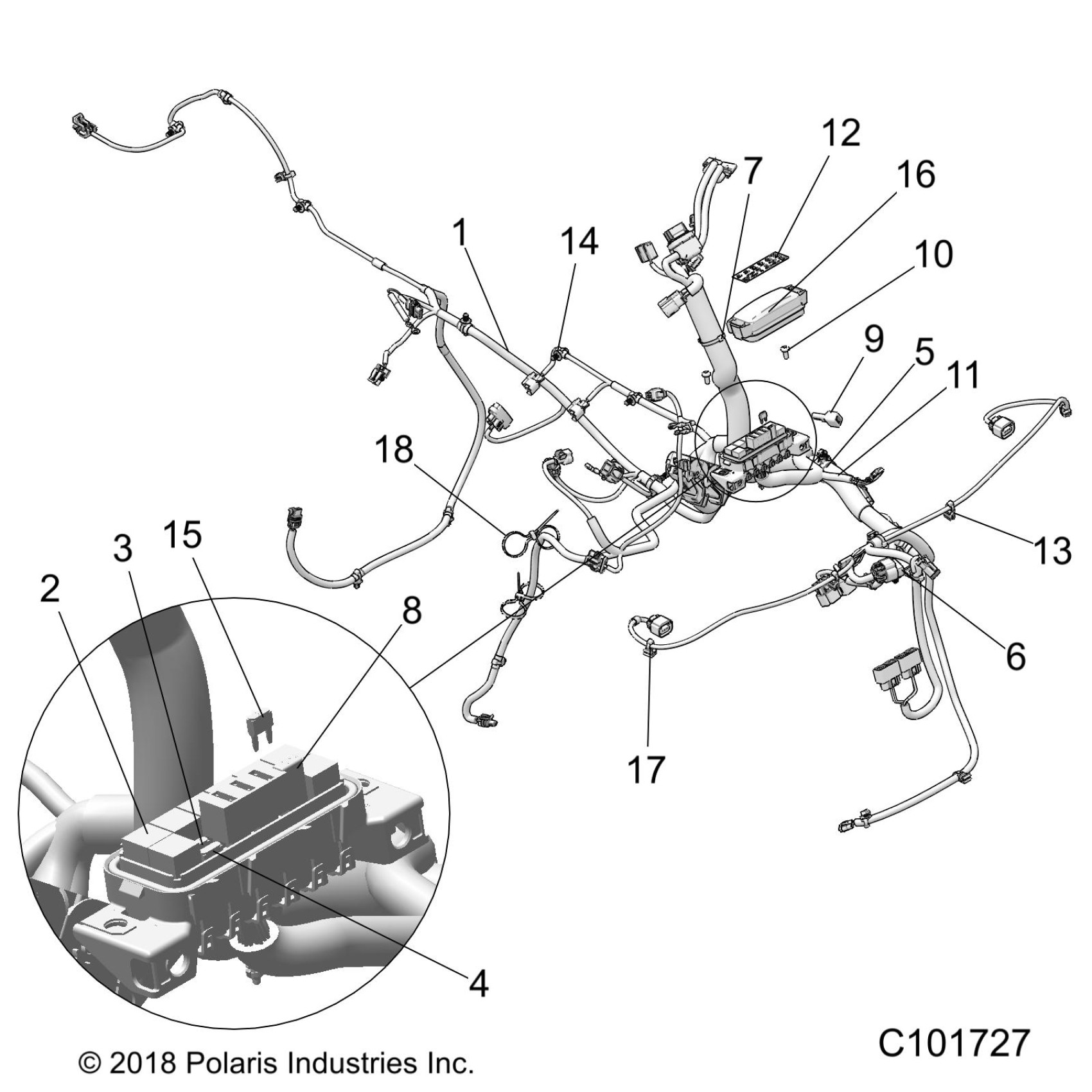

Polaris SCRAMBLER XP 1000 55" (R05) - A20SGE95AK ELECTRICAL, HARNESS - A20SGE95AK (C101727) Diagram

#

Description
Price

1

HARNESS-MAIN,SCR 850/1000 ETC [INCL. 1-6,9,12-17, COVER]

2414453

$959.19

1

KIT, HARNESS, ENGINE TEMP

2878496

$59.99

1

KIT, HARNESS, TPS

2878498

$113.32

2

RELAY-SPST,12V,20A,EPXY,HFA

4016819

$32.37

3

FUSE-PARK,20 AMP

2434017

Unavailable

4

FUSE-IGNITION,10 AMP

2434016

$4.79

5

DIODE, 6AMP

2411035

$51.99

6

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

7

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

7

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

8

BREAKER-CIRCUIT,20 AMP

4011372

$40.46

9

DIODE, 6AMP

2410000

$35.99

10

SCR-HXFL-M6X1.0X30,RIE,DGPNT

7519202

$3.99

11

Kit, Fusible Link, .8 MM

2202607

$39.99

11

Kit, Fusible Link, 1.0 mm

2202670

$35.99

12

LABEL, FUSE BOX

7189179

Unavailable

13

CLIP, EDGE

7081890

$10.39

14

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

15

FUSE-MAIN,30 AMP

2434015

$7.19

16

COVER, FUSEBOX

4015011

$55.99

16

SEAL, FUSE CENTER

5415598

$8.79

17

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

18

CABLE-TIE,DIA6-38MM,DUAL-LOOP

7081916

$4.79
