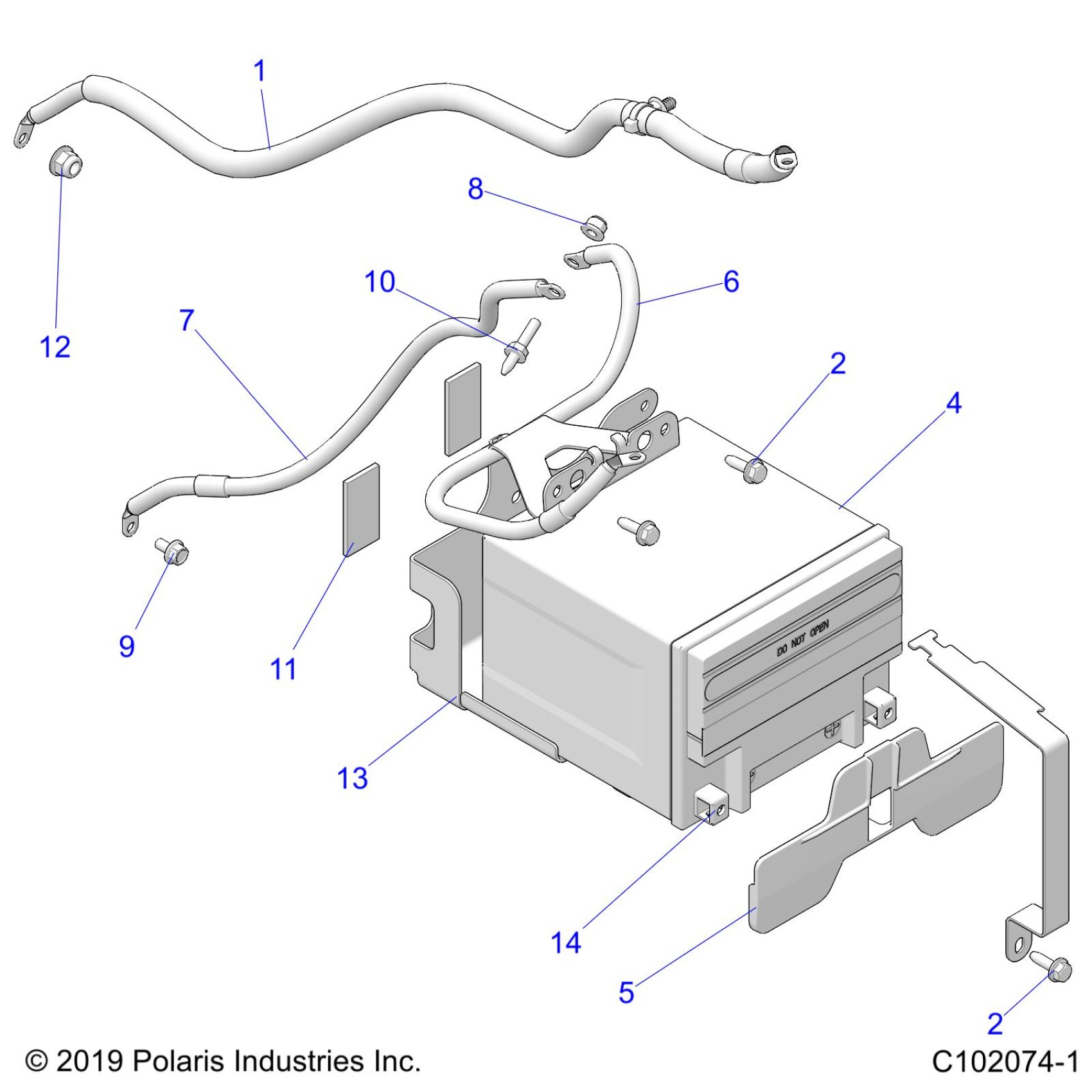

Polaris SCRAMBLER XP 1000 55" (R05) - A20SGE95AK ELECTRICAL, BATTERY - A20SGE95AK (C102074-1) Diagram

#

Description
Price

1

CABLE-BATTERY/SOLENOID

4018146

$59.99

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

2

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

4

BATTERY-30AH,12 VOLT,AGM

4014609

$199.98

5

COVER, BATTERY

5438299

$14.39

6

CABLE, NEGATIVE

4018144

$43.99

7

CABLE, NEGATIVE

4018145

$31.99

8

NUT-M6 FLANGE,NYLOC

7547274

$1.49

9

SCREW, FLANGE

7519145

$3.99

10

STUD

7519333

$7.99

11

PAD-FOAM SHIM,TRUNK

5413465

$5.59

12

NUT-M8X1.25,HXFLG,NYLON INS

7547317

Unavailable

13

BRKT-BATTERY SUPPORT,E-COAT

5267058-329

$51.99

14

BATTERY BOLT KIT

2201357

$11.19
