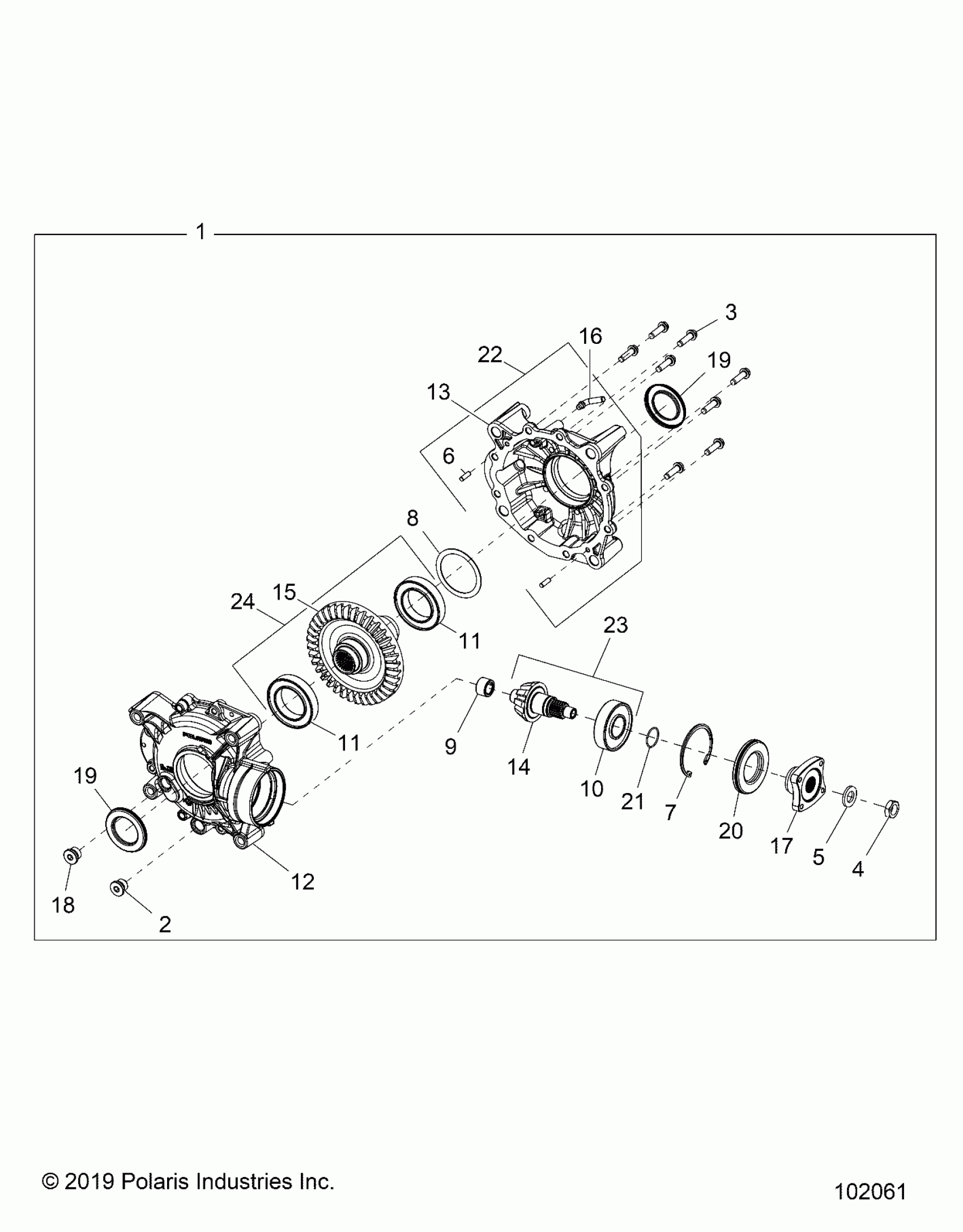

Polaris SCRAMBLER XP 1000 55" (R05) - A20SGE95AK DRIVE TRAIN, REAR GEARCASE INTERNALS - A20SGE95AK (102061) Diagram

#

Description
Price

1

ASM-REAR DRIVE [INCL. ALL]

1334288

$695.19

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

4

NUT, HEX

3234776

$10.39

5

WASHER, LOCKING

3234777

$43.99

6

PIN, DOWEL 6 X 20

3234330

$7.19

7

RING, RETAINING

3234158

$23.99

8

SHIM

3233581

$39.59

9

BEARING, NEEDLE

3234799

$15.99

10

BEARING, BALL

3233714

$31.99

11

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

11

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

12

CASE, RH

3236317

$243.99

13

CASE, LH

3236148

$255.99

14

GEAR, PINION, 10T

3234798

$163.99

15

GEAR, RING 37T

3234792

Unavailable

16

TUBE, VENT

3234230

$9.59

17

COUPLER

3234782

$99.99

18

PLUG, M18 X 1.5 [CHECK/FILL]

3234755

$27.99

19

SEAL, TRIPLE LIP

3235052

$31.99

19

SEAL, TRIPLE LIP

3235052

$31.99

20

SEAL, TRIPLE LIP

3235051

$31.99

21

O-RING

3234785

$9.59

22

SUBASSEMBLY, COVER LH

3234937

$147.99

23

SUBASSEMBLY, PINION

3236485

$167.99

24

SUBASSEMBLY, GEAR

3236486

$667.74
