Description

Price

1

ASM-TRANS 850,BOSS/LUK [INCL. ALL]

1334154

$2,719.19

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW, TORX, PAN HD M6 X 1 X 16

3234309

$7.19

3

SCREW, TORX, PAN HD M6 X 1 X 16

3234309

$7.19

4

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

5

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30

3234634

$13.59

6

NUT, LOCK HEX FLANGE, NYLON 5/16-24

3233961

$2.79

7

WASHER, THRUST, .500 X .937 X .063

3234636

$7.99

8

WASHER, THRUST, .625 X 1.000 X .063

3234637

$11.19

9

PIN, DOWEL 6 X 20

3234330

$7.19

10

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

11

RING, SNAP

3233834

$10.39

12

RING RTNG, IRR 7200-118

3233699

$7.19

13

RING, RETAINING EXTERNAL SHR-66

3234318

$3.19

14

RING, RETAINING BASIC, EXTERNA

3234327

$7.19

15

RING, RETAINING BASIC, INTERNAL 62MM

3234741

$9.59

16

RING, RETAINING BASIC, EXTERNAL SHR-50

3234639

$10.39

17

RING, RETAINING, EXTERNAL USC-112

3234641

$12.79

18

SHAFT, INPUT 25T REM

3235063

$315.99

19

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

20

WASHER, THRUST, 1.300 X .995 X .065

3234248

$9.59

21

SHIM, 1.35 OD X .818 ID

3234643

$31.99

21

SHIM, 1.35 OD X .818 ID

3234643

$31.99

22

SHIM, 1.170 OD X .675 ID

3234644

$12.79

23

WASHER, THRUST, 1.568 OD X .1.110 ID

3234646

$23.99

24

WASHER, THRUST, � 33 X � 29 X 1.5

3234757

$11.19

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

25

BEARING-BALL,6307 C3,35X80X21

3233018

$27.99

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

26

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

27

BEARING

3233020

$47.99

28

BEARING-BALL 6007 C3 35 X 62 X 14

3233265

$39.99

29

BEARING BALL,6304STD 20X52X15

3234651

$15.99

30

BEARING, BALL, 6203 C3 17X40X12

3234274

$27.99

31

BEARING, NEEDLE, SPLIT CAGE

3234759

$15.99

32

BEARING, BALL, 6303 17X47X14

3234652

$15.99

33

BEARING, NEEDLE, CAGE ASSY 20X24X10

3234655

$15.99

34

BEARING, NEEDLE, 28 X 33 X 13

3234656

$15.99

35

SPRING, COMPRESSION, .648 O.D. X 1.33

3234687

$7.99

36

SPRING, WAVE, 1.60 ID X .375

3234688

$10.39

37

SPRING, PARK PAWL, TORSION

3234787

$23.99

38

SPRING, COMPRESSION, .450 OD X 1.58

3234790

$19.99

39

GEARCASE GTO, COVER MACH

3234689

$351.99

40

BELLHOUSING, MACH

3235196

$43.99

41

GEARCASE, MAIN, GTO MACH

3235428

$299.99

42

PAWL, PARK

3234692

Unavailable

43

GEAR, SECTOR 38T

3234694

$27.99

44

BULLET DETENT

3234695

$31.99

45

SHAFT, REVERSE 53T

3234774

$195.99

46

GEAR, HELICAL 42T

3235133

$75.99

47

SHAFT, INPUT

3235194

$231.99

48

SHAFT, OUTPUT

3235195

$227.99

49

TUBE, VENT, 90 -1/4" HOSE

3234230

$9.59

49

TUBE, VENT, 90 -1/4" HOSE

3234230

$9.59

50

GEAR, 67T

3234706

$87.99

51

SPROCKET 48T, 6-FACE

3234707

$35.99

52

SHAFT, SHIFT, BELLCRANK

3234712

$63.99

53

RAIL, SHIFT SHAFT

3234714

$27.99

54

PLUG, DETENT

3234715

$35.99

55

RAIL, PARK SHAFT

3234716

$27.99

56

DOG, ENGAGEMENT, GTO, LOW

3234718

$175.99

57

KNOCK PIPE

3234765

$12.79

57

KNOCK PIPE

3234765

$12.79

58

FORK, SHIFT

3234766

$83.99

59

DOG, ENGAGEMENT, GTO, HIGH

3235190

$67.99

60

DOG, ENGAGEMENT, GTO, REV/LOW

3235341

$171.99

61

FORK, SHIFT

3235342

$83.99

62

SPROCKET, 23T

3236336

$55.99

63

SPROCKET, 44T

3236337

$70.39

64

SUBASSY, SWITCH SHAFT

3234767

$115.99

65

SUBASSY, OUTPUT, FRONT W/BEARING (#25)

3234723

$207.99

66

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#25 & #28)

3235191

$307.99

67

KIT, GTO, PRIMARY SHIM PACK

2204268

$39.99

68

SUBASSY, BEARING COVER

3235198

$23.99

69

KIT, LUK, INPUT SHAFT SHIM PACK

2204343

$31.99

70

BELLCRANK, 15T SPLINE

3234724

$23.99

71

Deflector, Oil

3234725

$12.79

72

PLUG, M18 X 1.5

3234755

$27.99

73

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

74

CHAIN SILENT, 0.75 X .375P X 64P

3235245

$195.99

75

SWITCH, ROTARY, 2 PIN RESISTIVE

7662383

$111.99

76

SENSOR-SPEED,TRANS

4013908

Unavailable

77

SEAL, 35X62X8

3234769

$43.99

78

SEAL, TRIPLE LIP, 0.984X1.850X0.315 VITON

3234892

$35.99

78

SEAL, TRIPLE LIP, 0.984X1.850X0.315 VITON

3234892

$35.99

78

SEAL, TRIPLE LIP, 0.984X1.850X0.315 VITON

3234892

$35.99

78

SEAL, TRIPLE LIP, 0.984X1.850X0.315 VITON

3234892

$35.99

79

O-RING -N70, 9.5 MM X 2 MM

3236171

$10.55

80

O-RING, -113 VITON

3233840

$11.19

81

O-RING, -014 VITON

3233828

$6.79

82

O-RING, .530 I.D X .082 WIDE

3234729

$13.75

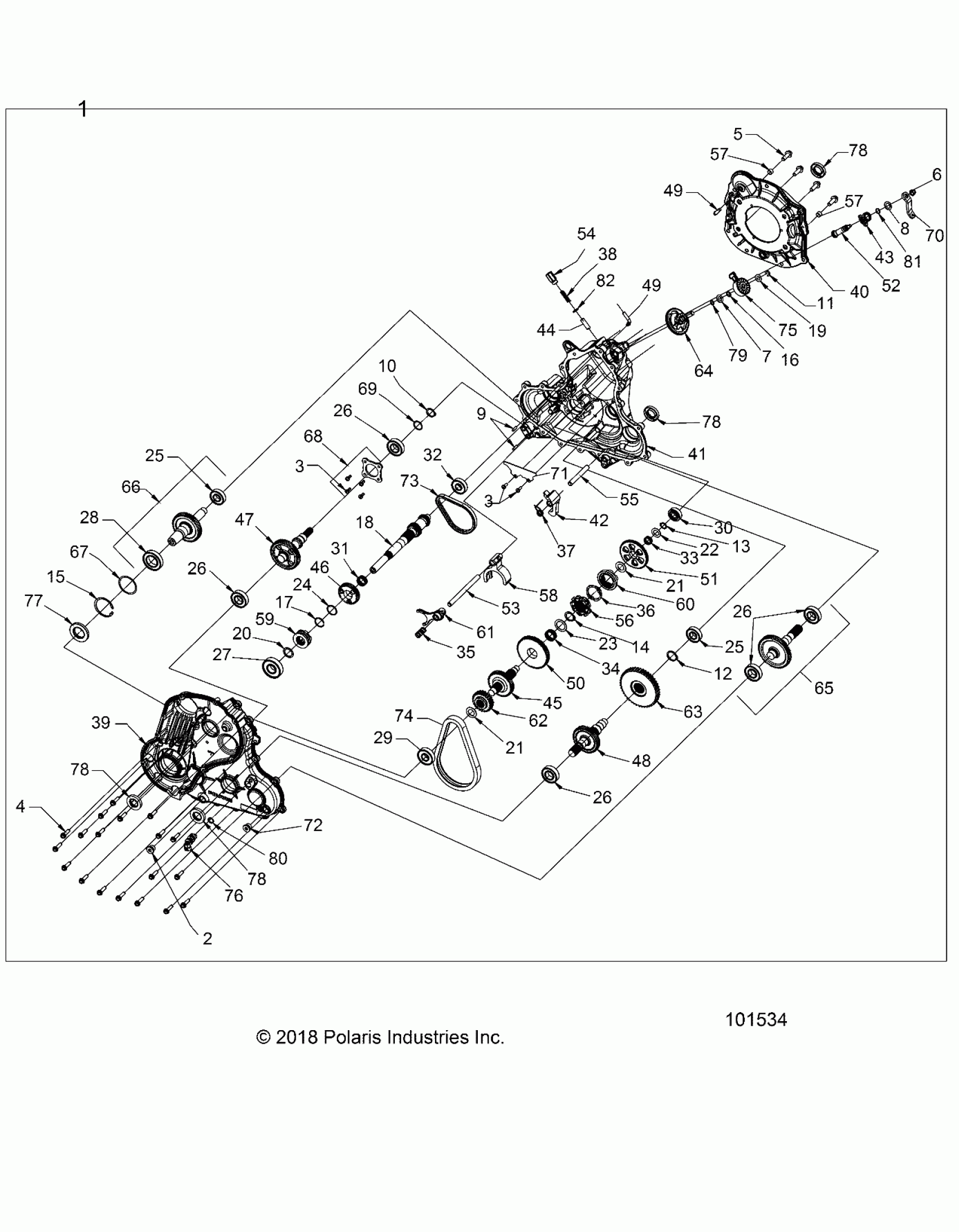

Polaris SCRAMBLER XP 1000 55" (R05) - A20SGE95AK DRIVE TRAIN, MAIN GEARCASE - A20SGE95AK (101534) Diagram

ASM-TRANS 850,BOSS/LUK [INCL. ALL]

PLUG, M18 X 1.5 MAGNETIC

SCREW, TORX, PAN HD M6 X 1 X 16

SCREW, TORX, PAN HD M6 X 1 X 16

SCREW-HEXFLANGEHEAD,M8X1.25X30

SCREW, HEX FLANGE HEAD, M10 X 1.5 X 30

NUT, LOCK HEX FLANGE, NYLON 5/16-24

WASHER, THRUST, .500 X .937 X .063

WASHER, THRUST, .625 X 1.000 X .063

PIN, DOWEL 6 X 20

RING,RETAINING BASIC,EXTERNAL 0.984

RING, SNAP

RING RTNG, IRR 7200-118

RING, RETAINING EXTERNAL SHR-66

RING, RETAINING BASIC, EXTERNA

RING, RETAINING BASIC, INTERNAL 62MM

RING, RETAINING BASIC, EXTERNAL SHR-50

RING, RETAINING, EXTERNAL USC-112

SHAFT, INPUT 25T REM

WASHER,THRUST,0.446 X 0.88 X 0.025

WASHER, THRUST, 1.300 X .995 X .065

SHIM, 1.35 OD X .818 ID

SHIM, 1.35 OD X .818 ID

SHIM, 1.170 OD X .675 ID

WASHER, THRUST, 1.568 OD X .1.110 ID

WASHER, THRUST, � 33 X � 29 X 1.5

BEARING-BALL,6307 C3,35X80X21

BEARING-BALL,6307 C3,35X80X21

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING

BEARING-BALL 6007 C3 35 X 62 X 14

BEARING BALL,6304STD 20X52X15

BEARING, BALL, 6203 C3 17X40X12

BEARING, NEEDLE, SPLIT CAGE

BEARING, BALL, 6303 17X47X14

BEARING, NEEDLE, CAGE ASSY 20X24X10

BEARING, NEEDLE, 28 X 33 X 13

SPRING, COMPRESSION, .648 O.D. X 1.33

SPRING, WAVE, 1.60 ID X .375

SPRING, PARK PAWL, TORSION

SPRING, COMPRESSION, .450 OD X 1.58

GEARCASE GTO, COVER MACH

BELLHOUSING, MACH

GEARCASE, MAIN, GTO MACH

PAWL, PARK

GEAR, SECTOR 38T

BULLET DETENT

SHAFT, REVERSE 53T

GEAR, HELICAL 42T

SHAFT, INPUT

SHAFT, OUTPUT

TUBE, VENT, 90 -1/4" HOSE

TUBE, VENT, 90 -1/4" HOSE

GEAR, 67T

SPROCKET 48T, 6-FACE

SHAFT, SHIFT, BELLCRANK

RAIL, SHIFT SHAFT

PLUG, DETENT

RAIL, PARK SHAFT

DOG, ENGAGEMENT, GTO, LOW

KNOCK PIPE

KNOCK PIPE

FORK, SHIFT

DOG, ENGAGEMENT, GTO, HIGH

DOG, ENGAGEMENT, GTO, REV/LOW

FORK, SHIFT

SPROCKET, 23T

SPROCKET, 44T

SUBASSY, SWITCH SHAFT

SUBASSY, OUTPUT, FRONT W/BEARING (#25)

SUBASSEMBLY, PRIMARY SHAFT W/BEARINGS (#25 & #28)

KIT, GTO, PRIMARY SHIM PACK

SUBASSY, BEARING COVER

KIT, LUK, INPUT SHAFT SHIM PACK

BELLCRANK, 15T SPLINE

Deflector, Oil
