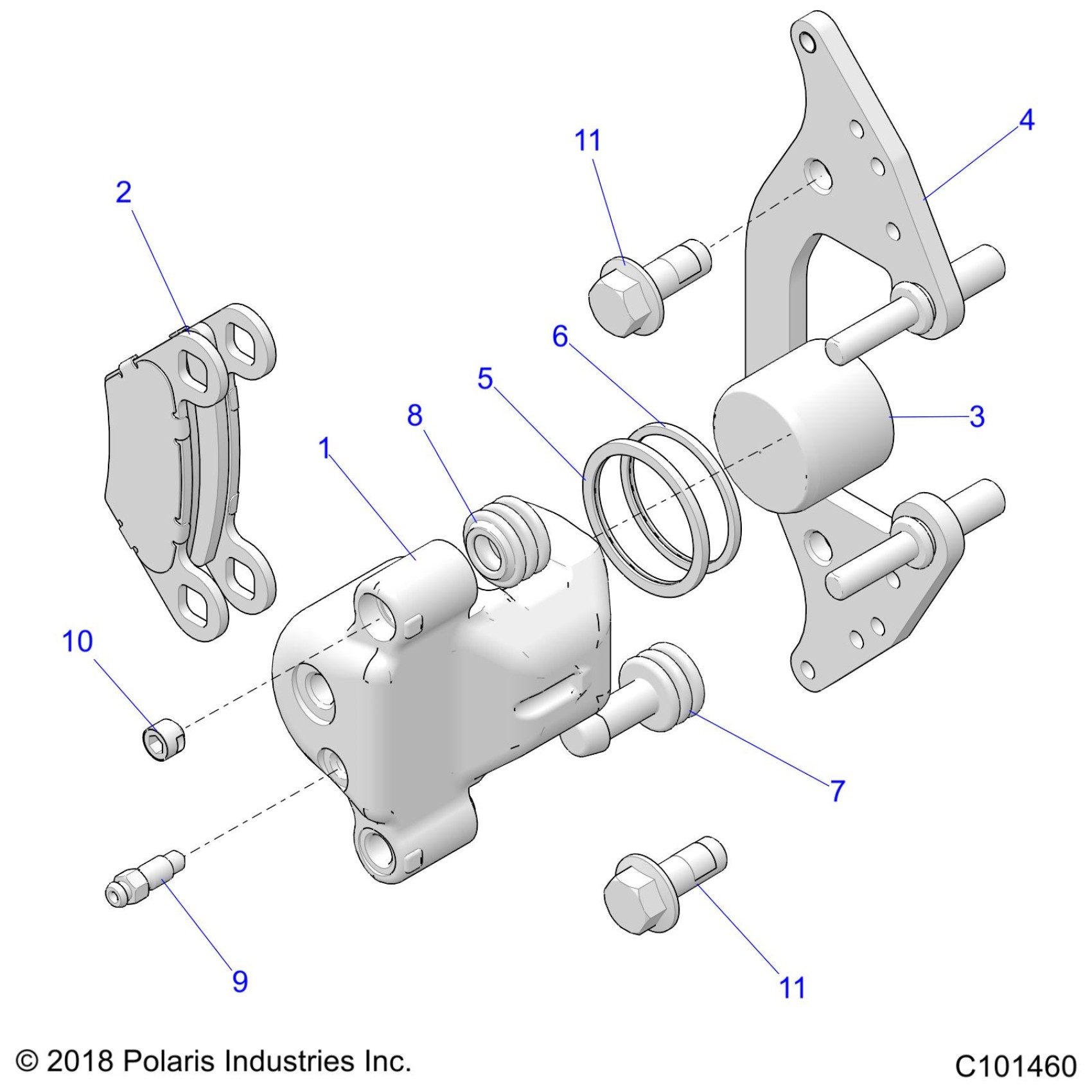

Polaris SCRAMBLER XP 1000 55" (R05) - A20SGE95AK BRAKES, FRONT CALIPER - A20SGE95AK (C101460) Diagram

ASM-CLPR,BRK,WL,1.5,FRT,LH,257 [INCL. 1-10][TO 8/23/2021]

1913272

$295.30

ASM-CLPR,BRK,WL,1.5,FRT,RH,257 [INCL. 1-10][TO 8/23/2021]

1913273

$295.30

ASM-CLPR,BRK,WL,1.5,FRT,LH,257 [INCL. 1-10][FRM 8/23/2021]

1914122

$295.30

ASM-CLPR,BRK,WL,1.5,FRT,RH,257 [INCL. 1-10][FRM 8/23/2021]

1914123

$280.78

KIT, BRAKE PAD [INCL. 2 PADS]

2205606

$28.49

PISTON-CALIPER,1.50 (MACH)

5132829

$40.46

ASM., CALIPER MOUNT

1913093

$80.94

SEAL-CALIPER INNER,1.50"

5412010

$8.54

SEAL-CALIPER,OUTER,1.50" [TO 8/23/2021]

5412011

$7.27

SEAL-CALIPER INNER,1.50" [FRM 8/23/2021]

5412010

$8.54

BOOT-PIN BUSHING

5412505

$3.22

BOOT-PIN SEAL

5412506

$3.22

SCREW, BLEEDER

7081343

$5.56

SCREW, SOCKET SET

7518863

$9.52

BOLT, FLANGE [CALIPER MOUNTING]

7518760

$9.52

BOLT, FLANGE [CALIPER MOUNTING]

7518760

$9.52
