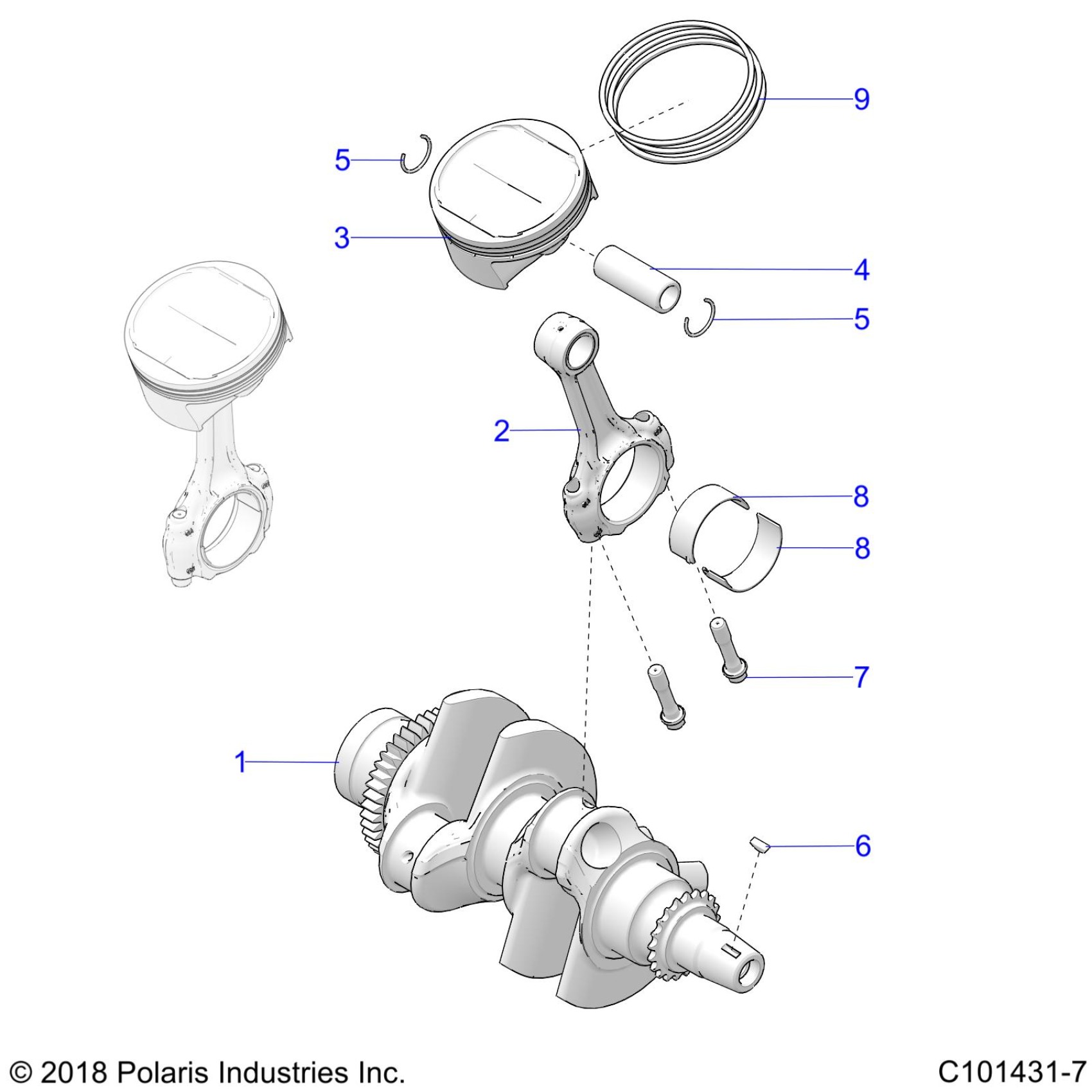

Polaris SCRAMBLER XP 1000 55 LLP 49S (R02) - A25SGE95AT ENGINE, CRANKSHAFT and PISTON - A25SGE95AT (C101431-7) Diagram

KIT-CRANKSHAFT 952 SPM [INCL. CRANK, MAIN BEARING SET]

2209895

$1,299.99

ASM-CONROD,120MM [INCL. 7, ROD, CAP, BUSHING]

1205821

$284.99

KIT, PISTON [INCL. PISTON, PIN, CLIPS, ALL RINGS]

2209896

$180.49

PIN, PISTON

----

Unavailable

CIRCLIP, PISTON PIN

----

Unavailable

CIRCLIP, PISTON PIN

----

Unavailable

KEY-WOODRUFF,4X5

7721122

$7.84

BOLT

7519263

Unavailable

BEARING-CON ROD,RED

3514998-015

$21.81

BEARING-CON ROD,WHITE

3514998-016

$21.81

BEARING-CON ROD,BLUE

3514998-027

$21.81

BEARIN-CON ROD,YELLOW

3514998-053

$21.81

BEARING-CON ROD,RED

3514998-015

$21.81

BEARING-CON ROD,WHITE

3514998-016

$21.81

BEARING-CON ROD,BLUE

3514998-027

$21.81

BEARIN-CON ROD,YELLOW

3514998-053

$21.81

KIT, PISTON RINGS 952 SPM [CONTAINS UPPER, LOWER, OIL CONTROL RING]

2209897

$90.46
