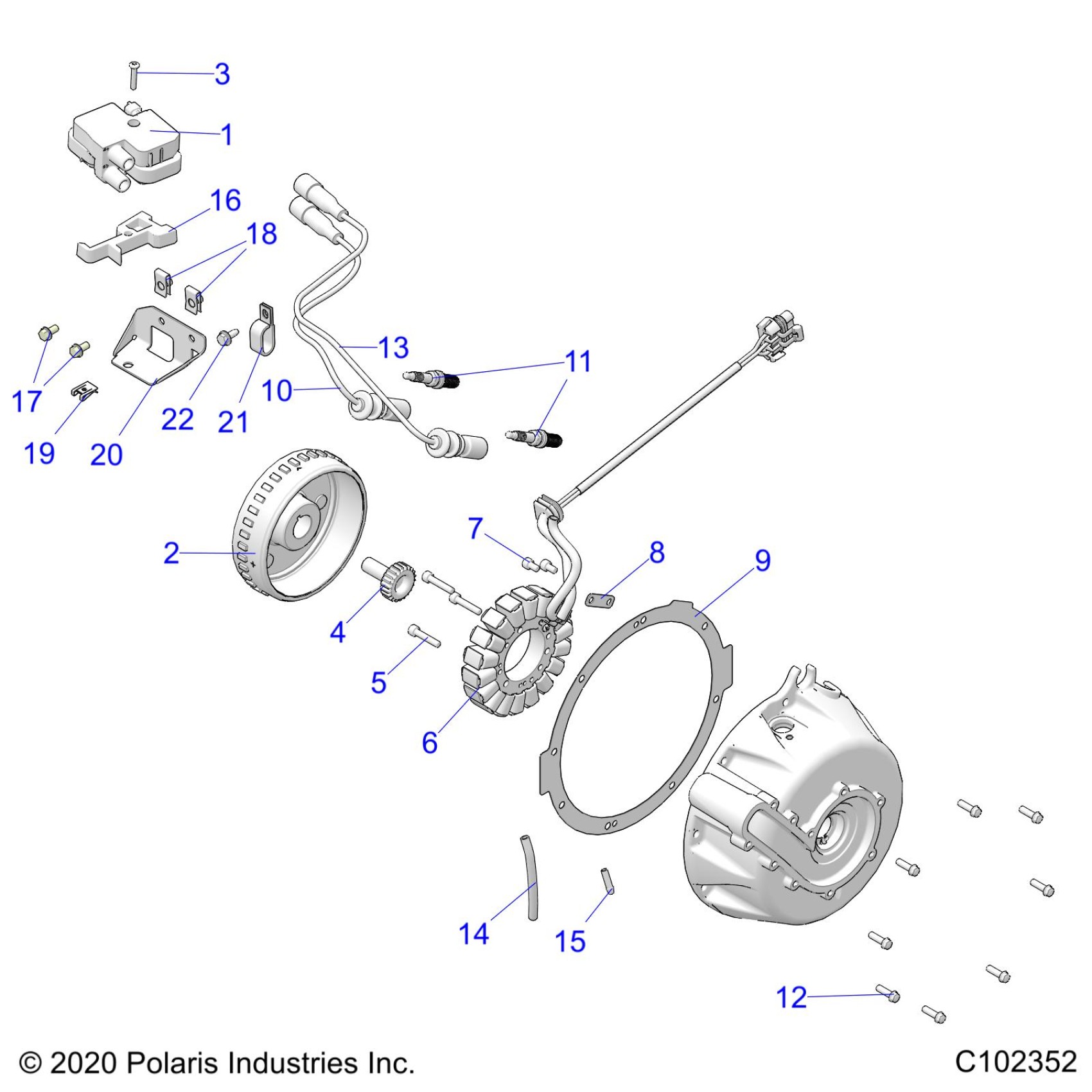

Polaris SCRAMBLER XP 1000 55 LLP 49S (R02) - A25SGE95AT ELECTRICAL, IGNITION SYSTEM - A25SGE95AT (C102352) Diagram

Description

Price

COIL-EFI

4010425

$242.84

FLYWHEEL, 560 WATT

4080627

$352.37

SCR-#10X1 1/2 TX PN PLASTITE-B

7517566

$3.97

BOLT, WATER PUMP DRIVE, LH

5140078

$31.75

SCR-M6X1.0X30,HX/SOC/CP-Y/D

7527858

$6.99

STATOR,560W

4080574

$571.25

SCR-M6X1.0X10,SHCS

7527859

$4.76

RETAINER-STATOR WIRE

5271377

$6.46

GASKET, STATOR COVER

5813680

$40.46

WIRE, SPARK PLUG, PTO

4082591

$56.65

SPARKPLUG, 12MM

3022553

$7.94

SCREW-HXFL-M6X1.0X20 8.8 ZY3

7518576

$3.17

WIRE, SPARK PLUG, MAG

4082592

$60.70

TUBING-NYLON 5MMX100MM BLK

8360209

$14.56

FITTING-6 MM,BRASS

7055562

$13.49

SPACER-COIL MOUNT

5436577

$3.97

SCR-HXFL-1/4-20X0.5 GR5.1 ZY3

7515133

$3.97

NUT-CHIMNEY 1/4-20,GR-5

7670096

$1.59

NUT, U-TYPE, AB

7670157

$3.97

BRACKET, COIL MOUNT, BLACK

5256478-329

$48.56

CLAMP-DBL TUBE,.562 VNLCOATED

7081364

$1.40

BOLT,M6X1.0X15,HXFLG,TAP/T-OD

7518513

$4.76
