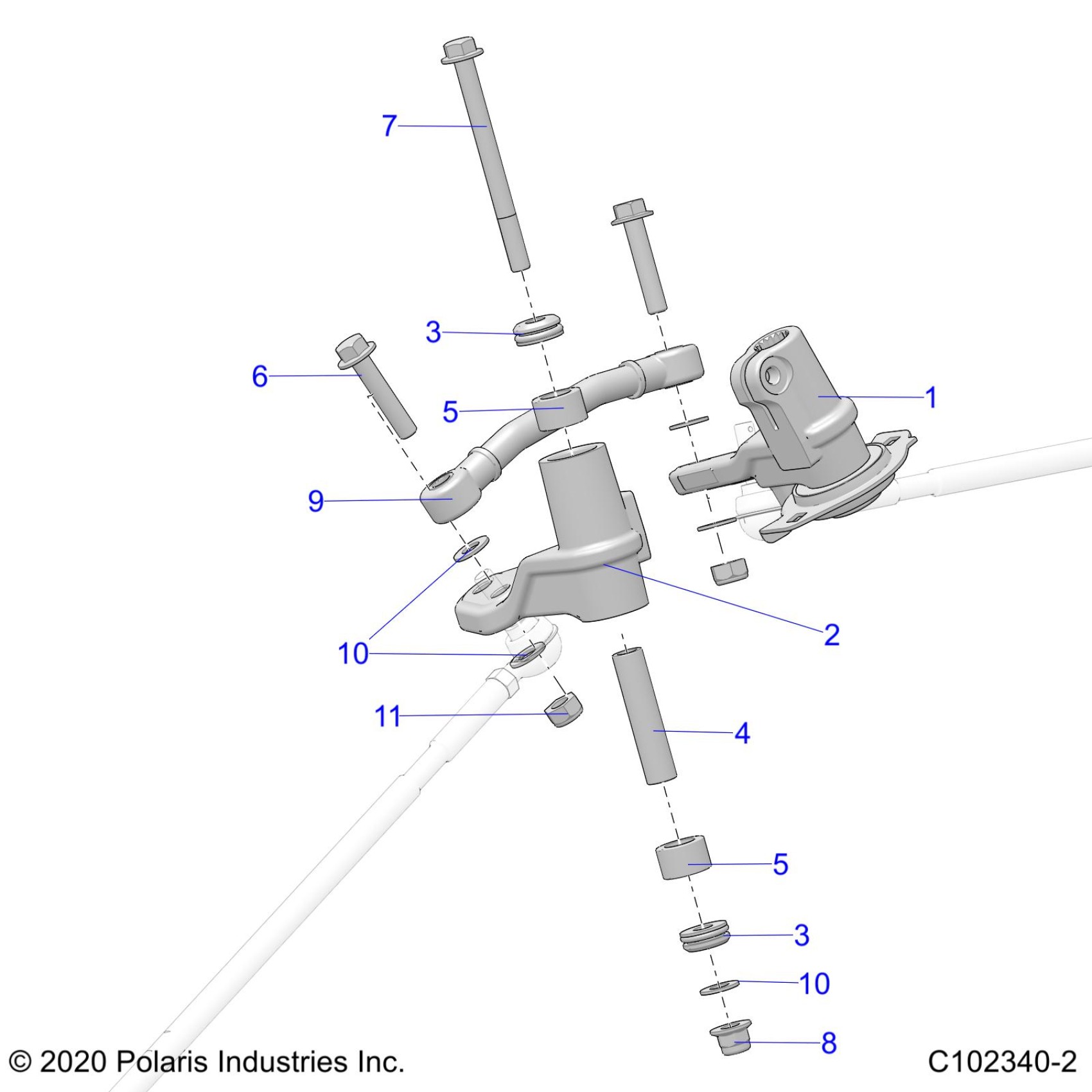

Polaris SCRAMBLER XP 1000 55" 49S (R03) - A24SGE95AT STEERING, IDLERS AND LINKS - A24SGE95AT (C102340-2) Diagram

#

Description

Price

1

ASM-IDLER,STEERING,LH

1824742

$168.87

2

ASM-IDLER,STEERING,RH [INCL. 2-5]

1824743

$115.54

2

IDLER-STEERING,RH,MACH

5142901

$102.21

3

ASM-PIVOT CAP, SEALED, M10

1543611

$5.65

3

ASM-PIVOT CAP, SEALED, M10

1543611

$5.65

4

SHAFT-PIVOT, SHORT, M10

5139990

$5.65

5

BUSHING-STANDARD, SUSP, M10

5452233

$2.38

5

BUSHING-STANDARD, SUSP, M10

5452233

$2.38

6

BOLT-M10X1.25X50,HXFLG-OLIVE D

7518559

$5.56

7

SCR-HXFL-M10X1.25X115 10.9 ZOD

7519365

$13.49

8

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

9

ASM-DRAG LINK

1523255

$69.99

10

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

10

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.98

11

NUT-M10X1.25,NYLOC-OLIVE D

7547362

$3.97
