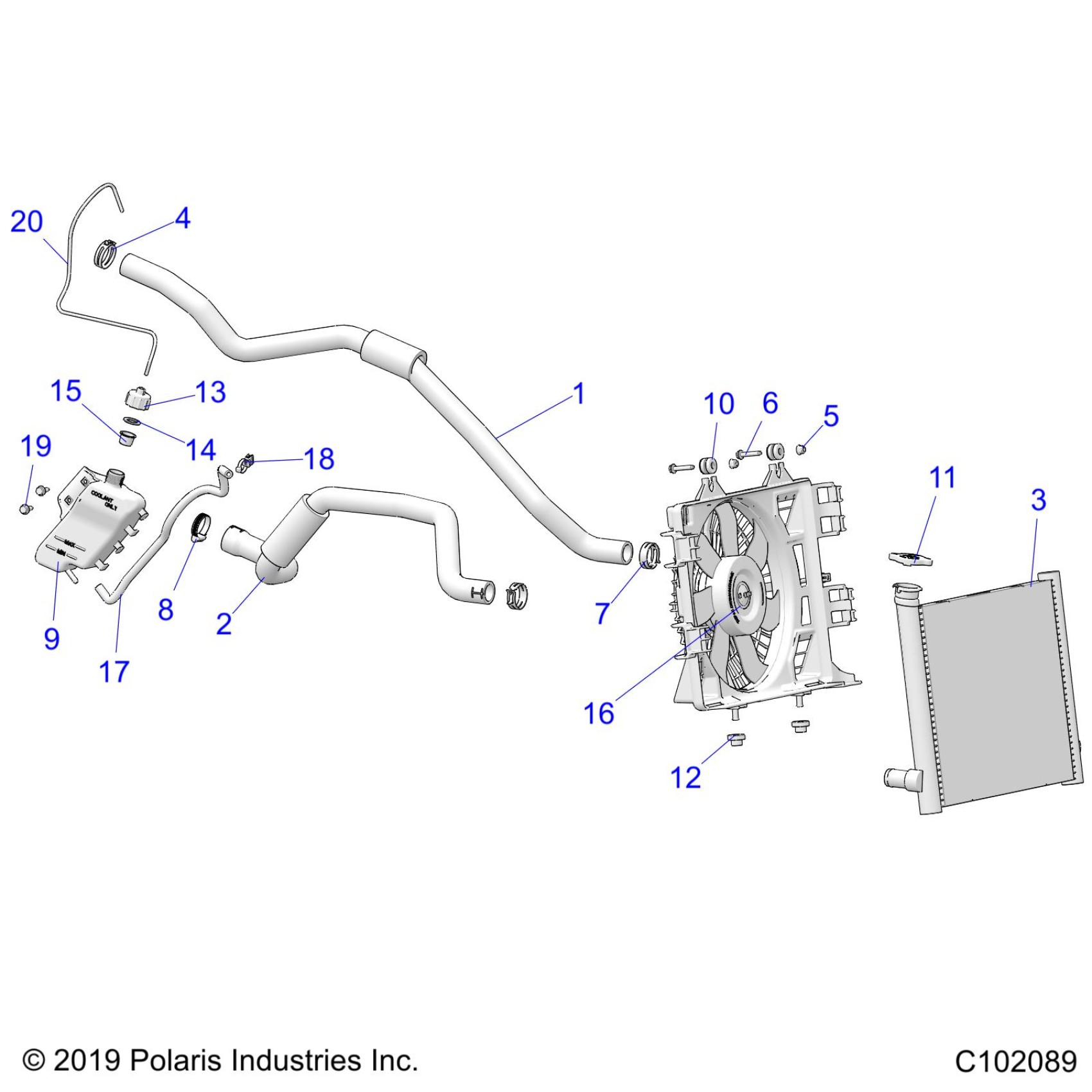

Polaris SCRAMBLER XP 1000 55" 49S (R03) - A24SGE95AT ENGINE, COOLING SYSTEM - A24SGE95AT (C102089) Diagram

#

Description
Price

1

ASM-COOLANT,SUPPLY [INCL. HOSE, FOAM]

1241351

Unavailable

1

HOSE-RADIATOR,ENGINE IN,25MM

5416687

Unavailable

1

FOAM-COOLANT,85MM

5814822-85

Unavailable

2

ASM-COOLANT,RETURN [INCL. HOSE, FOAM]

1241399

$71.99

2

HOSE-RADIATOR,ENGINE OUT,25MM

5416686

$71.99

2

FOAM-COOLANT,105MM

5814895-105

$2.79

3

RADIATOR

1241264

$339.99

3

ASM-RADIATOR,WL,LED [INCL. RADIATOR, CAP, FAN]

1241448

$387.99

4

SPRINGBAND-CLAMP 35/12,BLK

7080844

$10.39

5

NUT-HXFL-M6X1.0 8 ZTB NYL

7548027

$1.59

6

SCR-HXFL-M6X1.0X30,RIE,DGPNT

7519202

$3.99

7

SPRINGBAND-CLAMP 32/12,BROWN

7080843

$3.99

8

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

9

ASM.,BOTTLE,COOLANT RECOVERY [INCL. 9, 13-16,18]

1241323

$91.99

9

BOTTLE, COLLANT RECOVERY

5455427

$71.99

10

ASM., GROMMET AND INSERT

5413509

$15.99

11

CAP, PRESSURE

1240466

$55.99

12

GROMMET, RADIATOR MOUNT, LOWER

5413510

$15.99

13

CAP, OVER FLOW BOTTLE, W/FITTING

5437635

$4.79

14

GASKET-OVERFLOW CAP

5810279

$2.41

15

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

16

FAN-12",RING,SHROUD,LED

2415280

$259.15

17

LINE, FUEL

8450120-600

$67.99

18

CLIP-EDGE,1-3MM,6-45MM,SERT.

7081808

$5.59

19

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

20

HOSE-POLY,CLEAR,3/16 OD,1/8 ID

8360009-52

Unavailable
