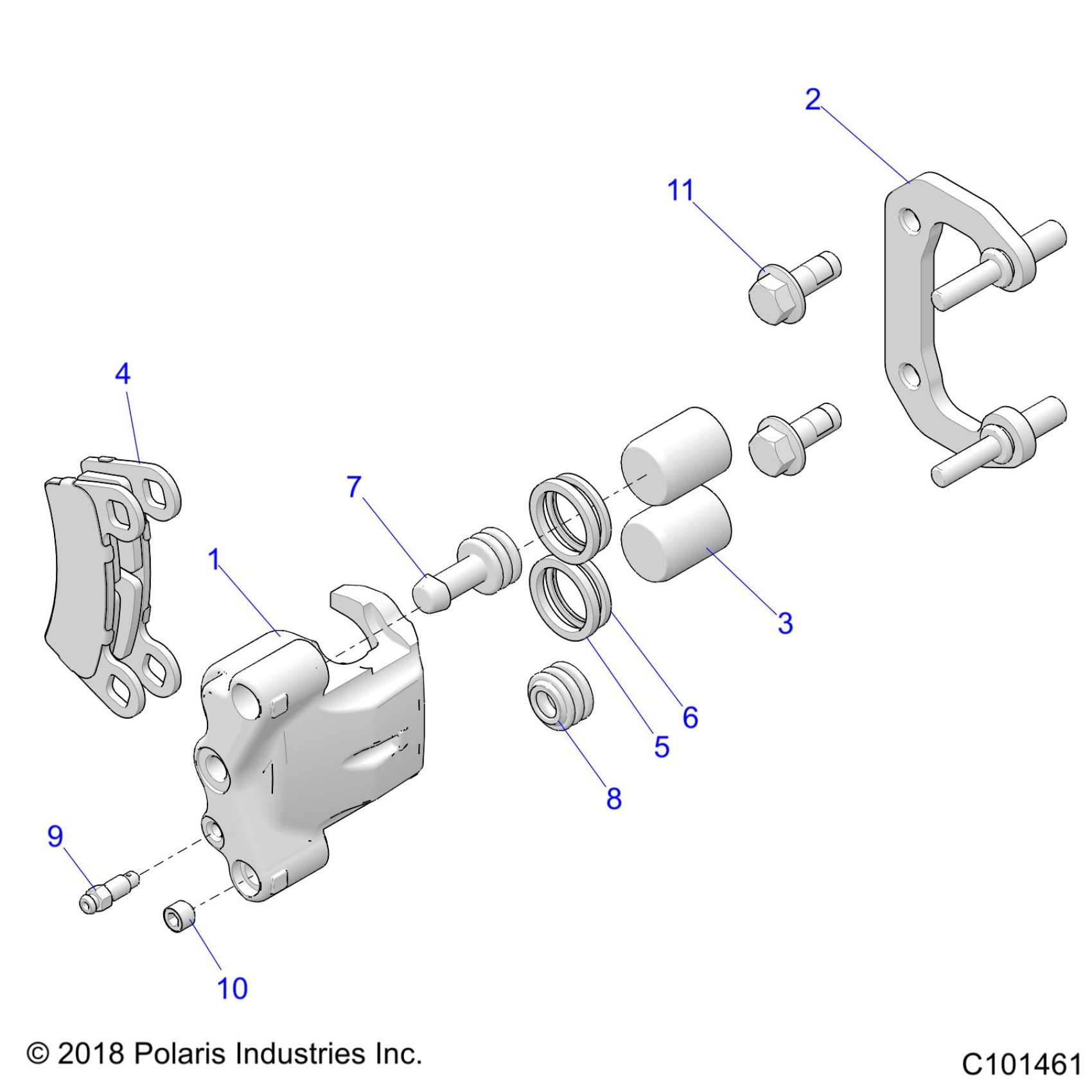

Polaris SCRAMBLER XP 1000 55" 49S (R03) - A24SGE95AT BRAKES, REAR CALIPER - A24SGE95AT (C101461) Diagram

#

Description

Price

1

ASM-CLPR,BRK,WL,DB1.0,LH,257A [INCL. 1-10]

1913274

$271.99

1

ASM-CLPR,BRK,WL,DB1.0,RH,257A [INCL. 1-10]

1913275

$271.99

2

ASM-CALIPER MNT, DB

1913094

$31.99

3

PISTON, BRAKE, LONG

5134941

$35.99

4

K-BRAKE PAD,DUAL BORE,257A [INCL. 2 PADS]

2208701

$42.39

5

SQUARE RING-MOLDED (.134)

5410766

$11.99

6

RING, SQUARE,(1''DIAM.) Substituted by 2200463

5410767

Unavailable

7

BOOT-PIN BUSHING

5412505

$3.19

8

BOOT-PIN SEAL

5412506

$3.19

9

SCR-M7X1.0,BLEEDER,OLIVE D

7081343

$5.59

10

SCR-M10X1.0X8,SOC SET-OD

7518863

$9.59

11

SCR-HXFL-M10X1.25X25 8.8 Z NY [CALIPER MOUNTING]

7518760

$9.59
