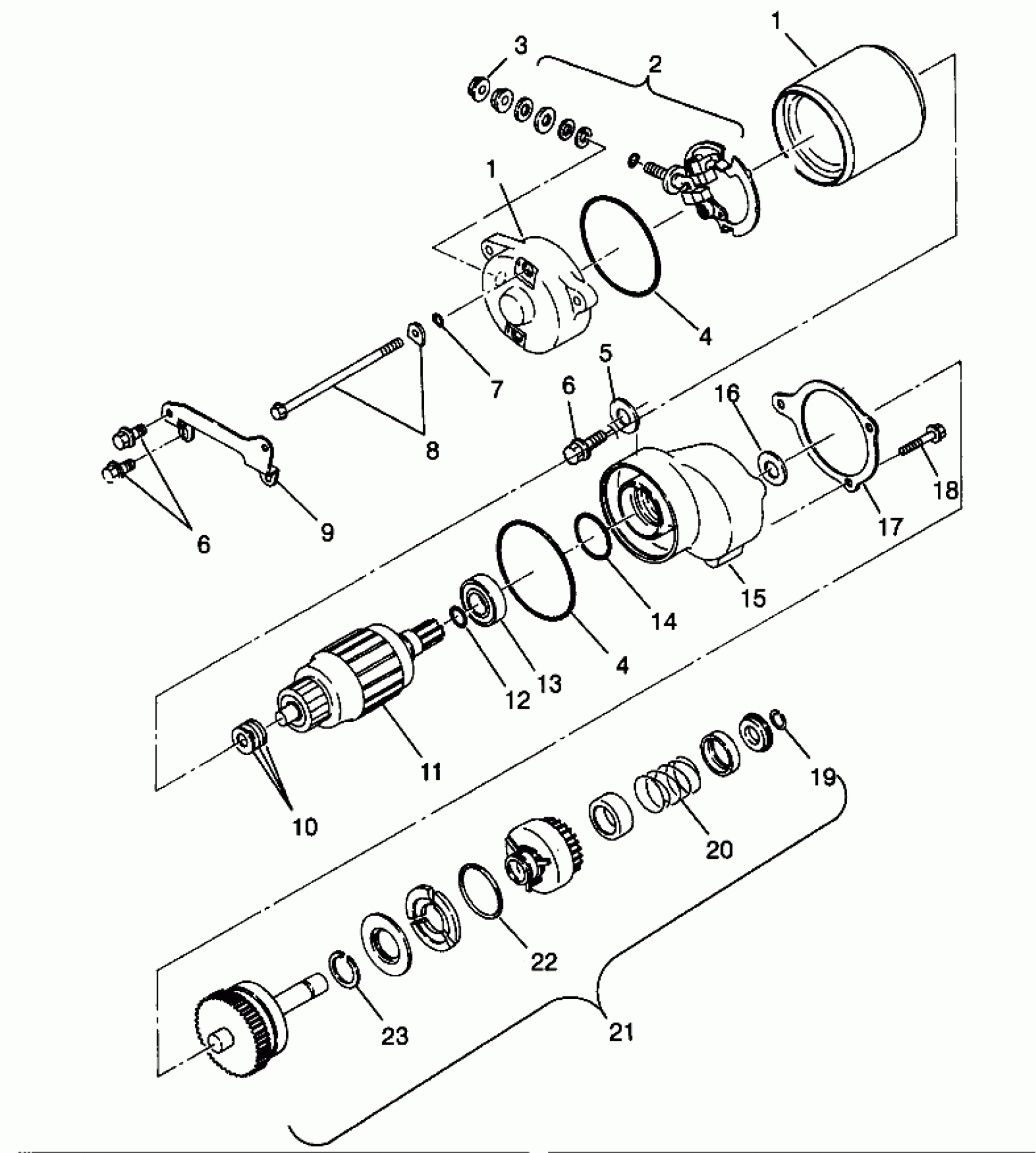

Polaris SCRAMBLER - W967840 STARTING MOTOR Scrambler W967840 (4935823582D005) Diagram

#

Description
Price

-

STARTER MOTOR ASM. Substituted by 3085393 (Incl. 2-4, 7, 8, 10-15 & PN 3085032)

3084403

Unavailable

1

COVER,REAR,STARTER(300-400)

3085032

$82.39

1

MOTOR,STARTING Substituted by 3085392 (Incl. 1-4, 7, 8, 10-16, 19-23)

3085282

Unavailable

1

COVER,REAR,STARTER(300-400)

3085032

$82.39

1

MOTOR,STARTING Substituted by 3085392 (Incl. 1-4, 7, 8, 10-16, 19-23)

3085282

Unavailable

2

BRUSH,COMPL.2-POLE *

3084406

Unavailable

3

NUT, FLANGE(10)

3083649

$3.99

4

RING, RUBBER

3084405

Unavailable

4

RING, RUBBER

3084405

Unavailable

5

GASKET, ALUM,(10) Substituted by 7555998

3082758

$1.19

6

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

6

BOLT, FLANGE(10) Substituted by 3087035

3083568

$3.85

7

O-RING

3084408

Unavailable

8

Bolt, Through

3084407

Unavailable

9

BRACKET Substituted by 3086780

3084214

Unavailable

10

Washer Set

3083754

$2.39

11

ARMATURE ASM. * (Incl. 12, 13)

3084404

$207.99

12

O RING

3083934

Unavailable

13

BALL BEARING

3083777

$31.99

14

O RING

3083741

$9.37

15

COVER, FRONT (Incl. 14)

3085305

$123.02

16

WASHER, GEARSHAFT Substituted by 7555908

3083737

Unavailable

17

GASKET,STARTER(NON-ASBESTOS)

3085283

Unavailable

18

BOLT, FLANGE Substituted by 3086781

3084215

Unavailable

19

CLIP

3084409

$7.19

20

SPRING, RETURN

3084410

$2.47

21

GEAR SHAFT ASM. Substituted by 3085394 (Incl. 16, 19, 20, 22, 23)

3083647

Unavailable

22

SPRING, WEIGHT

3084411

$15.67

23

CLIP

3084412

$9.59
