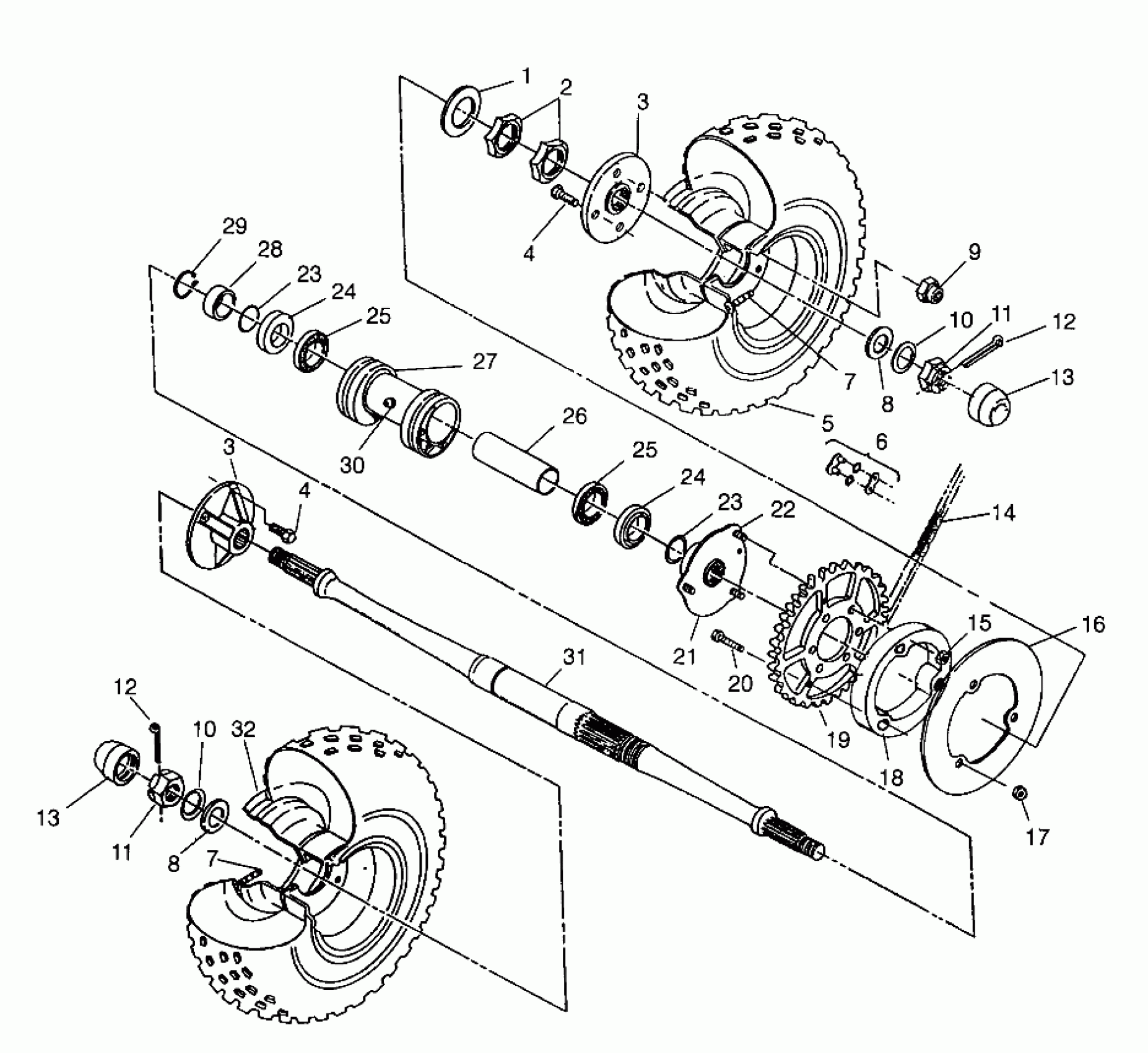

Polaris SCRAMBLER - W967840 REAR WHEEL DRIVE Scrambler W967840 (4935823582C005) Diagram

#

Description
Price

1

WASHER(10)

7555764

Unavailable

2

Nut, Jam

5020468

Unavailable

3

HUB,R.WHEEL Substituted by 5131777

5131284

$88.87

3

HUB,R.WHEEL Substituted by 5131777

5131284

$88.87

4

BOLT, WHEEL(10)

7512673

$3.17

4

BOLT, WHEEL(10)

7512673

$3.17

5

TIRE,REAR,(4X6) (22X11X10)

5410539

Unavailable

6

CONNECTOR LINK,CHAIN

3225026

$32.37

7

VALVE-RIM

1525017

$6.46

7

VALVE-RIM

1525017

$6.46

8

WASHER(10)

7555745

Unavailable

8

WASHER(10)

7555745

Unavailable

9

NUT, RIM(10)

7542723

$1.98

10

WASHER, CONE(10)

7555796

$7.94

10

WASHER, CONE(10)

7555796

$7.94

11

NUT, CASTLE(10)

7543005

Unavailable

11

NUT, CASTLE(10)

7543005

Unavailable

12

PIN, COTTER(10)

7661404

$4.76

12

PIN, COTTER(10)

7661404

$4.76

13

DUSTCOVER, HUB

5411164

$28.32

13

DUSTCOVER, HUB

5411164

$28.32

14

CHAIN, 84P

3224056-084

$145.70

15

NUT LOCK(10)

7542403

Unavailable

16

GUARD,38T SPKT,BLK.ALUM.

5211585-067

Unavailable

17

NUT-LOCK(10)

7542439

$1.19

18

SPACER-SPROCKET GUARD

5630586

Unavailable

19

SPROCKET, 38T

3222065

$113.99

20

BOLT(10)

7515540

$4.76

21

SPROCKET HUB ASM. (Incl. 22)

1520170

Unavailable

22

STUD(10)

7515513

$1.19

23

O RING, 1 5/16(10)

5410415

Unavailable

23

O RING, 1 5/16(10)

5410415

Unavailable

24

SEAL, REAR AXLE

3610013

Unavailable

24

SEAL, REAR AXLE

3610013

Unavailable

25

Bearing, Ball

3515501

$27.78

25

Bearing, Ball

3515501

$27.78

26

TUBE,BEARING SPACER

5010204

Unavailable

27

HOUSING, AXLE

5130663

Unavailable

28

SPACER,BEARING

5010206

Unavailable

29

RING, SNAP(10)

7710405

$4.76

30

FITTING,LUBE.W/BALL CK.(10)

7080306

$3.17

31

AXLE,REAR,HVY.

5020790

$349.99

32

RIM,REAR,WHITE

1520204-133

Unavailable
