PISTON and CRANKSHAFT Scrambler W967840 (4935823582C012)

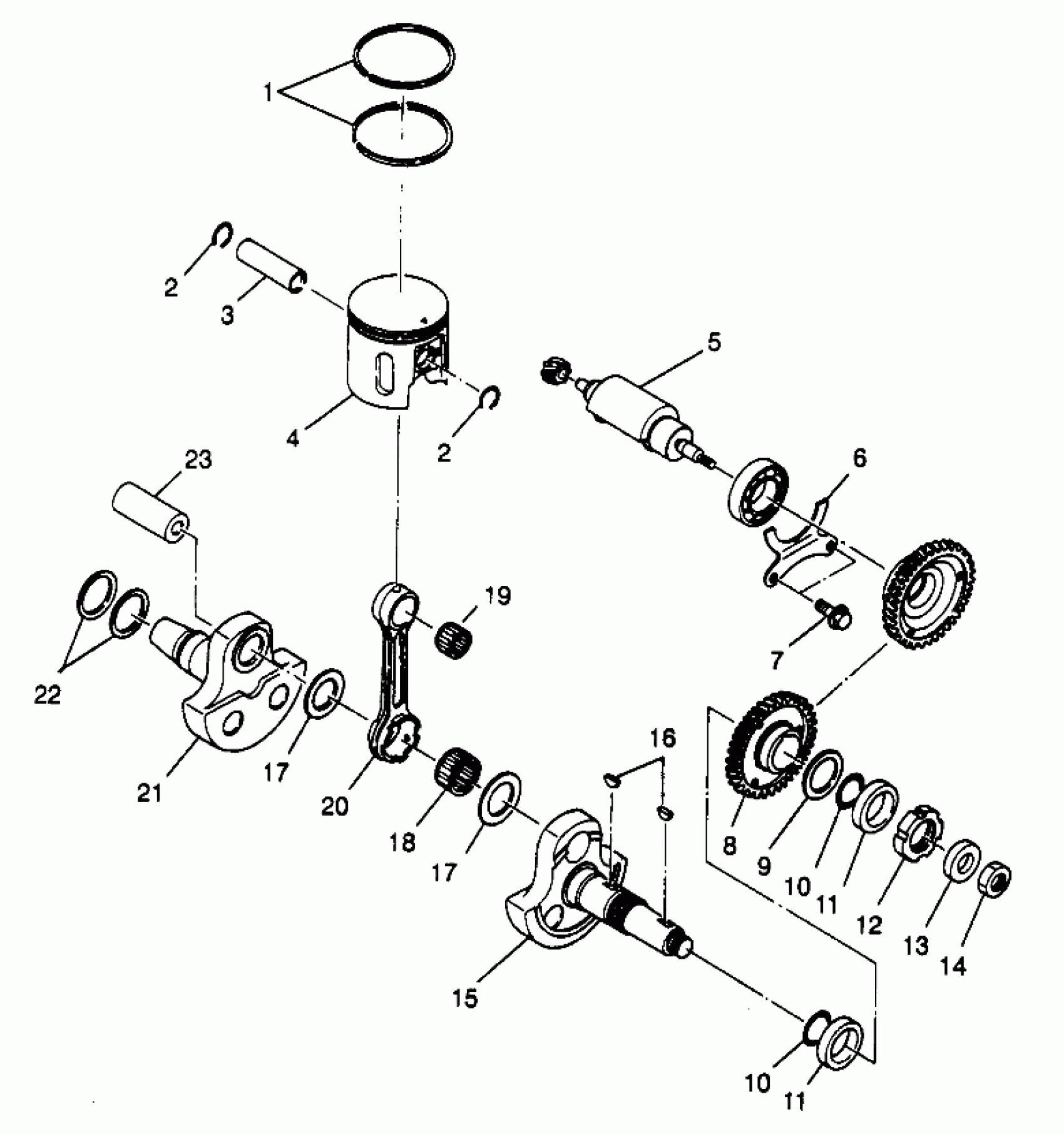

Polaris SCRAMBLER - W967840 PISTON and CRANKSHAFT Scrambler W967840 (4935823582C012) Diagram
#
Description
Price
-
RING,PISTON,(.50MM O/S) (0.50/.020mm O/S)
3084739
$23.99
1
RING,PISTON,(.25MM O/S) * (0.25/.010mm O/S)
3084738
$31.99
1
RING,PISTON,STD. (Std)
3084737
$28.56
2
CLIP,(10)
3084167
$6.39
2
CLIP,(10)
3084167
$6.39
3
Pin, Piston
3083838
$27.99
4
PISTON,(.25MM O/S) (0.25/.010mm O/S)
3084735
Unavailable
4
PISTON,(.50MM O/S) (0.50/.020mm O/S)
3084736
Unavailable
4
PISTON,STD. (Std)
3084734
Unavailable
5
BALANCER Substituted by 3087042
3084172
Unavailable
6
PLATE Substituted by 3086768
3084173
$25.40
7
BOLT, FLANGE Substituted by 3086769
3084174
Unavailable
8
GEAR, DRIVE *
3084156
$110.32
9
WASHER, GUIDE Substituted by 3086764
3084159
Unavailable
10
O RING
3084160
Unavailable
10
O RING
3084160
Unavailable
11
COLLAR Substituted by 3086763
3084158
Unavailable
11
COLLAR Substituted by 3086763
3084158
Unavailable
12
NUT, SLIT Substituted by 3086762
3084157
Unavailable
13
WASHER Substituted by 3086767
3083904
Unavailable
14
LOCKNUT
3083905
Unavailable
15
CRANKSHAFT #1,MAG SIDE
3084149
$216.99
15
CRANKSHAFT ASM. * (Incl. 15, 17, 18, 20, 21, 23)
3084776
Unavailable
16
KEY Substituted by 3081543
3080130
Unavailable
17
Spacer, Crank Pin
3084155
Unavailable
17
Spacer, Crank Pin
3084155
Unavailable
18
Bearing, Large End
3084154
Unavailable
19
Bearing, Small End
3084168
$31.99
20
Rod, Connecting
3084153
Unavailable
21
CRANKSHAFT #2,PTO SIDE
3084777
$149.99
22
SPACER #2 Substituted by 3086766 (0.3mm)
3084779
Unavailable
22
SPACER #1 Substituted by 3086765 (0.2mm)
3084778
Unavailable
23
PIN, CRANK #1
3084152
$78.39
