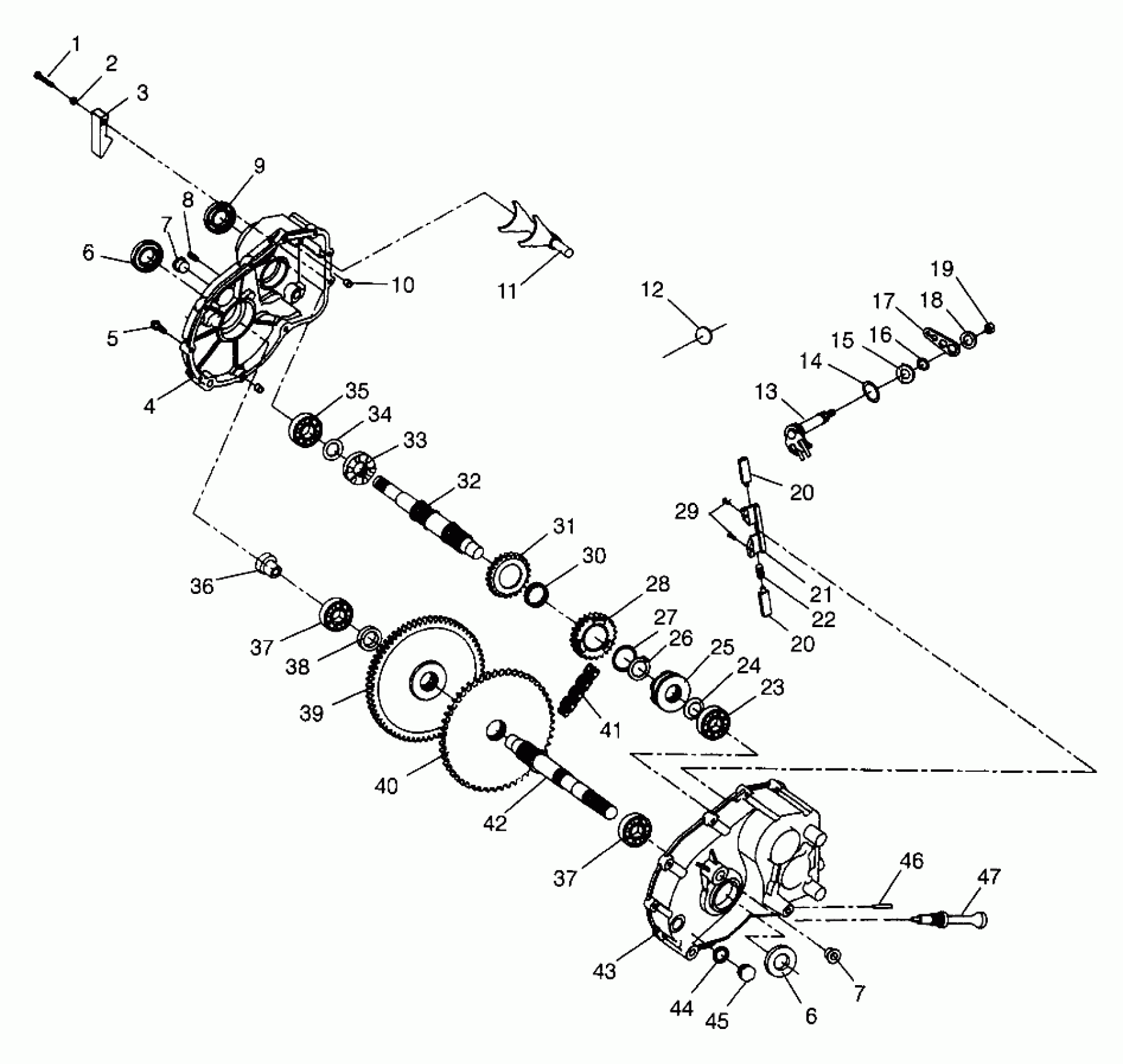

Polaris SCRAMBLER - W967840 GEARCASE Scrambler W967840 (4935823582C009) Diagram

#

Description
Price

-

GEARCASE ASM. (Incl. 1-35, 37-47)

1341167

Unavailable

1

BOLT,(10)

7512265

$3.97

2

WASHER(10)

7555827

$3.97

3

DAMPENER,CARBURETOR

5432082

Unavailable

4

GEARCASE, LH.

3233095

$298.99

5

Screw

3233026

$6.46

6

SEAL Substituted by 3233248

3233096

$32.37

6

SEAL Substituted by 3233248

3233096

$32.37

7

BUSHING,PIVOT

3233024

Unavailable

7

BUSHING,PIVOT

3233024

Unavailable

8

STUD

3233025

Unavailable

9

SEAL Substituted by 3233248

3233097

$32.37

10

PIPE, KNOCK

3233021

Unavailable

11

FORK,SHIFT,HR

3233231

Unavailable

12

PLUG

3233178

Unavailable

13

SHAFT,SHIFT,WELD/ASM.

3233232

Unavailable

14

O-RING

3233179

Unavailable

15

WASHER

3233119

Unavailable

16

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.76

17

BELLCRANK, HI/REV

3233155

Unavailable

18

Washer

3233054

$6.46

19

Nut

3233055

$3.32

20

PIN

3233031

$32.11

20

PIN

3233031

$32.11

21

BRACKET

3233030

$21.27

22

SPRING

3233233

Unavailable

23

BEARING-BALL,6307 C3,35X80X21

3233018

$27.78

24

WASHER

3233007

Unavailable

25

DOG,FWD.ENGAGEMENT

3233237

Unavailable

26

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.56

27

Washer

3233105

$7.14

28

SPKT,19T,FWD.

3233236

Unavailable

29

SCREW Substituted by 3233747

3233033

Unavailable

30

BEARING, NEEDLE

3233103

$31.75

31

GEAR,REVERSE

3233235

Unavailable

32

SHAFT, INPUT

3233181

$214.29

33

DOG,REV.ENGAGEMENT

3233234

Unavailable

34

WASHER

3233099

Unavailable

35

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.75

36

BUSHING,SPEEDO.DRIVE

5020741

$8.97

37

BEARING

3233020

$47.62

37

BEARING

3233020

$47.62

38

WASHER

3233108

Unavailable

39

GEAR, 65T

3233109

Unavailable

40

SPROCKET, 51T

3233121

Unavailable

41

CHAIN,SILENT,60P

3233111

$90.24

42

SHAFT, OUTPUT

3233190

Unavailable

43

GEARCASE,RH

3233238

Unavailable

44

Washer

3233035

Unavailable

45

PLUG Substituted by 3233448

3233114

$23.81

46

Vent

3233037

Unavailable

47

DIPSTICK Substituted by 3233478

3233115

$28.32
