GEARCASE/BRAKE and CHAIN COVER MOUNTING Scrambler W967840 (4935823582C003)

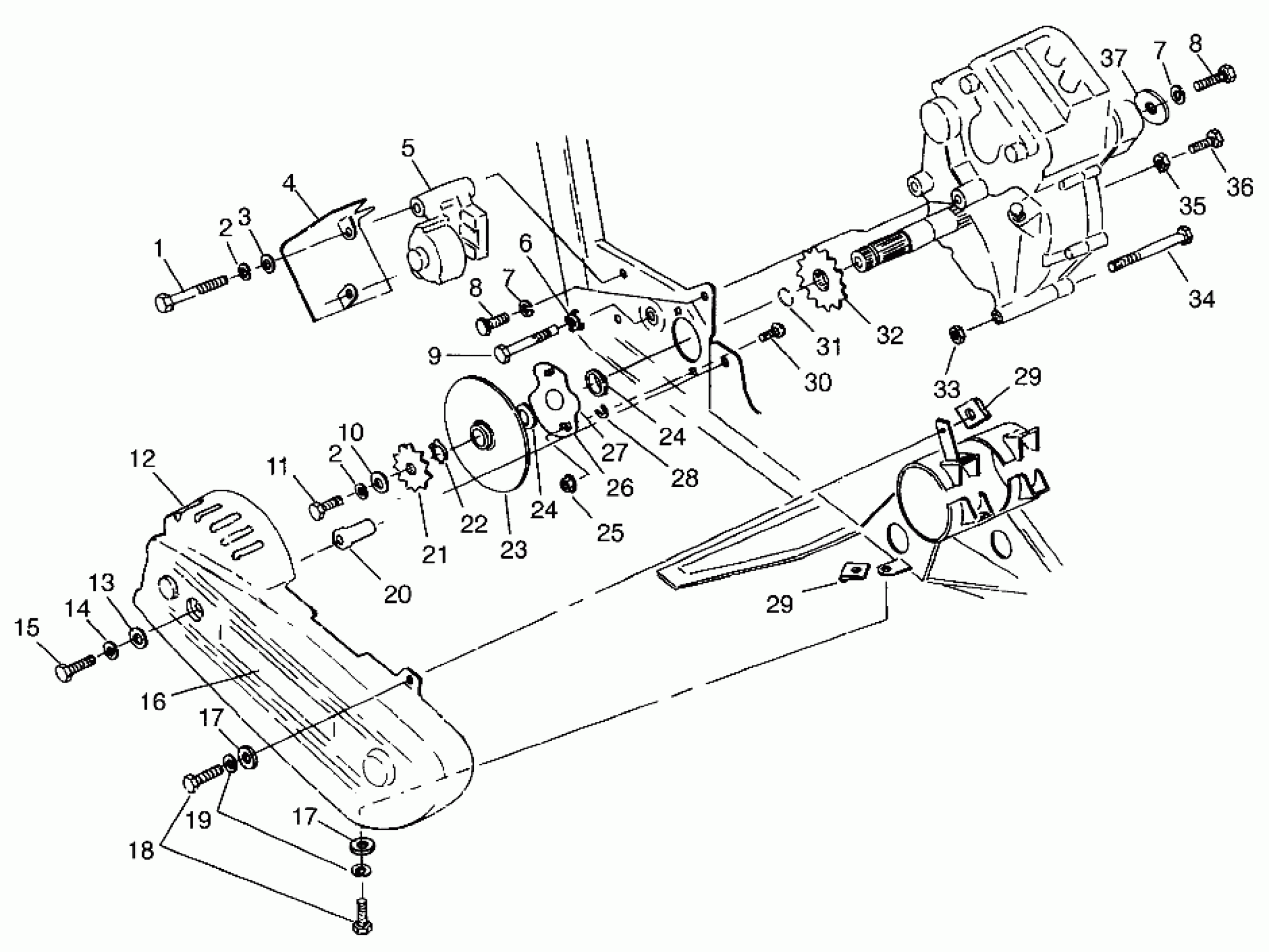

Polaris SCRAMBLER - W967840 GEARCASE/BRAKE and CHAIN COVER MOUNTING Scrambler W967840 (4935823582C003) Diagram
#
1
BOLT(10)
7515345
$5.59
2
LOCK WASHER(10)
7552901
$1.49
2
LOCK WASHER(10)
7552901
$1.49
3
WASHER-.344X.688X.063 FL-Y
7558402
$1.49
4
DECAL,BRAKE SHIELD
7075339
Unavailable
4
SHIELD,R.CALIPER,BLK.
5241018-067
Unavailable
5
CALIPER ASM,BRAKE Substituted by 1910227
1910175
Unavailable
6
Plate, Bolt Lock (See Pg., Ref.)
-------
Unavailable
7
WASHER(10)
7552603
$1.49
7
WASHER(10)
7552603
$1.49
8
BOLT(10)
7515522
$3.99
8
BOLT(10)
7515522
$3.99
9
Bolt, Shoulder (See Pg., Ref.)
-------
Unavailable
10
WASHER FLAT(10)
7555701
$3.99
11
BOLT(10)
7515321
$1.49
12
GUARD,CHAIN,CTR.
5431717
Unavailable
13
WASHER(10) Substituted by 7558402
7555770
Unavailable
14
WASHER(10)
7552606
$4.79
15
BOLT(10)
7515346
$5.59
16
Decal - Demand 4 Drive (See Pg., Ref.)
-------
Unavailable
17
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
17
WSHR-FL-.312X.734X.065-Y
7555843
$1.59
18
BOLT(10)
7512269
Unavailable
19
WASHER(10)
7552605
$5.27
20
SPACER, CHAIN GUARD
5333244
Unavailable
21
SPKT, 11T
3221058
$74.99
22
RING,RETAINING(10)
7710433
$4.79
23
DISC ASM,BRAKE
1910177
Unavailable
24
SEAL, BRAKE
3610026
$7.99
24
SEAL, BRAKE
3610026
$7.99
25
NUT,FLANGE LOCK(10)
7542449
$3.99
26
FITTING,LUBE.W/BALL CK.(10)
7080306
$3.19
27
BRG.ASM,O/P SHAFT
1590237
$84.99
28
SPACER,(10)
5210764
Unavailable
28
SHIM,.010,GEARCASE
5211065
Unavailable
28
SHIM,(.030)
5211517
Unavailable
29
NUT, SPEED(10)
7670060
$3.99
29
NUT, SPEED(10)
7670060
$3.99
30
BOLT,CARRIAGE(10)
7515484
Unavailable
31
RING,SNAP(10)
7710434
$3.99
32
SPKT,13T,SPLINED
3221041
$43.99
33
NUT LOCK(10)
7542403
$3.99
34
BOLT(10)
7515472
$2.39
35
NUT(10)
7542404
$1.59
36
BOLT(10)
7515485
$3.03
37
WASHER Substituted by 7555720
7555784
Unavailable
