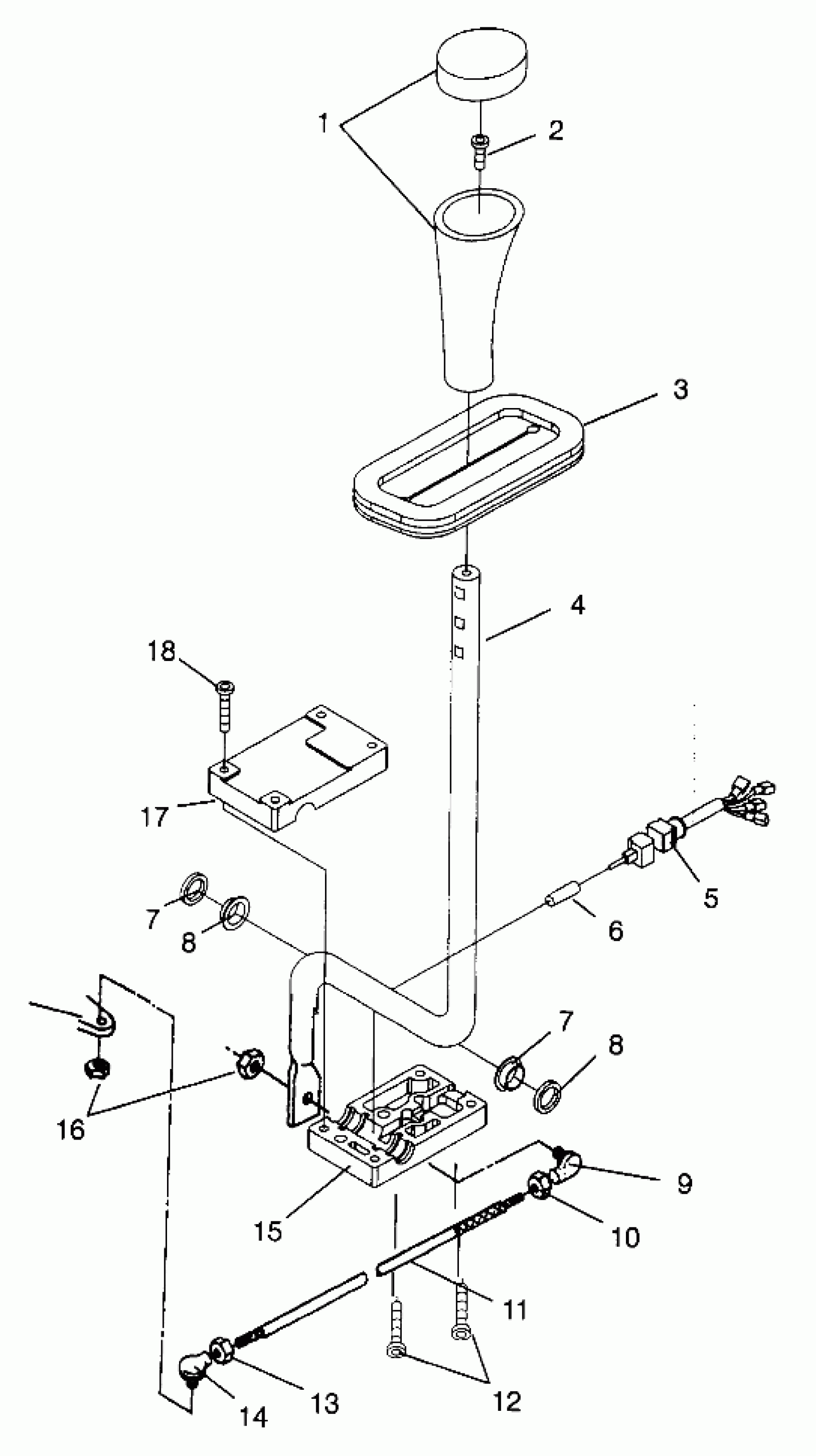

Polaris SCRAMBLER - W967840 GEAR SELECTOR Scrambler W967840 (4935823582C008) Diagram

#

Description
Price

-

SELECTOR ASM,GEAR

1341144

$126.98

1

KNOB ASM,HI/REV.

3233198

$35.19

2

SCREW,(10)

7512024

$4.79

3

GROMMET,HR SHIFTER

5411008

Unavailable

4

ROD,HR SHIFTER

3233166

Unavailable

5

SWITCH,HR SHIFTER Substituted by 3233210

3233167

Unavailable

6

SWITCH,SENSOR

3233168

Unavailable

7

BEARING

3233169

Unavailable

7

BEARING

3233169

Unavailable

8

O-RING,SHAFT [No Longer Available]

1610030

Unavailable

8

O-RING,SHAFT [No Longer Available]

1610030

Unavailable

9

ROD END,LH,6MM.

7061013

$65.99

10

NUT(10)

7546702

$1.49

11

ROD,SHIFT LINKAGE

5020802

Unavailable

12

BOLT, W/WASHER(10)

7515104

Unavailable

13

NUT(10)

7546701

$3.99

14

ROD END,RH,6MM.

7061014

$65.99

15

PLATE,BASE,HR SHIFTER

3233170

Unavailable

16

NUT(10) Substituted by 7546703

7546707

Unavailable

17

PLATE,TOP,HR SHIFTER

3233171

Unavailable

18

SCREW Substituted by 3233494

3233064

$1.83
