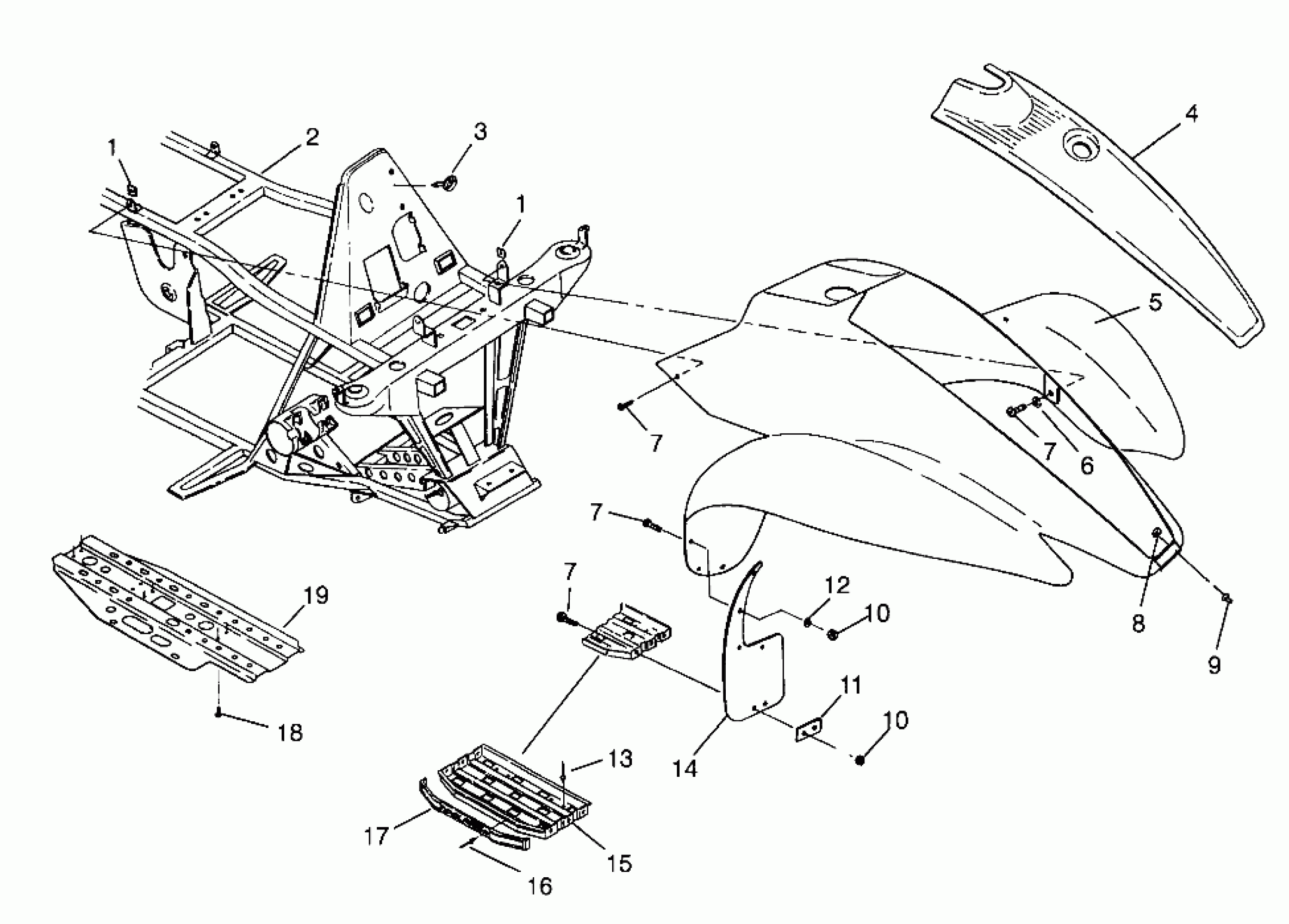

Polaris SCRAMBLER - W967840 FRONT CAB Scrambler W967840 (4935823582A005) Diagram

#

Description
Price

1

NUT, SPEED(10)

7670060

$3.99

1

NUT, SPEED(10)

7670060

$3.99

2

FRAME,MAIN,SCRAMBLER,BLK

1040506-067

$797.14

3

CLAMP,WIRE ROUTING(10)

7080409

$2.39

4

COVER,FR,BLK.

5431875-070

Unavailable

5

CAB ASM,FR.,WHITE Substituted by 2631925-133 (w/Warning Decals)

2631666-133

Unavailable

6

WASHER(10) Substituted by 7558301

7555776

Unavailable

7

BOLT, BLACK(10)

7512282

$1.49

7

BOLT, BLACK(10)

7512282

$1.49

7

BOLT, BLACK(10)

7512282

$1.49

7

BOLT, BLACK(10)

7512282

$1.49

8

WASHER, FLAT(10)

7558201

$5.79

9

RIVET [No Longer Available]

7621471

Unavailable

10

NUT-LOCK(10)

7542122

$1.49

10

NUT-LOCK(10)

7542122

$1.49

11

BRKT, LH MUD FLAP (3 Hole)

5211131-067

Unavailable

11

BRKT,RH MUD FLAP (2 Hole)

5211020-067

Unavailable

12

WASHER, FLAT(10)

7555859

$1.49

13

RIVET,INTERLOCK,B(50)

7661638

$1.49

14

MUDFLAP,LH,FRONT

5850113

$18.59

14

MUDFLAP,RH,FRONT

5850114

$13.99

15

FOOTPAD,LH,BLK.

1040410-067

Unavailable

15

FOOTPAD,RH,BLK.

1040411-067

Unavailable

16

RIVET,(50)

7661825

$1.49

17

Trim, Footrest

5431484

Unavailable

18

BOLT(10)

7512232

$1.49

19

GUARD,ROCK,ALUM,BLK.

5240784-067

Unavailable
