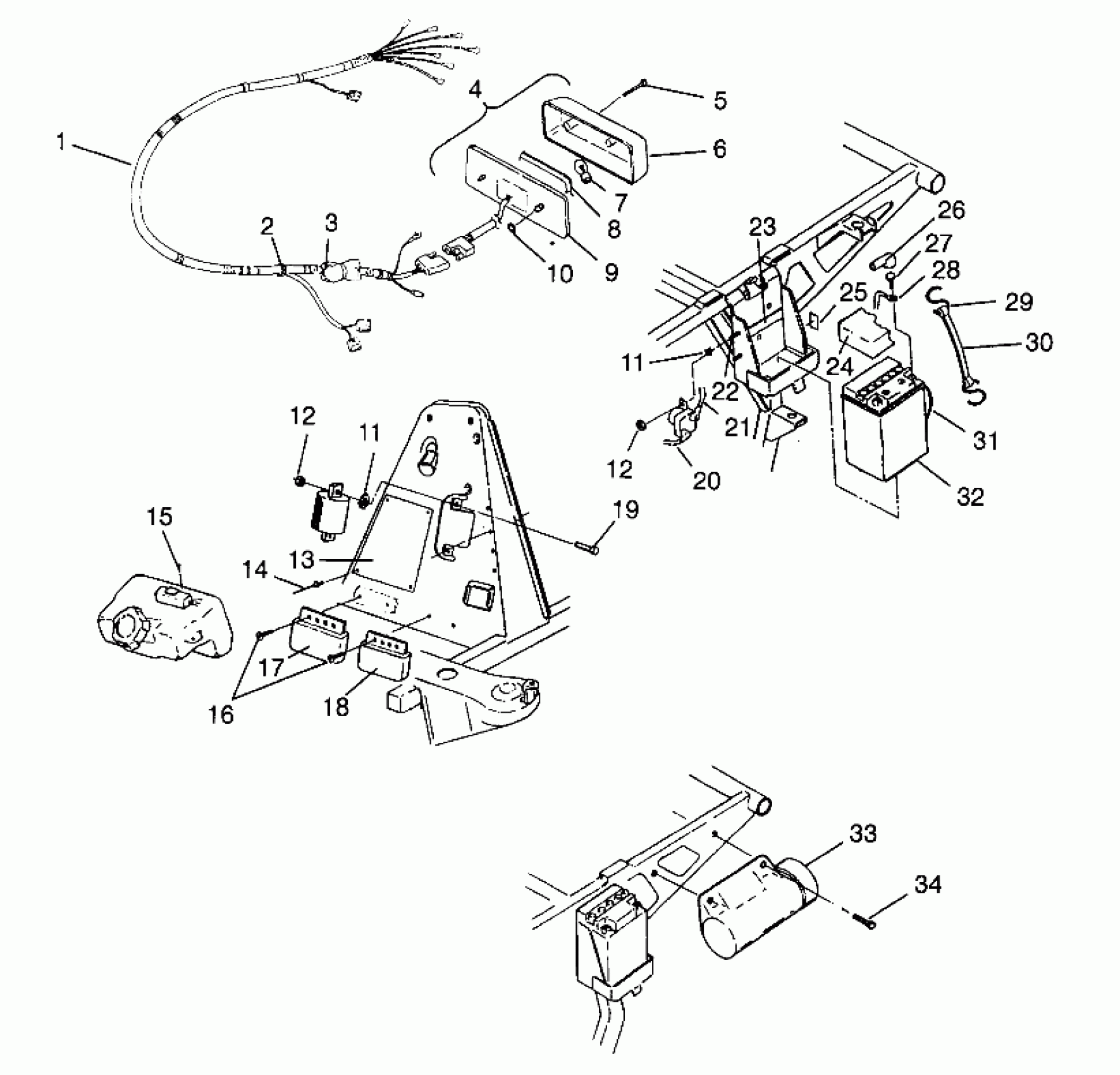

Polaris SCRAMBLER - W967840 ELECTRICAL/TAILLIGHT Scrambler W967840 (4935823582C007) Diagram

#

Description
Price

1

HARNESS,MAIN WIRE

2460495

Unavailable

2

CABLE-TIE,DIA12-50MM,WTHR-RES.

7080138

$2.41

3

CKT.BREAKER,20 AMP.

2434012

Unavailable

4

LIGHT,TAIL/BRAKE

2432038

$84.98

5

SCREW,TAIL LIGHT

7512088

$1.64

6

LENS,STOP&T/L.

4032085

$36.41

7

BULB,TAILLIGHT

4030043

$6.46

8

GASKET,T/L&STOP/L

4032086

Unavailable

9

BACKING,(STOP&TAIL)

4032087

Unavailable

10

CLIP, RETAINER(10)

7670093

Unavailable

11

WASHER(10)

7571602

$4.76

11

WASHER(10)

7571602

$4.76

12

NUT(10)

7541925

$0.79

12

NUT(10)

7541925

$0.79

13

BOARD,TERMINAL,150 ALT,ATV

4040063

Unavailable

14

RIVET,(50)

7621336

$1.59

15

SCREW(10)

7512076

$1.19

16

SCREW,(10)

7512024

$4.76

17

LIMITER,REV,LR49

4060114

Unavailable

18

RECTIFIER, VOLTAGE

4060087

Unavailable

19

SCREW(10)

7512007

$3.97

20

CABLE,SOLENOID/STARTER

4010064

Unavailable

21

CABLE,BATT/SOLENOID,RED

4010094

Unavailable

22

SCREW(10)

7512027

$1.19

23

PAD-BATTERY

5810290

$7.27

24

COVER,BATTERY

5431769

$15.37

25

DECAL, BATTERY [No Longer Available]

7072606

Unavailable

26

INSULATOR-CABLE

5410346

$7.73

27

BOLT,BATT,KIT(SHORT) (Short)

2200361

Unavailable

28

CABLE,BATT/ENG.,BLK.

4010095

Unavailable

29

HOOK-BATT.H/D(10)

7010032

$1.59

30

STRAP,BATTERY HOLDDOWN

5410424

$4.84

31

TUBE,BATTERY VENT

5432077

$8.89

32

Battery

4140006

$99.99

33

TOOLBOX ASM. Substituted by 2632221

2620087

Unavailable

33

LID COVER,TOOLBOX Substituted by 2620087

5431973

Unavailable

33

GASKET,TOOLBOX LID

5811079

Unavailable

34

SCREW(10)

7512252

Unavailable
