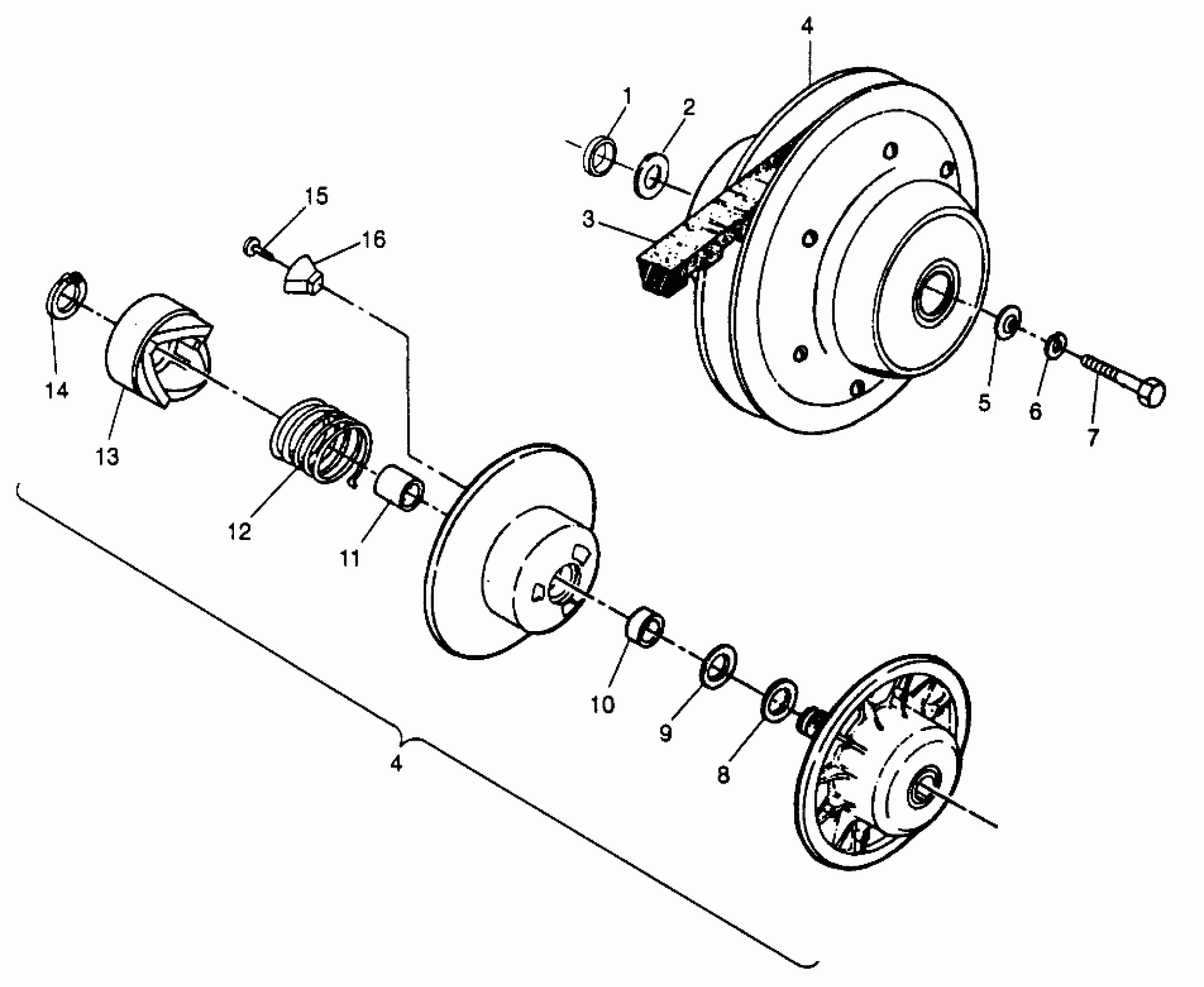

Polaris SCRAMBLER - W967840 DRIVEN CLUTCH Scrabler W967840 (4935823582C002) Diagram

#

Description
Price

1

SPACER,DRIVEN CLUTCH

5010379

Unavailable

2

BUSHING(10) (3 Max)

7556401

Unavailable

3

BELT-DRIVE(5) Substituted by 3211077

3211048

Unavailable

4

CLUTCH, DRIVEN Substituted by 1322180

1322158

Unavailable

4

CLUTCH, DRIVEN Substituted by 1322180

1322158

Unavailable

5

WASHER, DOMED(10)

5220646

$2.39

6

LOCK WASHER(10)

7552901

$1.49

7

SCR-HH-5/16-18X4 GR5 ZY3

7515327

$5.59

8

WASHER(10)

7555898

Unavailable

9

WASHER(10)

7556804

Unavailable

10

BUSHING, DRIVEN

3576504

$23.99

11

BUSHING-MOVEABLE, 1.0 DU

3576511

$27.99

12

SPRING,CLUTCH,(RED)

7041198

$52.60

13

RAMP, STATIONARY

5130738

Unavailable

14

RETAINING RING(10)

7714401

$2.63

15

BOLT(10)

7511854

$1.49

16

BUTTON,RAMP

5430766

Unavailable
