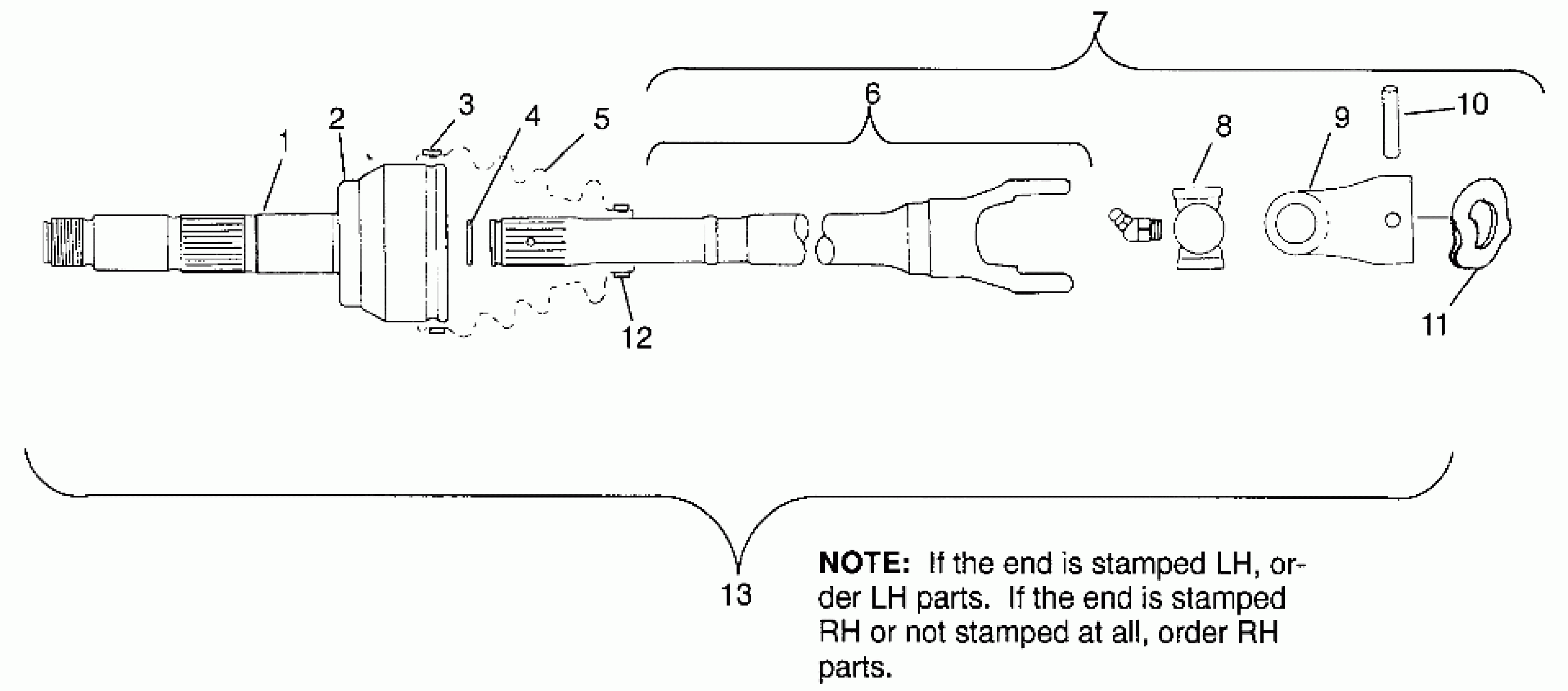

Polaris SCRAMBLER - W967840 CV JOINT - NEAPCO PARTS Scrambler W967840 (4935823582B004) Diagram

#

Description

Price

1

HSG.ASM,RH,CV,W/SLV. Substituted by 1380118

1380069

Unavailable

1

HSG.ASM,LH,CV,W/SLV. Substituted by 1380118

1380068

Unavailable

2

Sleeve, Seal

5222299

$32.37

3

Clamp, Band

3260121

$9.59

4

CIRCLIP,DRIVESHAFT,NEAPCO

7670092

$7.99

5

BOOT, CV.

3260120

Unavailable

6

SHAFT, WELD. (Incl. 4)

1380060

$229.99

7

CARDAN WELD. (Incl. 4, 6, 8, 9)

1380061

Unavailable

8

KIT,CROSS&BEARING

3260104

$43.99

9

Yoke

3260101

Unavailable

10

PIN-SPRING,5/16 X 1 5/8-Y

7661913

Unavailable

11

WASHER-WAVE(10)

7571605

$6.39

12

Clamp, Band

3260123

$7.99

13

SHAFT,RH,DRIVE ASM,LONG. Substituted by 2200960 NOTE: See Service Manual or Service Team Tips for further details before ordering.

1380063

$204.62

13

SHAFT,LH,DRIVE ASM,LONG. Substituted by 2200960

1380066

$204.62
