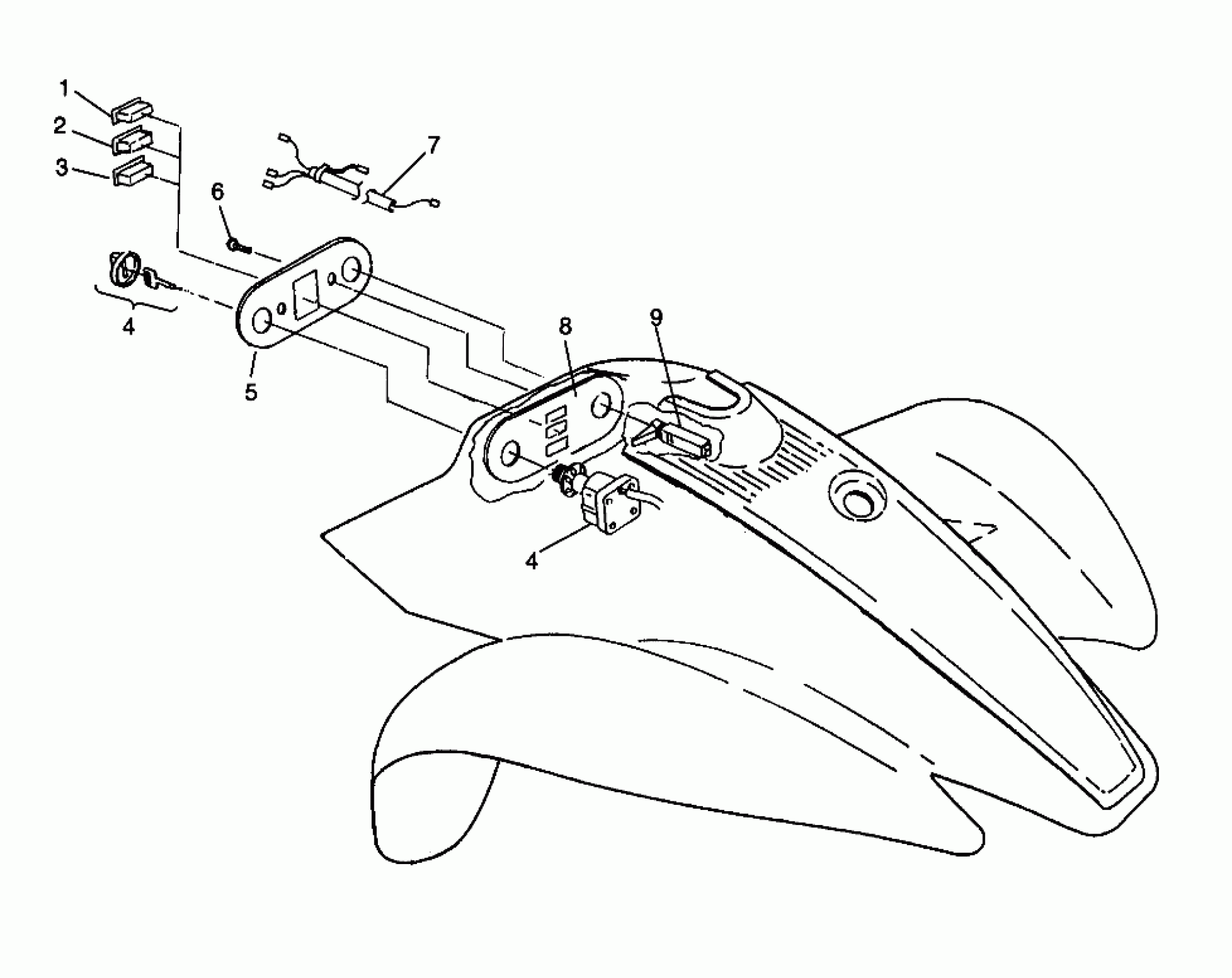

Polaris SCRAMBLER - W967840 CONTROL PANEL Scrambler W967840 (4935823582A014) Diagram

#

Description

Price

1

INDIC"LOW OIL&HI-BEAM."

4040052

$32.37

2

INDIC"NEUT./REV."

4040054

$32.37

3

INDIC"HOT TEMPERATURE"

4040053

$32.37

4

SWITCH, IGNITION (Incl. Key) NOTE: Ignition Key may be ordered by using the four digit number on the key.

4110194

Unavailable

4

SWITCH, IGNITION (Incl. Key) NOTE: Ignition Key may be ordered by using the four digit number on the key.

4110194

Unavailable

5

PANEL,CONTROL,OUTER

5431976

Unavailable

6

SCREW(10)

7512026

$1.19

7

HARNESS,CONTROL PANEL

2460521

Unavailable

8

PANEL,CONTROL,INNER

5431975

$17.30

9

CABLE, CHOKE

7080371

$97.13
