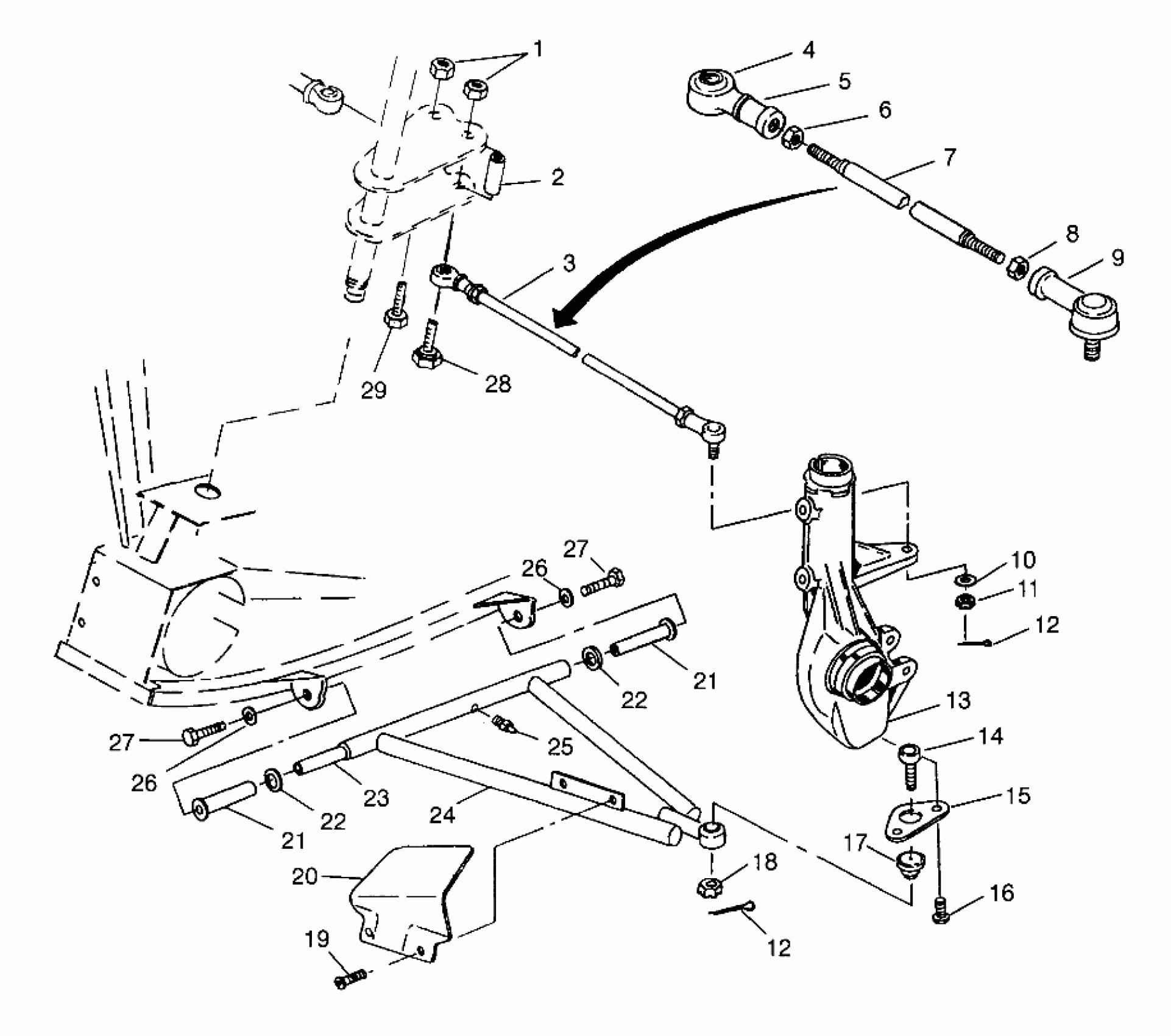

Polaris SCRAMBLER - W967840 A-ARM/STRUT MOUNTING Scrambler W967840 (4935823582B010) Diagram

#

Description
Price

1

NUT LOCK(10)

7542403

Unavailable

2

BUSHING

5333367

$6.59

3

TIE ROD ASM. Substituted by 1822478

1822202

$165.94

4

BOOT, SEAL, ROD END

5410540

$7.14

5

ROD END, RH Substituted by 1822179

7060149

Unavailable

5

ROD END ASM,/SEAL BOOT (Incl. 4)

1822179

Unavailable

6

NUT HEX(10)

7542401

$2.38

7

ROD, TIE

5020768

$53.32

8

NUT, LH, 10 MM.(10)

7546902

Unavailable

9

ROD END,LH,W/FTG,10 MM.

7060171

$60.70

10

WASHER(10)

7555806

$0.79

11

NUT, CASTLE(10)

7546904

$4.76

12

PIN COTTER(10)

7661203

$1.19

12

PIN COTTER(10)

7661203

$1.19

13

Asm., Hubstrut, RH (See Pg., Ref.)

----

Unavailable

13

Asm., Hubstrut, LH (See Pg., Ref.)

----

Unavailable

14

BALL JOINT Substituted by 7080673

7080364

$28.32

15

BRACKET-BALL JOINT

5211121

$32.37

16

SCR-1/4-20X5/8 FL HX SOC CP-Y

7512284

$1.19

17

Boot, Rubber

5410548

$4.84

18

NUT-3/8-24 HX CA GR5-Y

7542438

$1.59

19

SCREW(10)

7512084

$1.19

20

SHIELD,RH CV JOINT Substituted by 5431149-070

5431149

$24.27

20

SHIELD,LH CV JOINT Substituted by 5431150-070

5431150

$24.27

21

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

21

BUSHING,A-ARM,LONG. Substituted by 5433066

5431596

$5.56

22

BUSHING,A-ARM SPACER(10)

5020677

$10.32

22

BUSHING,A-ARM SPACER(10)

5020677

$10.32

23

Shaft, A-Arm

5020681

$33.24

24

KIT,A-FRAME,LH Substituted by 2200627

2200531

$151.99

24

KIT,A-FRAME,RH Substituted by 2200628

2200532

$151.99

25

ZERK,FITTING,THREADED(10)

7080433

$1.19

26

WASHER(10)

7552603

$0.79

26

WASHER(10)

7552603

$0.79

27

BOLT(10) Substituted by 7512492

7515458

$1.19

27

BOLT(10) Substituted by 7512492

7515458

$1.19

28

SCREW(10)

7515554

Unavailable

29

BOLT(10)

7515415

$1.19
